3-12 Magellan
®
8300/8400
Vertical Scan Window Replacement
The Vertical Scan Window is a replaceable part. Follow the instructions
below to remove and replace a standard or L-Platter Vertical Scan Win-
dow.
Standard Vertical Scan Window Removal
1. Lift up on the vertical bezel as shown in Figure 3-3a and tilt its top
up and away from the scanner as shown in Figure 3-3b.

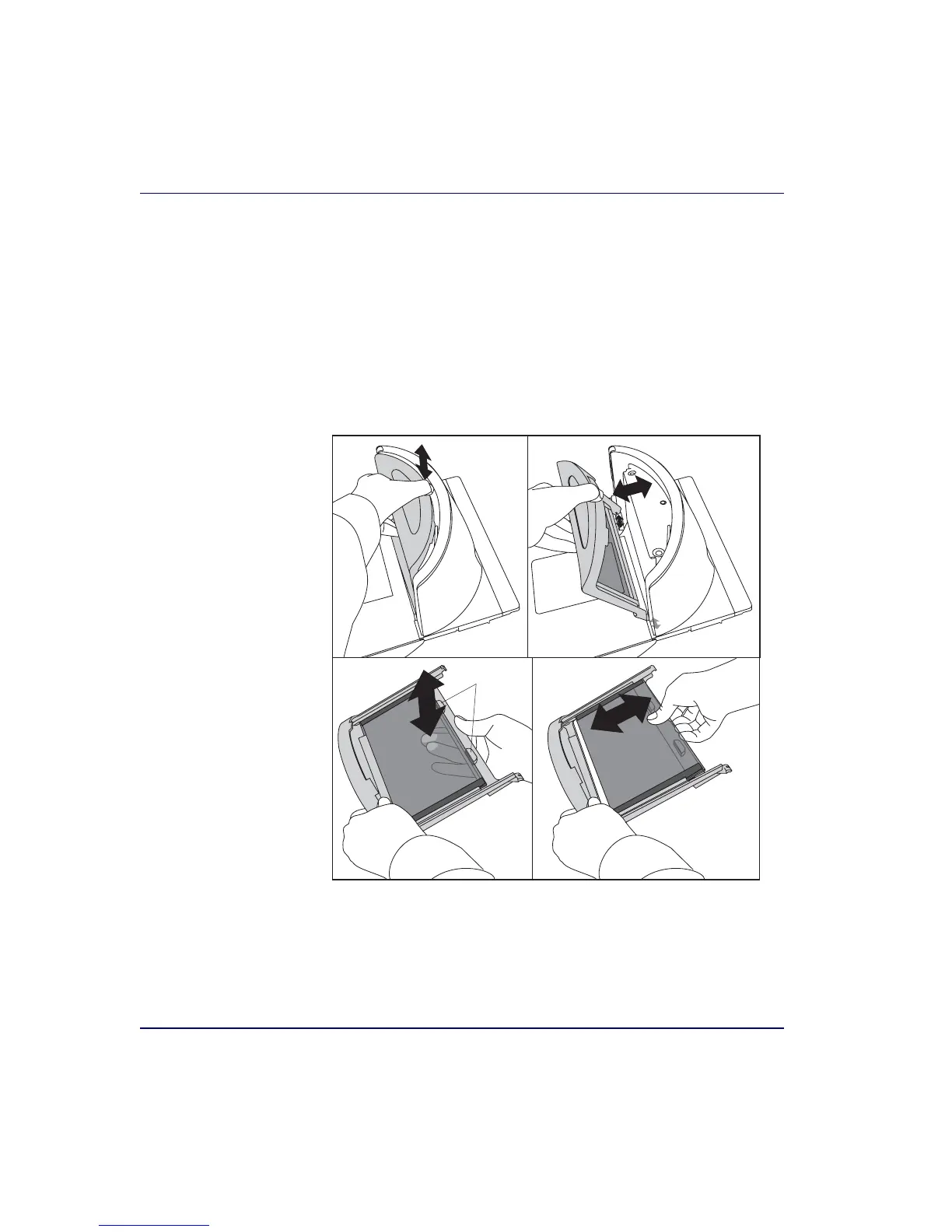

Figure 3-3. Removing/Reinstalling the Vertical Bezel
2. Press from the opposite side to release the edge of the Vertical Scan
Window from the two retention tabs shown in Figure 3-3c.
3. Slide the window from the bezel as shown in Figure 3-3d. Care-
fully dispose of any damaged glass.
ab
cd
Retention
Tab s
