Installation Overview
Product Reference Guide 2-23

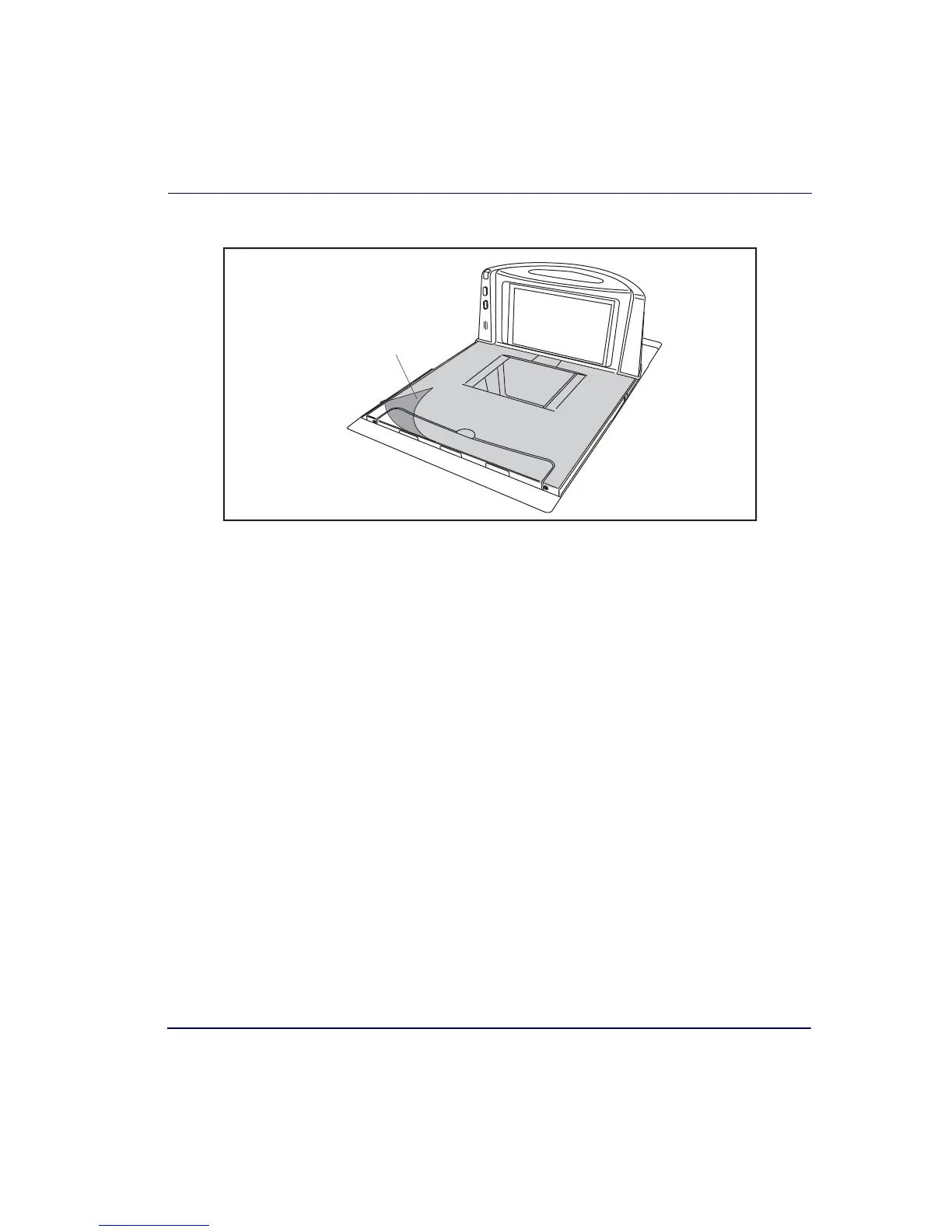

Figure 2-19. Remove Protective Vinyl
• Proceed to the Operational Verification instructions below.
Operational Verification
Follow these steps to ensure that your unit has arrived undamaged and is
fully functional before installing it in the counter and connecting it to
your POS system.
1.
EAS units ONLY: It could be necessary that EAS connections be
made previous to power-up. Reference the EAS system manufac-
turer’s instructions for more details.
2.
Scanner/Scale units ONLY: If the unit is a scanner/scale, connect the
Remote Scale Display to the proper connector on the unit’s connec-
tor panel (refer to Figure 2-23). Note that if the Remote Scale Dis-
play is not connected, a scanner power-up Selftest will sound a long,
low beep, and the number “8” will appear on the 7-segment display
indicating a remote display error. Power-down, connect a known-
good Remote Display to the appropriate port, and restart to correct
this problem. Alternatively, you can disable the Remote Display
using programming bar codes (see Chapter 6, Programming, for
more information).
3. Connect the power cable at the scanner, then at the AC outlet.
Protective vinyl
MUST be removed
from the
platter
before use.
