Set-Up & Installation
Product Reference Guide 2-35
If you have a scanner with no scale, there will be only one interface cable
to the POS terminal.
4. Connect the power cord to the scanner and route the other end
down through the checkstand to the AC power outlet. DO NOT
plug the power cord in at this time.

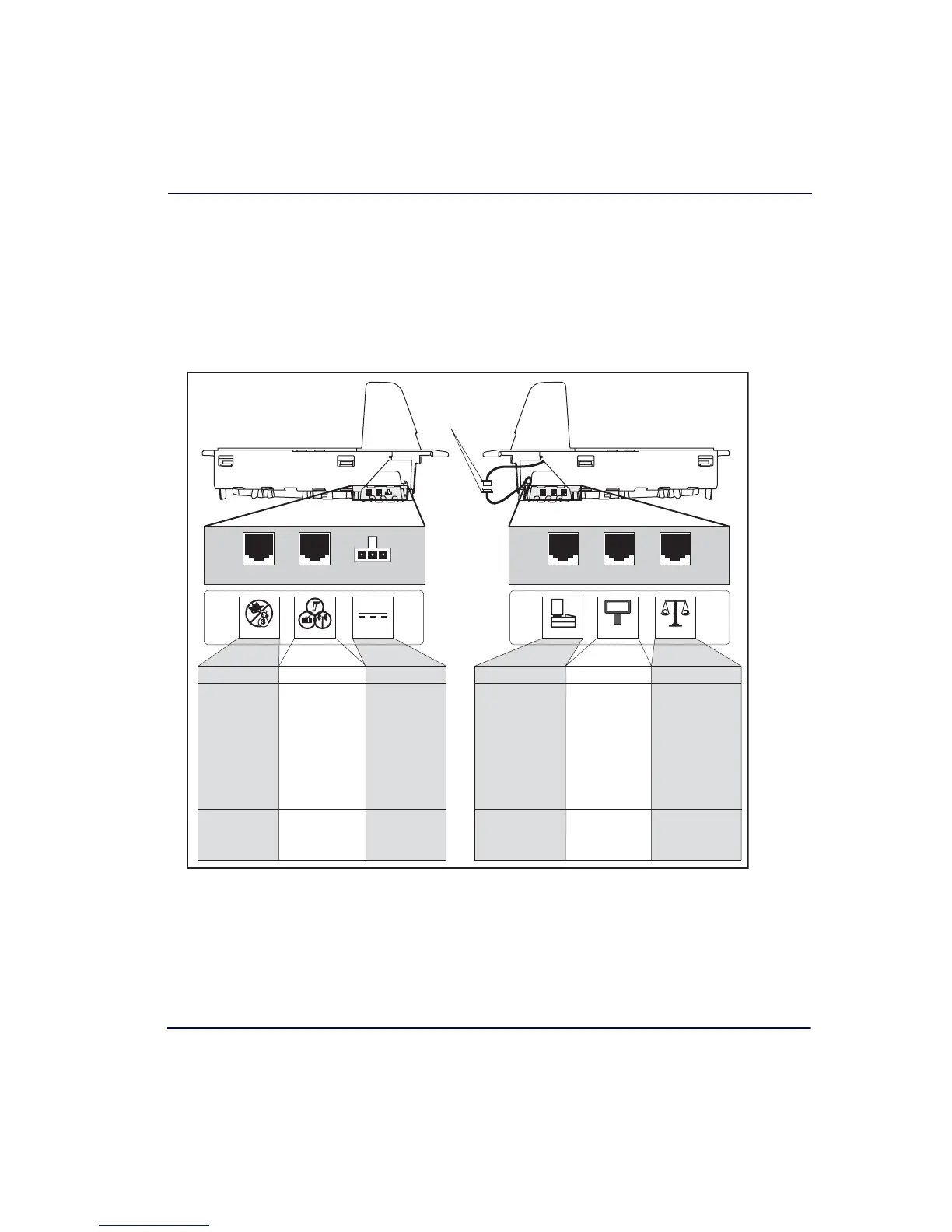

Figure 2-26. Connecting Cables to the Scanner/Scale
POS TERMINAL REMOTE DISPLAYAUXILIARY PORT SCALE HOSTEAS PORT
Connection to
this port is
Optional
Scale Data (dual
cable scanner/scale)
Drives Remote Display· Label Data
· Scale Data (for
single cable interfaces)
· Application Download
(where appropriate)
· Test Por t
· On Screen
Programming (OSP)
· Application Download
· RS-232 Handheld
Scanner Input
· Auxiliary RS-232
Label Data Output
Models with scale
only
Connection to
external EAS device.
Controls EAS
deactivation system.
Dual cable units only.
(Scale connection may
be handled through
POS Terminal port)
POS Terminal Remote DisplayAux. PortEAS Port Scale Host
0.00
POWER
AC Brick Input
OR
Power off Terminal
(POT) Brick Input
Power
Control Panel
Service Loop
Scanner Right Profile Scanner Left Profile
