Datalogic MX-E Series User Manual

MX-E Series Hardware Guide Processor I/O Connection
101 Datalogic S.r.l.
PNP NOTES:
4. Common Minus for input ports (External 12 to 24VDC Minus)
5. Common Plus for output ports (Not an output voltage source. External 12 to 24VDC Plus is required)
5
6
Yellow
Green
Input 4-
Input 5-
7
8
Blue
Purple
Input 6-
Input 7-
9
10
Gray
White
Input 8-
Input 9-
11
12
Pink
Light Green
Input 10-
Input 11-
13
14
Black/White
Brown/White
Input 12-
Input 13-
15
16
Red/White
Orange/White
Input 14-
Input 15-
17
18
Green/White
Blue/White
Input 16-
Output Plus (Note 5)
19
20
Purple/White
Red/Black
No Connection
No Connection
21 Orange/Black Output 1
22
23
Yellow/Black
Green/Black
Output 2
Output 3
24
25
Gray/Black
Pink/Black
Output 4
Output 5
26
27
Pink/Red
Pink/Blue
Output 6
Output 7
28
29
Pink/Green
Light Blue
Output 8
Output 9
30
31
Light Blue/Black
Light Blue/Red
Output 10
Output 11
32
33
Light Blue/Blue
Light Blue/Green
Output 12
Output 13
34
35
Gray/Red
Gray/Green
Output 14
Output 15
36
37
Purple/Black
Blue/Black
Output 16
Output Plus (Note 5)

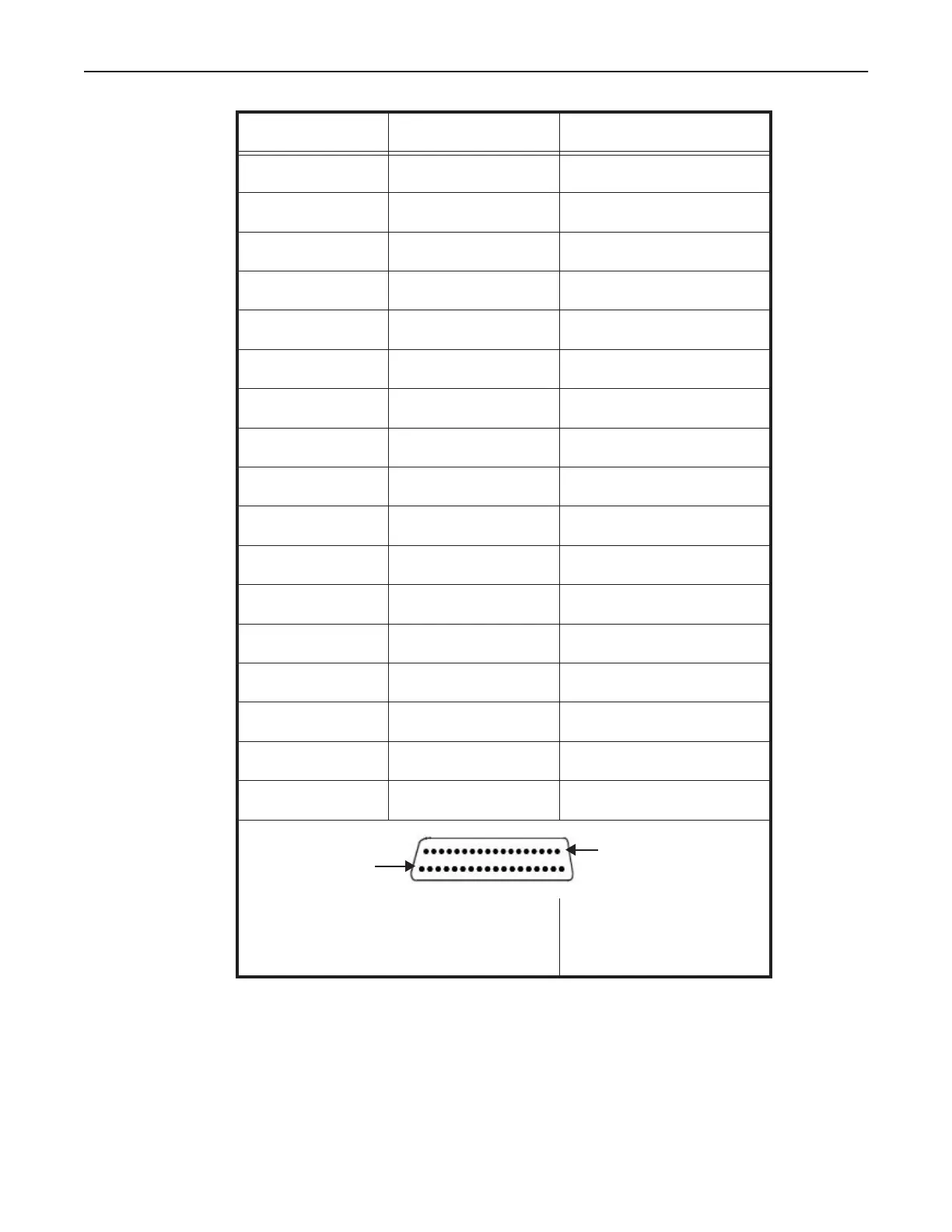

J1 (37 Pin "D" Sub Female)
AMP Part 747916-4
Part 244-0287
(Solder Side)
Connector or terminal
number
Color Code Signal Name
Pin 1
Pin 37
