Wand Emulation Interface

100

PowerScan

PBT7100 Cordless

Label Symbology Conversion

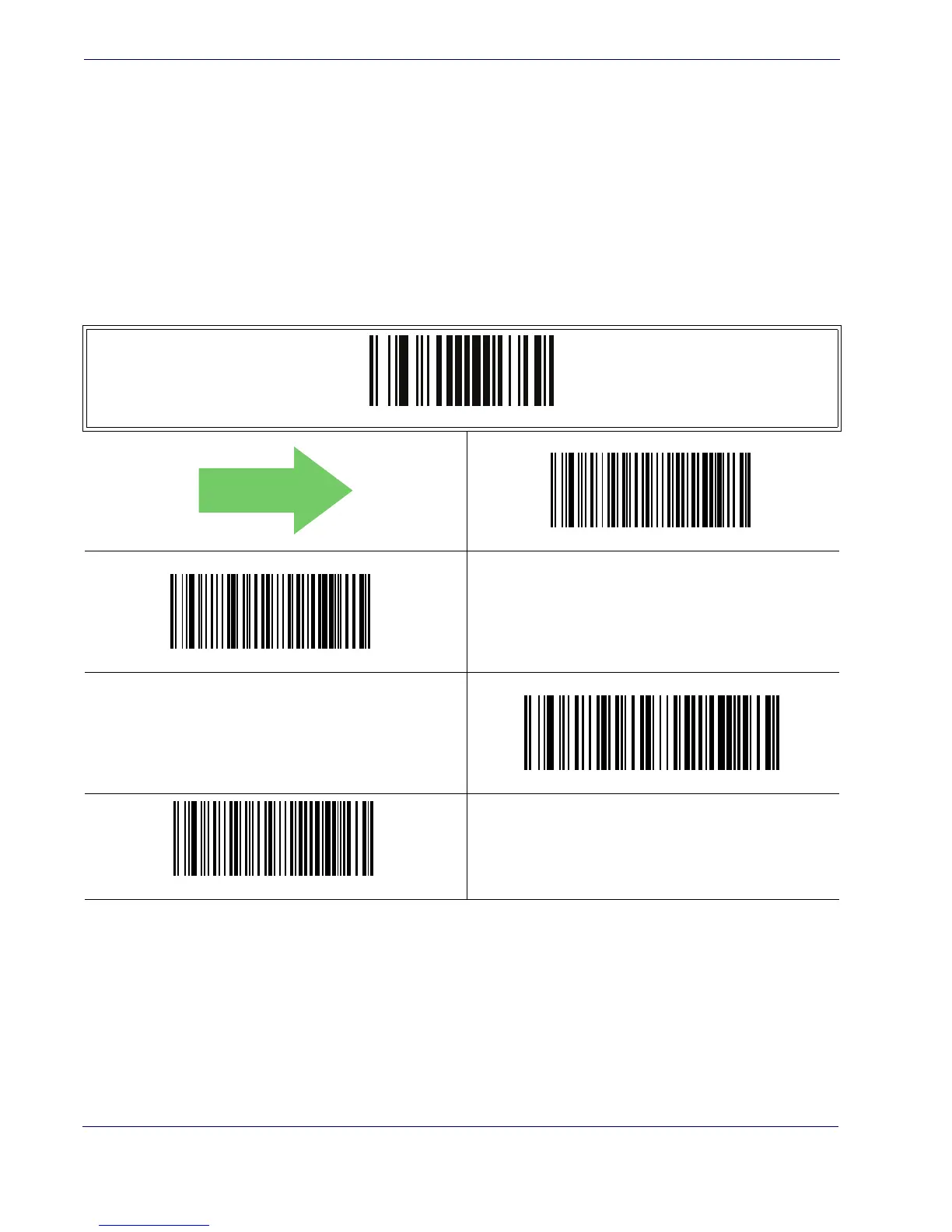

When this feature is enabled for the Wand Emulation interface, all barcode labels are

converted to a single symbology.

Options are:

• No conversion

• Convert to Code 39 symbology

• Convert to Code 39 Full ASCII

• Convert to Code 128 symbology

ENTER/EXIT PROGRAMMING MODE

Label Symbology Conversion = No conversion

Label Symbology Conversion = Convert to Code 39

Label Symbology Conversion = Convert to Code 39 Full ASCII

Label Symbology Conversion = Convert to Code 128
