Symbologies

326

PowerScan

PBT7100 Cordless

Codablock F — cont.

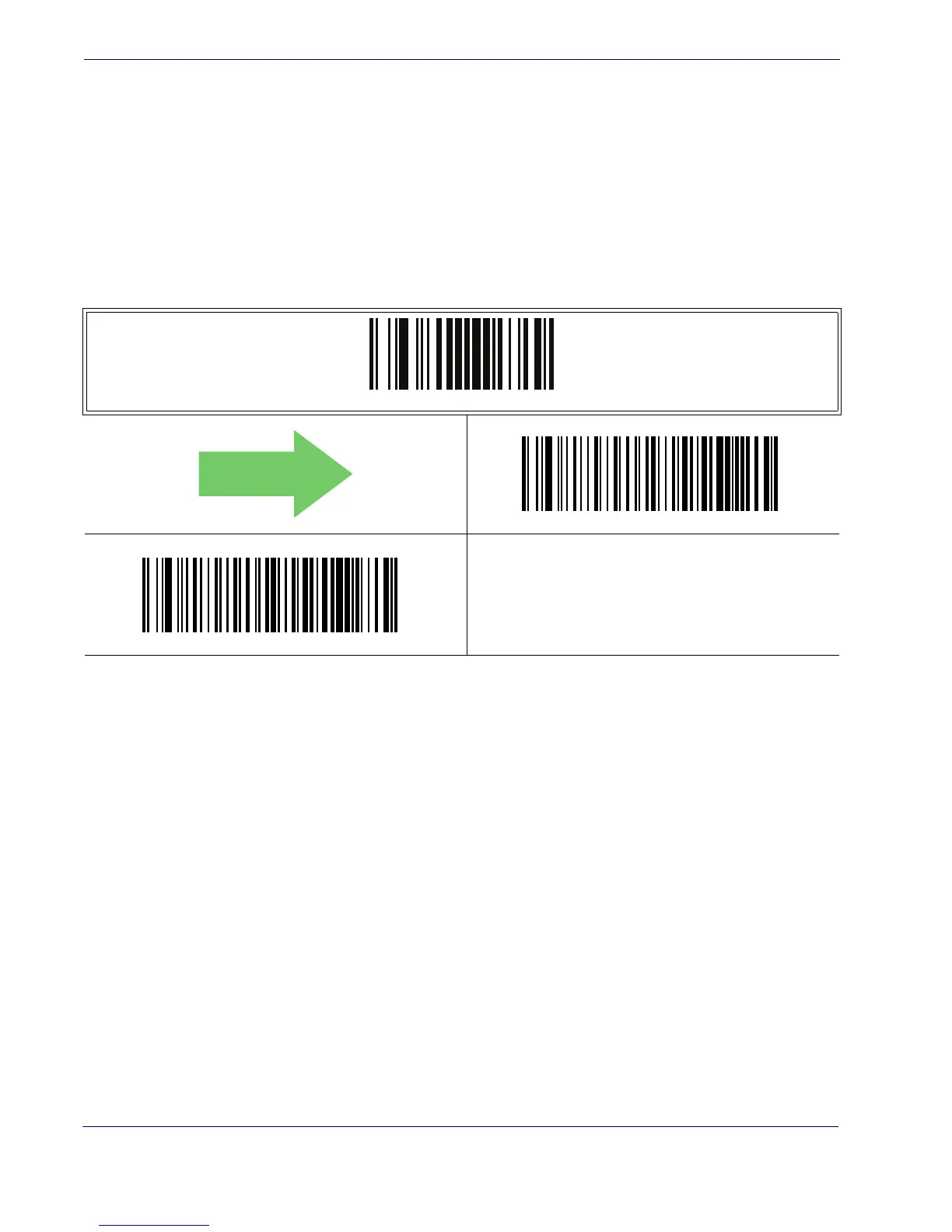

Codablock F Length Control

This feature specifies either variable length decoding or fixed length decoding for the

Codablock F symbology.

Variable Length —

For variable length decoding, a minimum and maximum length

may be set.

Fixed Length —

For fixed length decoding, two different lengths may be set.

ENTER/EXIT PROGRAMMING MODE

Codablock F Length Control = Variable Length

Codablock F = Fixed Length

DEFAULT
