BT Features

348

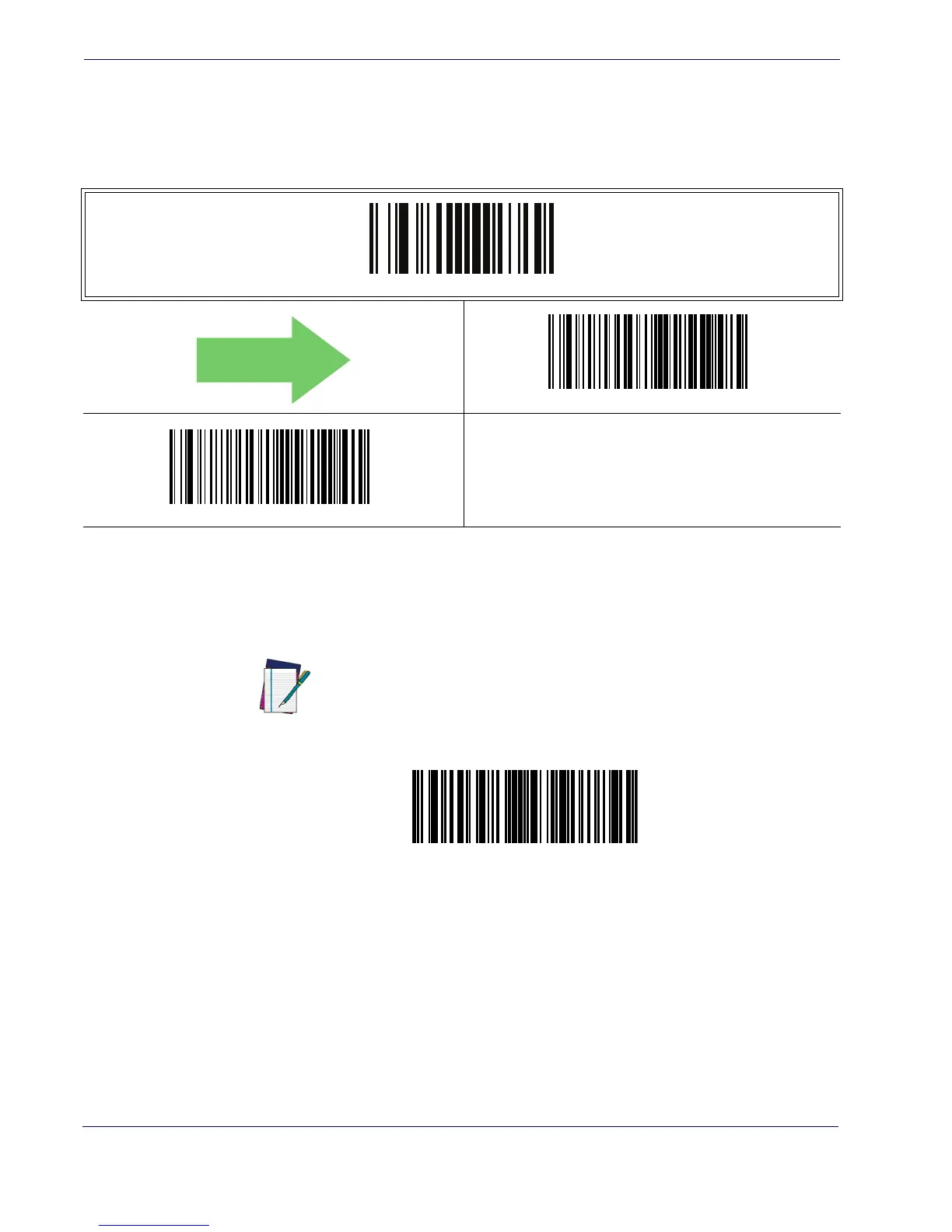

PowerScan

PBT7100 Cordless

Flash Update

BT Automatic Flash Update

This feature enables/disables the automatic flash update of a reader.

Request Flash Update

Scan this barcode to request a flash update from a Base Station

ENTER/EXIT PROGRAMMING MODE

BT Automatic Flash Update = Disable

BT Automatic Flash Update = Enable

DEFAULT

NOTE

Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunction with

this barcode.

Request Flash Update

Default Chapter1
- Product Reference Guide1
- Table of Contents3
