Symbologies

254

PowerScan

PBT7100 Cordless

Code 11 — cont.

Code 11 Check Character Calculation

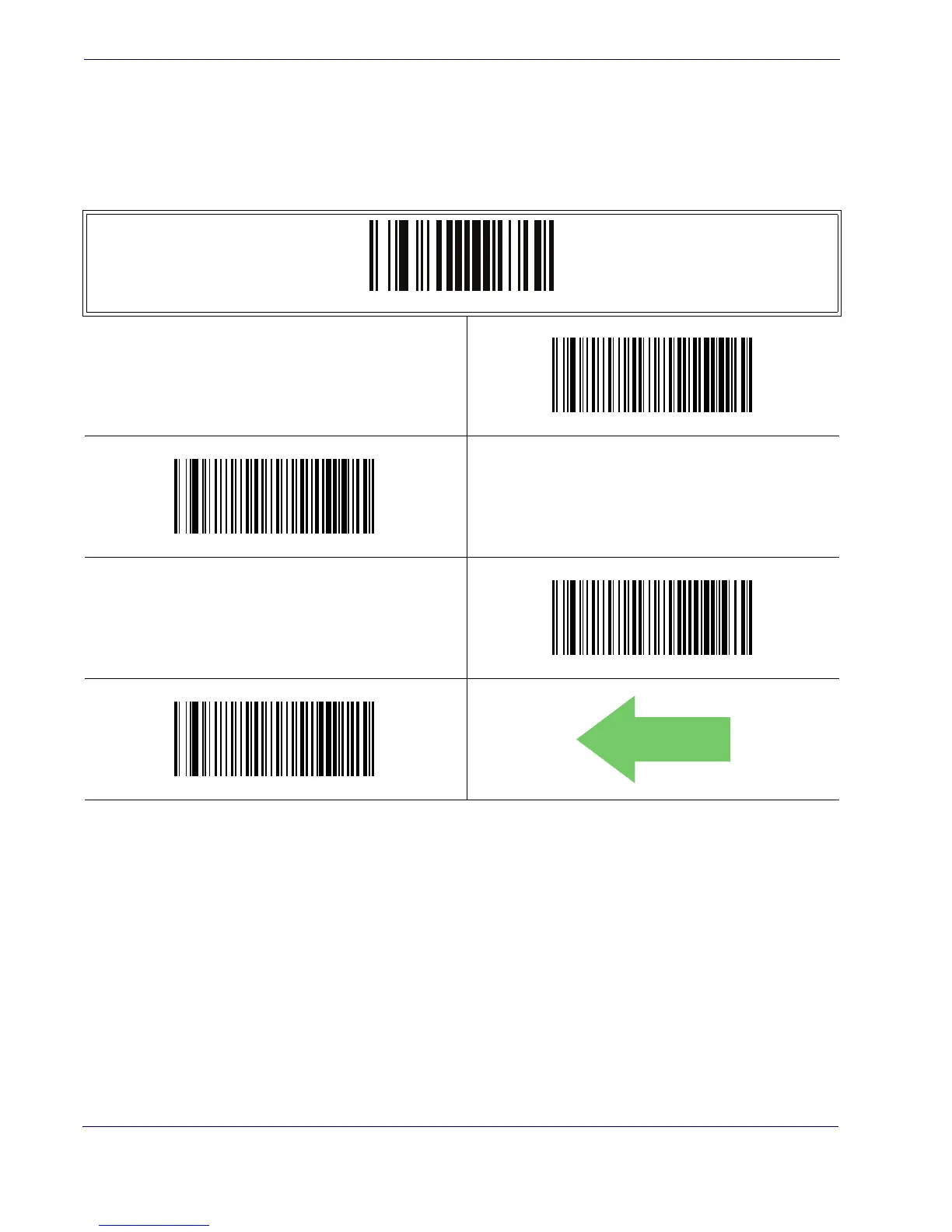

This option enables/disables calculation and verification of optional Code 11 check char-

acter.

ENTER/EXIT PROGRAMMING MODE

Code 11 Check Character Calculation = Disable

Code 11 Check Character Calculation = Check C

Code 11 Check Character Calculation = Check K

Code 11 Check Character Calculation = Check C and K

DEFAULT
