Symbologies

142

PowerScan

PBT7100 Cordless

EAN 8

The following options apply to the EAN 8 (Jan 8) symbology.

EAN 8 Enable/Disable

When disabled, the reader will not read EAN 8/JAN 8 barcodes.

EAN 8 Check Character Transmission

Enable this option to transmit the check character along with EAN 8 barcode data.

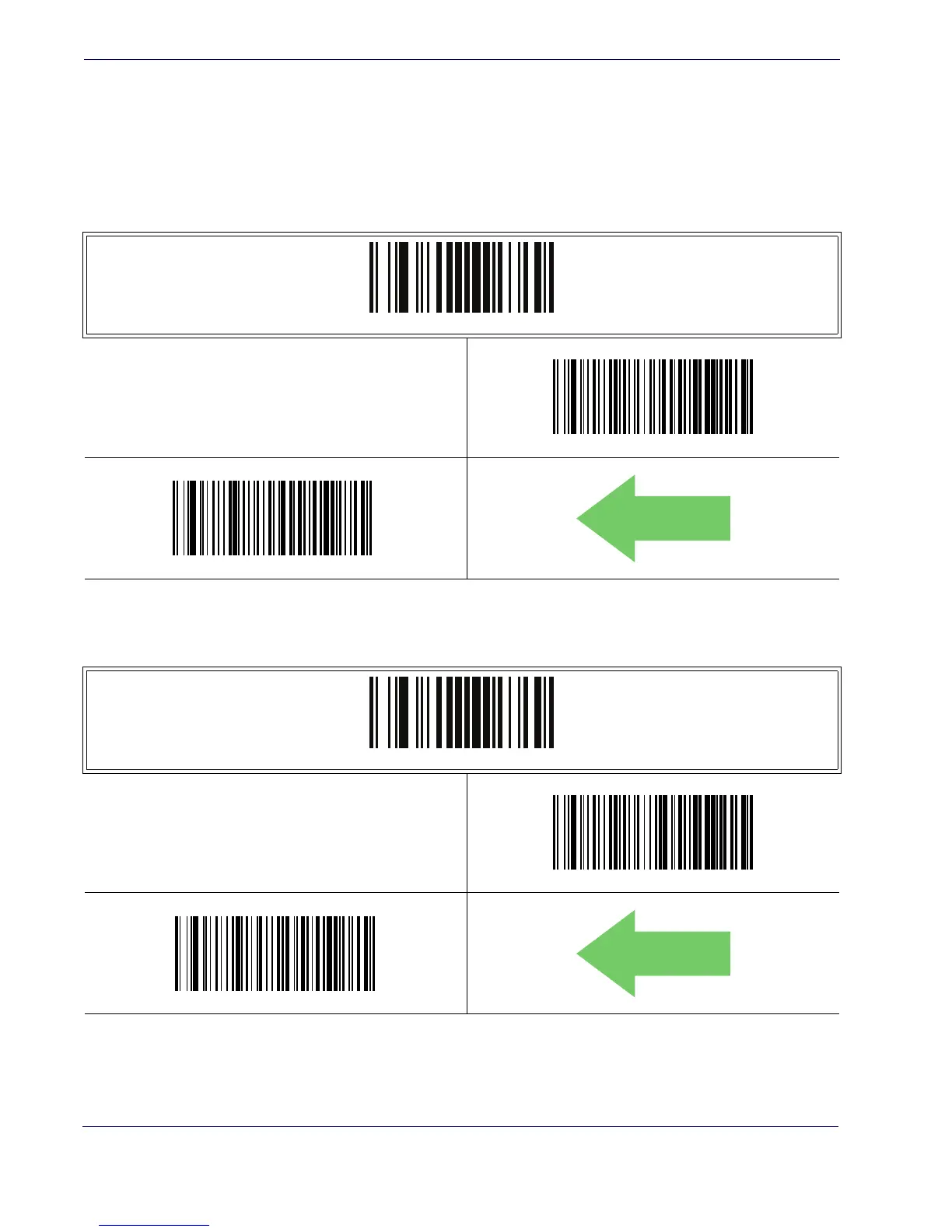

ENTER/EXIT PROGRAMMING MODE

EAN 8 = Disable

EAN 8 = Enable

DEFAULT

ENTER/EXIT PROGRAMMING MODE

EAN 8 Check Character Transmission = Don’t Send

EAN 8 Check Character Transmission = Send

DEFAULT

Default Chapter1
- Product Reference Guide1
- Table of Contents3
Chapter 1. Introduction11
- About this Guide11
- Manual Overview11
- Product Reference Guide11
- Manual Conventions12
- References12
- Technical Support13
Product Reference Guide13
Chapter 2. Getting Started15
- About the Reader15
- Unpacking15
- Product Reference Guide15
- Setting up the Reader and Base Station16
  - Install the Battery in the Reader16
  - Connect the Base Station16
- Linking the Reader to a Base Station17
- Product Reference Guide17
- Optional: Linking the Reader to a PC in Server Mode18
- Optional: Linking the Reader to a PC in Client Mode19
- Paging Feature19
- Programming19
- Resetting the Product Configuration to Defaults21
Chapter 3. Interfaces23
- Interface Selection23
- Configuring the Interface23
- Global Interface Features27
  - Host Commands - Obey/Ignore27
  - USB Suspend Mode28
Chapter 4. General Features29
- Double Read Timeout29
- Label Gone Timeout31
- Sleep Mode Timeout33
- LED and Beeper Indicators35
- Scanning Features43
- Flash on Time49
- Flash off Time51
- Stand Mode Sensitivity53
- Laser Pointer Control54
- Laser Pointer Period55
- Green Spot Duration56
Chapter 5. RS-232 ONLY Interface57
- Introduction57
- RS-232 Standard Factory Settings57
- Baud Rate57
- Data Bits59
- Stop Bits60
- Parity61
- Handshaking Control62
Chapter 6. RS-232/USB-Com Interfaces63
- Introduction63
- Standard Factory Settings63
- Intercharacter Delay64
- Beep on ASCII BEL66
- Beep on Not on File66
- ACK NAK Options67
- Indicate Transmission Failure77
- Disable Character78
- Enable Character80
Chapter 7. Keyboard Interface83
- Introduction83
- Standard Factory Settings83
- Scancode Tables83
- Country Mode84
- Caps Lock State87
- Numlock87
- Send Control Characters88
- Wedge Quiet Interval89
- Intercharacter Delay91
- Intercode Delay93
- USB Keyboard Speed95
Chapter 8. USB-OEM Interface97
- Introduction97
- Standard Factory Settings97
- USB-OEM Device Usage98
- USB-OEM Interface Options99
Chapter 9. IBM 46XX Interface101
- Introduction101
- IBM Standard Factory Settings101
- 46Xx Number of Host Resets102
- Transmit Labels in Code 39 Format105
- IBM 46XX Interface Options106
Chapter 10. Wand Emulation Interface107
- Introduction107
- Wand Emulation Standard Factory Settings107
- Wand Idle State107
- Wand Polarity108
- Wand Signal Speed109
- Label Symbology Conversion110
- Transmit Noise111
Chapter 11. Data Editing113
- Data Editing Overview113
- Please Keep in Mind114
- Global Prefix/Suffix114
  - Example: Setting a Prefix114
- Global AIM ID116
- Gs1-128 Aim ID118
- Label ID119
- Case Conversion133
- Character Conversion134
Chapter 12. Symbologies137
- Introduction137
  - Symbologies137
- Standard Factory Settings for Symbologies138
- Disable All Symbologies138
- Coupon Control139
- Upc-A140
  - UPC-A Enable/Disable140
  - UPC-A Check Character Transmission140
  - Expand UPC-A to EAN-13141
  - UPC-A Number System Character Transmission141
  - In-Store Minimum Reads142
- Upc-E143
  - UPC-E Enable/Disable143
  - UPC-E Check Character Transmission143
  - Expand UPC-E to EAN-13144
  - Expand UPC-E to UPC-A144
  - UPC-E Number System Character Transmission145
  - UPC-E Minimum Reads146
- GTIN Formatting147
- Ean 13148
  - EAN 13 Enable/Disable148
  - EAN 13 Check Character Transmission148
  - EAN-13 Flag 1 Character149
  - EAN-13 ISBN Conversion150
  - ISSN Enable/Disable150
  - EAN 13 Minimum Reads151
- Ean 8152
  - EAN 8 Enable/Disable152
  - EAN 8 Check Character Transmission152
  - Expand EAN 8 to EAN 13153
  - EAN 8 Minimum Reads154
- UPC/EAN Global Settings155
  - UPC/EAN Decoding Level155
  - UPC/EAN Correlation157
- UPC/EAN Reconstruction157
- UPC/EAN Price Weight Check158
- UPC-A Minimum Reads159
- Add-Ons160
  - Optional Add-Ons160
  - Optional Add-On Timer162
  - Optional GS1-128 Add-On Timer165
  - P2 Add-Ons Minimum Reads168
  - P5 Add-Ons Minimum Reads169
  - GS1-128 Add-Ons Minimum Reads170
    - GS1 Databar TM Omnidirectional171
  - GS1 Databar Omnidirectional Enable/Disable171
  - GS1 Databar Omnidirectional GS1-128 Emulation171
  - GS1 Databar Omnidirectional Minimum Reads172
- GS1 Databar TM Expanded173
  - GS1 Databar Expanded Enable/Disable173
  - GS1 Databar Expanded GS1-128 Emulation173
  - GS1 Databar Expanded Minimum Reads174
  - GS1 Databar Expanded Length Control175
  - GS1 Databar Expanded Set Length 1176
  - GS1 Databar Expanded Set Length 2178
- GS1 Databar TM Limited180
  - GS1 Databar Limited Enable/Disable180
  - GS1 Databar Limited GS1-128 Emulation180
  - GS1 Databar Limited Minimum Reads181
- Code 39182
  - Code 39 Enable/Disable182
  - Code 39 Check Character Calculation183
  - Code 39 Check Character Transmission184
  - Code 39 Start/Stop Character Transmission184
  - Code 39 Full ASCII185
  - Code 39 Quiet Zones186
  - Code 39 Minimum Reads187
  - Code 39 Decoding Level188
  - Code 39 Length Control190
  - Code 39 Set Length 1191
  - Code 39 Set Length 2193
  - Code 39 Interdigit Ratio195
  - Code 39 Character Correlation197
  - Code 39 Stitching198
- Code 32 (Italian Pharmaceutical)199
  - Code 32 Enable/Disable199
  - Code 32 Feature Setting Exceptions199
  - Code 32 Check Character Transmission200
  - Code 32 Start/Stop Character Transmission200
- Code 39 CIP (French Pharmaceutical)201
  - Code 39 CIP Enable/Disable201
- Code 128201
  - Code 128 Enable/Disable201
  - Expand Code 128 to Code 39202
  - Code 128 Check Character Transmission202
  - Code 128 Function Character Transmission203
  - Code 128 Sub-Code Change Transmission204
  - Code 128 Quiet Zones205
  - Code 128 Minimum Reads206
  - Code 128 Decoding Level207
  - Code 128 Length Control209
  - Code 128 Set Length 1210
  - Code 128 Set Length 2212
  - Code 128 Character Correlation214
    - Code 128 Stitching215
  - Gs1-128216
    - GS1-128 Enable216
  - Interleaved 2 of 5 (I 2 of 5)217
  - Interleaved 2 of 5 CIP HR230
    - Interleaved 2 of 5 CIP HR Enable/Disable230
  - Datalogic 2 of 5230
  - Codabar242
  - ABC Codabar260
  - Code 11263
- Standard 2 of 5278
  - Standard 2 of 5 Enable/Disable278
  - Standard 2 of 5 Check Character Calculation279
  - Standard 2 of 5 Check Character Transmission279
  - Standard 2 of 5 Minimum Reads280
  - Standard 2 of 5 Decoding Level280
  - Standard 2 of 5 Length Control281
  - Standard 2 of 5 Set Length 1282
  - Standard 2 of 5 Set Length 2284
  - Standard 2 of 5 Character Correlation286
  - Standard 2 of 5 Stitching287
- Industrial 2 of 5288
  - Industrial 2 of 5 Enable/Disable288
  - Industrial 2 of 5 Check Character Calculation288
  - Industrial 2 of 5 Check Character Transmission289
  - Industrial 2 of 5 Length Control290
  - Industrial 2 of 5 Set Length 1291
  - Industrial 2 of 5 Set Length 2293
  - Industrial 2 of 5 Minimum Reads295
  - Industrial 2 of 5 Stitching296
  - Industrial 2 of 5 Character Correlation296
- Iata297
  - IATA Enable/Disable297
  - IATA Check Character Transmission297
- Isbt 128298
  - ISBT 128 Concatenation298
  - ISBT 128 Concatenation Mode299
  - ISBT 128 Dynamic Concatenation Timeout300
  - ISBT 128 Force Concatenation301
  - ISBT 128 Advanced Concatenation Options301
- Msi302
  - MSI Enable/Disable302
  - MSI Check Character Calculation303
  - MSI Check Character Transmission304
  - MSI Length Control304
  - MSI Set Length 1305
  - MSI Set Length 2307
  - MSI Minimum Reads309
  - MSI Decoding Level310
- Plessey312
  - Plessey Enable/Disable312
  - Plessey Check Character Calculation313
  - Plessey Check Character Transmission314
  - Plessey Length Control314
  - Plessey Set Length 1315
  - Plessey Set Length 2317
  - Plessey Minimum Reads319
  - Plessey Decoding Level320
  - Plessey Stitching321
  - Plessey Character Correlation322
- Code 93322
  - Code 93 Enable/Disable322
  - Code 93 Check Character Calculation323
  - Code 93 Check Character Transmission324
  - Code 93 Length Control324
  - Code 93 Set Length 1325
  - Code 93 Set Length 2327
  - Code 93 Minimum Reads329
  - Code 93 Decoding Level330
  - Code 93 Quiet Zones332
    - Code 93 Stitching333
    - Code 93 Character Correlation333
  - Codablock F334
  - Code 4341
  - Code 5343
  - Code 4 and Code 5 Common Configuration Items345
    - Code 4 and 5 Decoding Level345
    - Code 4 and Code 5 Minimum Reads347
  - Follett 2 of 5348
    - Follett 2 of 5 Enable/Disable348
Chapter 13. BT Features349
- Introduction349
- Standard Factory Settings349
- BT Beeper Features350
- Flash Update358
  - BT Automatic Flash Update358
  - Request Flash Update358
- Configuration Update359
- Battery Charge Mode361
- Powerdown Timeout362
- BT Poll Rate364
- Batch Features366
- BT Security Features369
  - BT Pin Code369
  - BT Security Mode372
- Linking the Reader373
- Optional: Linking a Powerscan 7000 Reader to a PBT7100 Base Station373
- BT Address Stamping374
  - Source Radio Address Transmission374
  - Source Radio Address Delimiter Character375
Appendix A. Technical Specifications377
- Standard Cable Pinouts380
Appendix B. Standard Defaults381
Appendix C. LED and Beeper Indications395
- General Functions - LED and Beeper Indications396
- BT Beeper Indications397
- BT LED Indications398
- Error Codes399
Appendix D. Sample Barcodes401
- Upc-A401
- Interleaved 2 of 5401
- Codabar402
- Code 11402
- Databar (RSS)403
  - Databar-14403
Appendix E. Keypad405
Appendix F. Scancode Tables409
- Control Character Emulation409
  - Single Press and Release Keys409
- Interface Type PC at PS/2 or USB-Keyboard410
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode412
- Digital Interface414
- Ibm31Xx 102-Key416
- Ibm Xt418
- Microsoft Windows Codepage 1252420
Index421
