Add-Ons

Product Reference Guide

159

Add-Ons — cont.

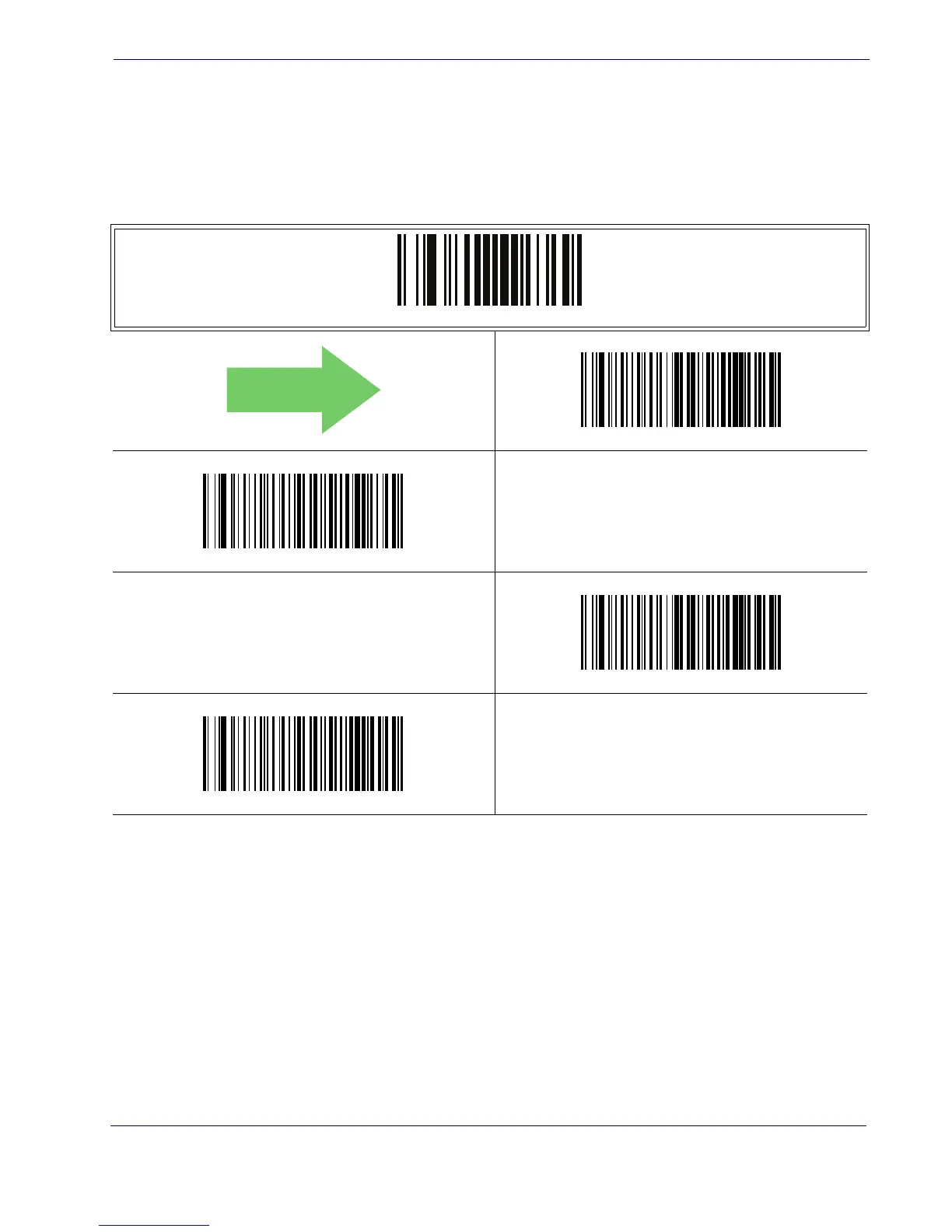

P5 Add-Ons Minimum Reads

This feature specifies the minimum number of times a P5 add-on must be read before it

is marked as valid and then combined with a base label.

ENTER/EXIT PROGRAMMING MODE

P5 Add-Ons Minimum Reads = 1

P5 Add-Ons Minimum Reads = 2

P5 Add-Ons Minimum Reads = 3

P5 Add-Ons Minimum Reads = 4

DEFAULT
