Symbologies

332

PowerScan

PBT7100 Cordless

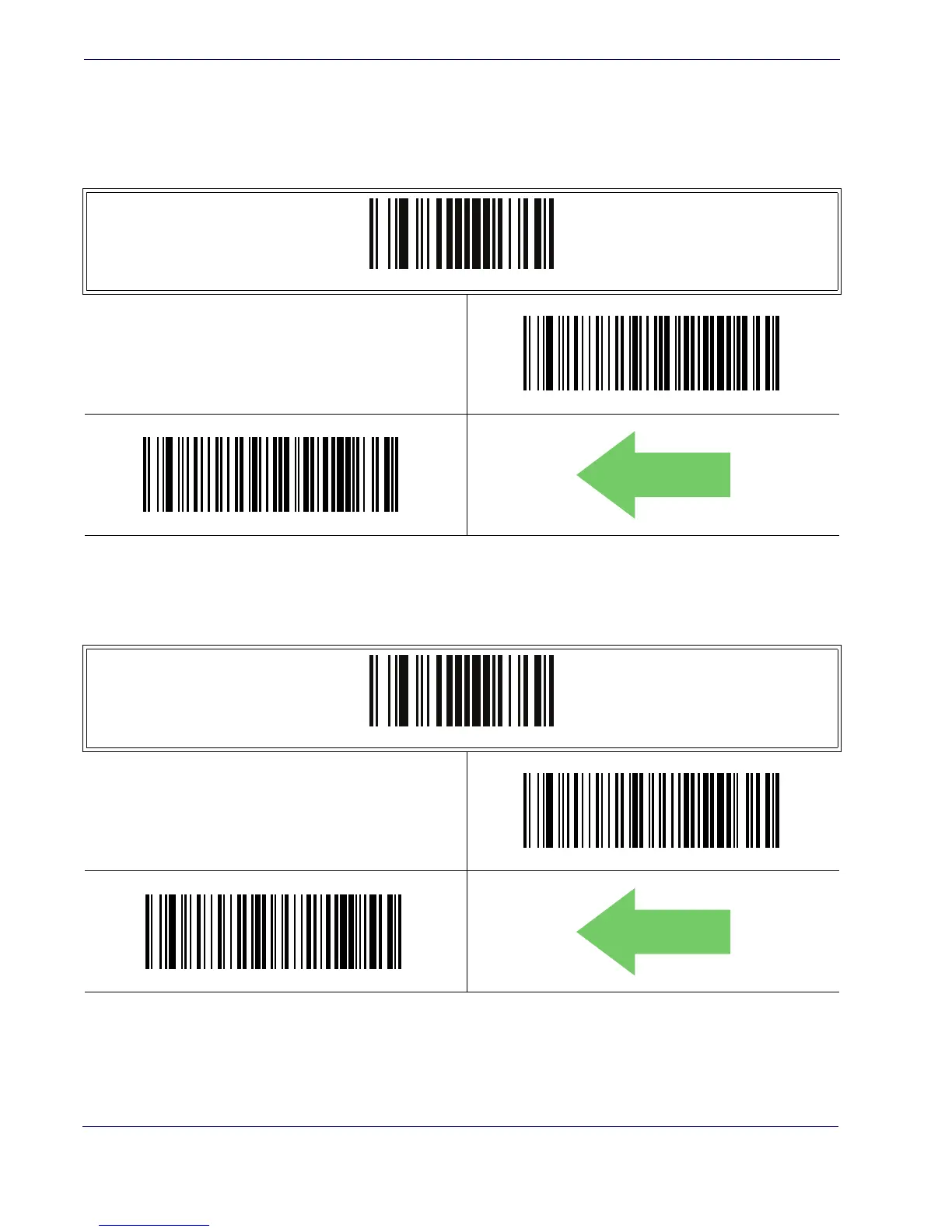

Code 4 — cont.

Code 4 Check Character Transmission

This feature enables/disables transmission of an optional Code 4 check character.

Code 4 Hex to Decimal Conversion

This feature enables/disables the conversion of hexidecimal label data to decimal label da-

ta.

ENTER/EXIT PROGRAMMING MODE

Code 4 Check Character Transmission = Don’t Send

Code 4 Check Character Transmission = Send

DEFAULT

ENTER/EXIT PROGRAMMING MODE

Code 4 Hex to Decimal Conversion = Disable

Code 4 Hex to Decimal Conversion = Enable

DEFAULT
