370
PowerScan
TM
PBT7100 Cordless
Standard Cable Pinouts

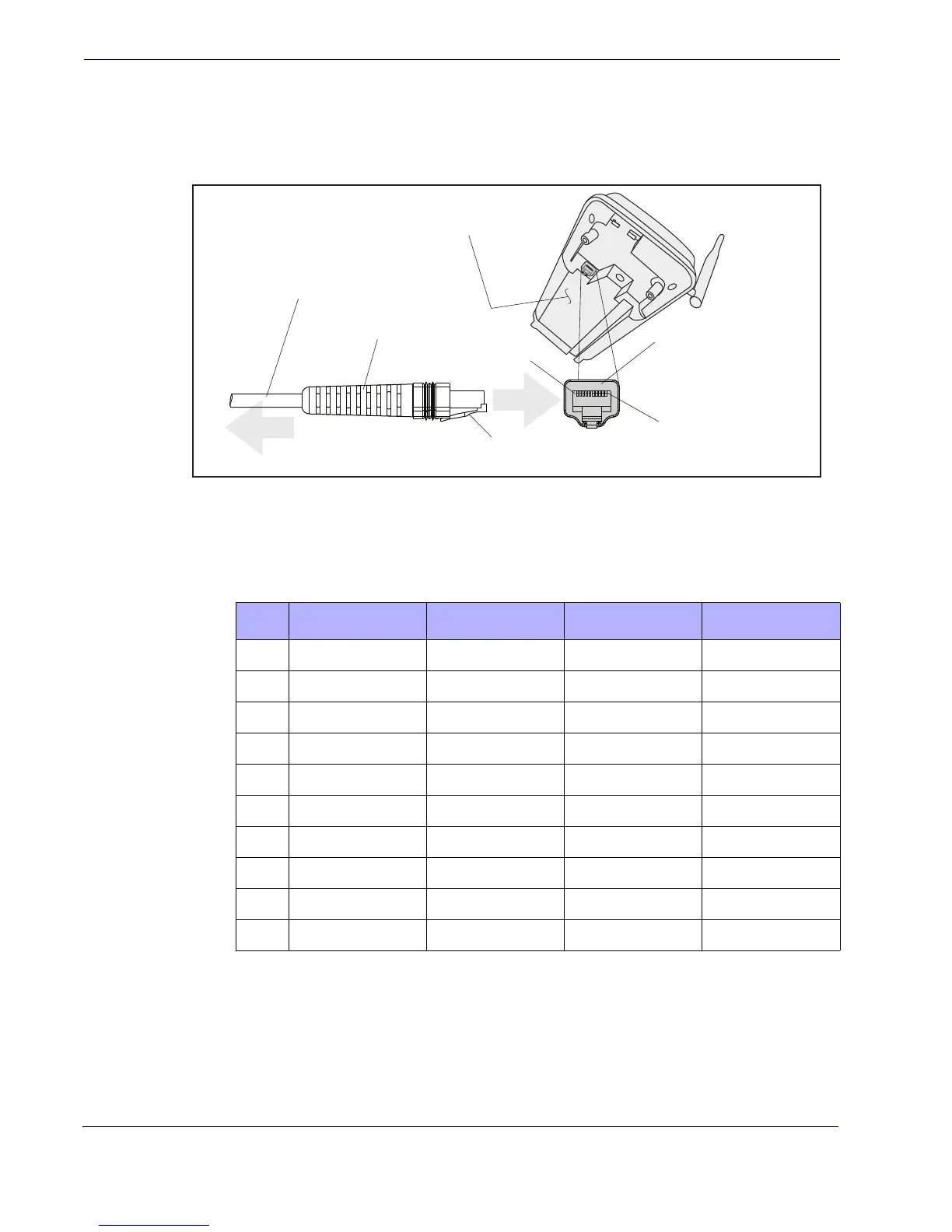

Figure 8 and Table 48 provide standard pinout information for the Base Station’s cable.
Figure 8. Standard Cable Pinouts
The signal descriptions in Table 48 apply to the connector on the Base Station and are
for reference only.
Table 48.
Standard Cable Pinouts — Base Station Side
Pin 1
Pin 10
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Interface Cable Port
(in Base cavity)
Bottom of Base Station
Pin RS-232 OEM USB Keyboard Wedge
1RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4GND GND GND GND
5RX
6TX
7 VCC VCC VCC VCC
8 IBM_B CLKOUT (PC side)
9 IBM_A DATAOUT (PC side)
10 CTS (in)
