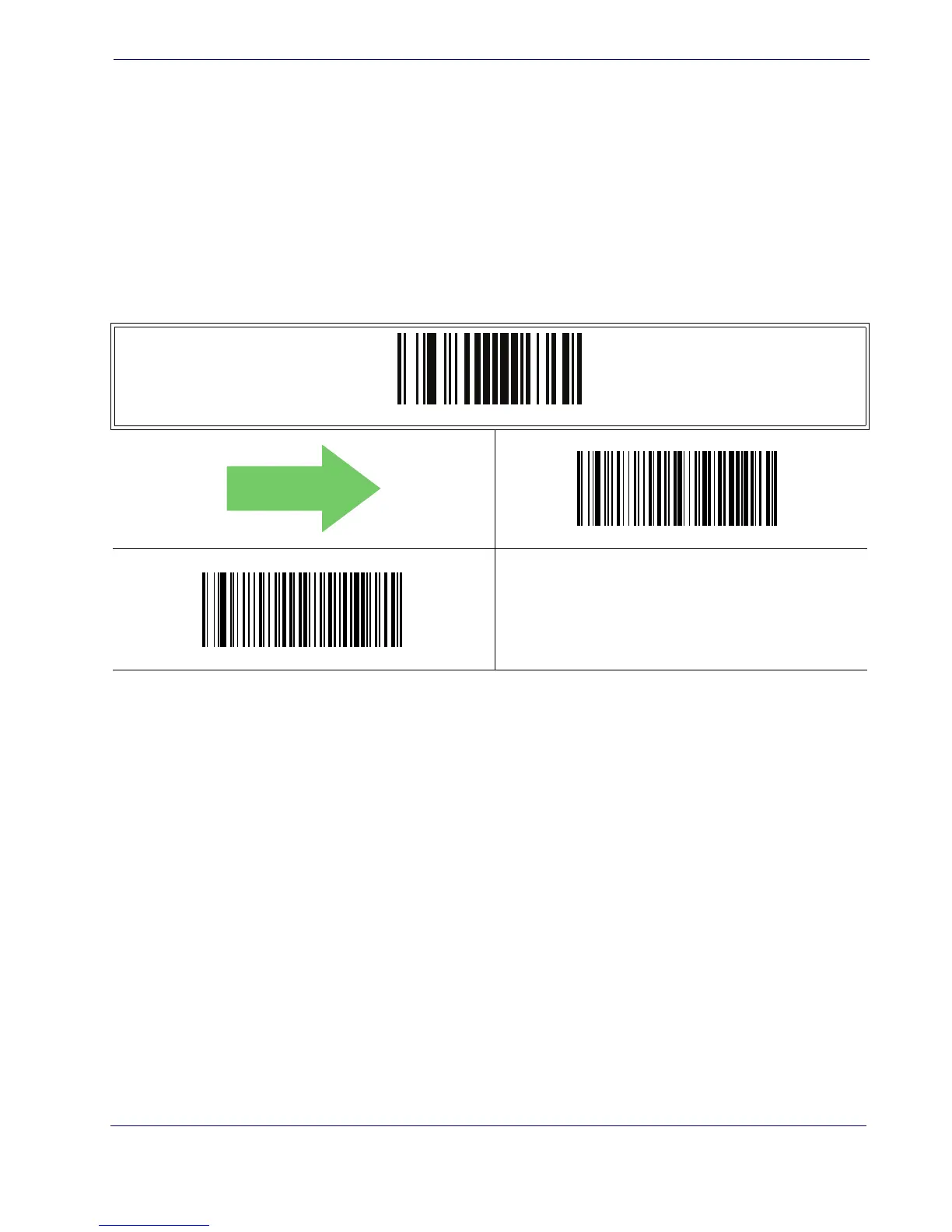

Code 11

Product Reference Guide

257

Code 11 — cont.

Code 11 Length Control

This feature specifies either variable length decoding or fixed length decoding for the

Code 11 symbology.

Variable Length —

For variable length decoding, a minimum and maximum length

may be set.

Fixed Length —

For fixed length decoding, two different lengths may be set.

ENTER/EXIT PROGRAMMING MODE

Code 11 Length Control = Variable Length

Code 11 Length Control = Fixed Length

DEFAULT

Default Chapter1
