4.13.4 DSE2152 ANALOGUE OUTPUT MODULE

Select the DSENet ID of the output expansion you wish to configure. The ID of the expansion output module

is set by rotary decimal switch accessible under the removable cover of the device.

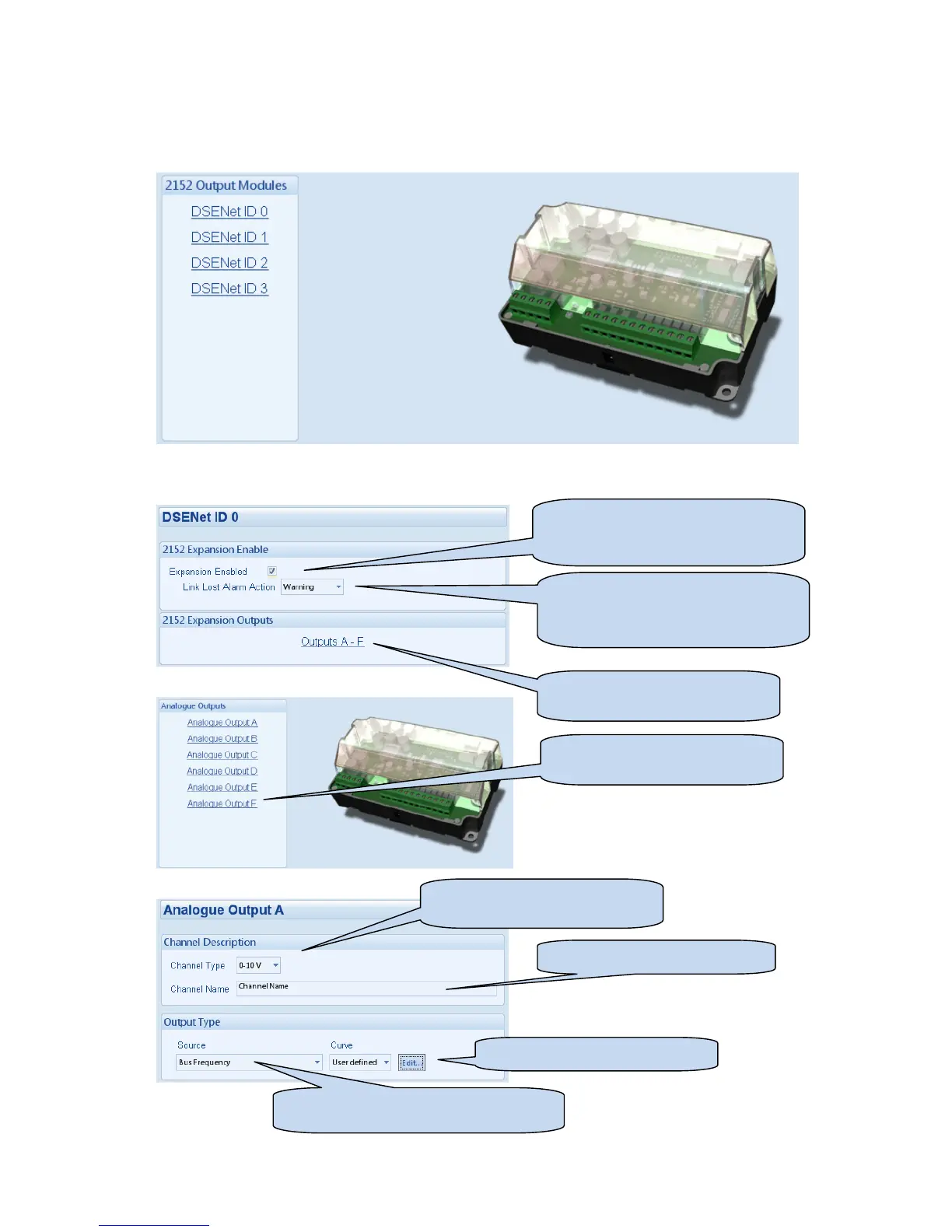

The following is then shown:

Click to enable or disable the option.

The relevant values below will appear

greyed out if the option is disabled.

Select the alarm type of the link lost

alarm. This alarm will take action if the

expansion module is not detected by

the host module.

Click to configure the outputs

Then select the output you want to

configure

Select the required function of the

output. 0-10V or 4-20mA

Select which measured parameter is to be

used to drive the output channel

Name the output appropriately

Edit the sensor curve if required.
