Edit Configuration
21
4.4.5 EDITING THE SENSOR CURVES
While the configuration suite holds sensor specification for the most commonly used resistive sensors,
occasionally it is required that the module be connected to a sensor not listed by the configuration suite. To
aid this process, a sensor editor has been provided.
Deleting custom sensor curves that have been added is performed in the main menu, select Tools | Curve
Manager.

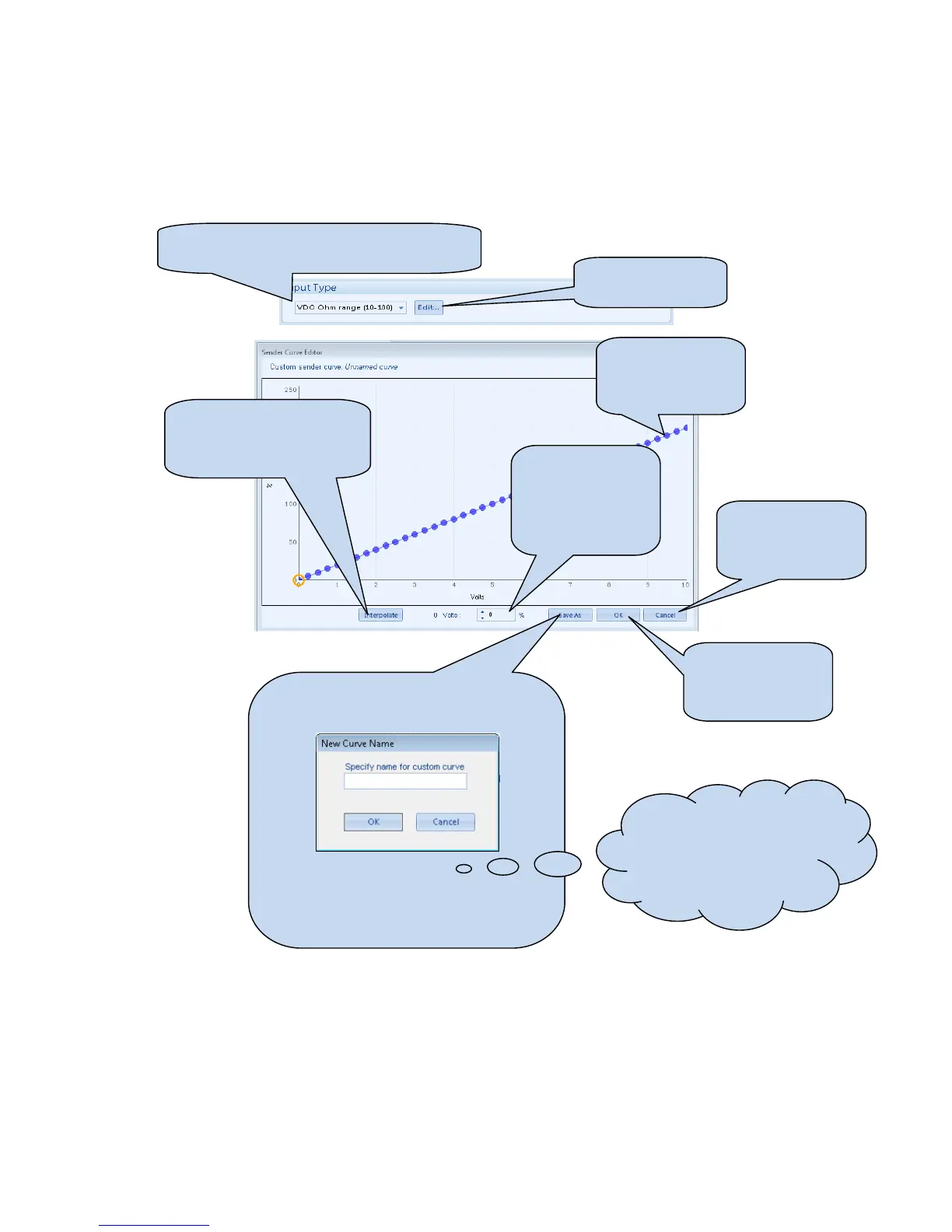

In this example, the closest match to the sensor
in use is the VDO 10-180Ω fuel level sensor.
Click to edit the
‘sensor curve’.
Click and drag the
points on the
graphs to change
the settings
Or use the mouse
to select the graph
point, then enter the
value in the box or
click up/down to
change the value
Click OK to accept
the changes and
return to the
configuration editor
Click CANCEL to
ignore and lose any
changes you have
made
Click SAVE AS, you are prompted to name
your curve....
Click OK to save the curve.
Any saved curves become selectable in the
Input Type selection list.
Hint:
Deleting, renaming or
editing custom sensor curves
that have been added is
performed in the main menu,
select Tools | Curve Manager.
Click Interpolate then select
two points as prompted to
draw a straight line between
them.
