5.1 GENERATOR IDENTITY
Shows the module’s current settings for Site ID and genset ID.
This information is particularly helpful when the current connection is made remotely by modem or internet for
example or when the connected set is one of a number of sets on an RS485 data link.

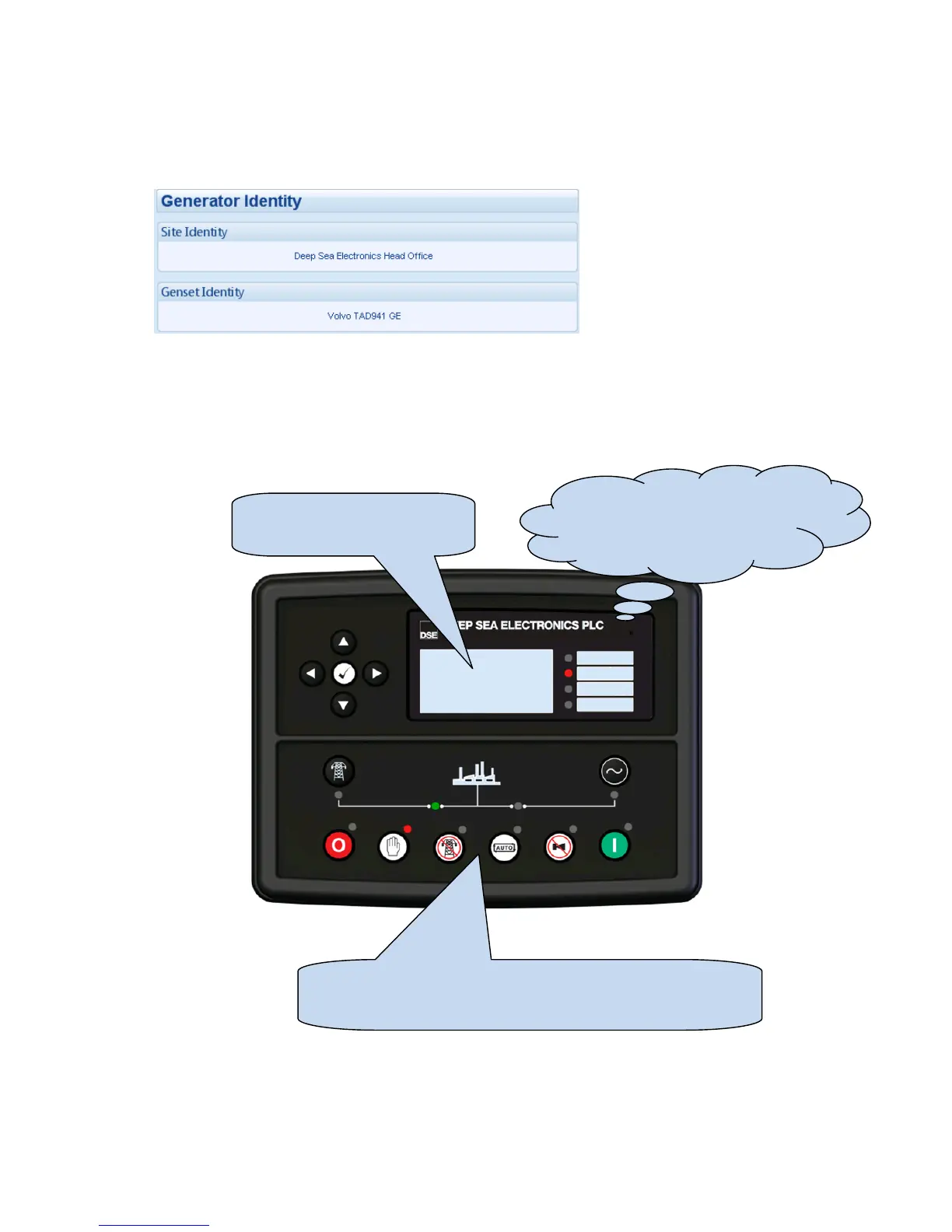

5.2 MIMIC
This screen provides a mimic of the control module and allows the operator to change the control mode of the
module.
Only the mode control and load switch buttons are operational in the mimic display. The menu navigation
buttons are inoperable.
Click the bottom row of buttons to change module mode.
The load switch buttons are also operable (in manual mode as with
the module’s own fascia buttons)
Hint:
Before the mimic buttons will
operate, ensure you have this ena
under TOOLS | ACCESS
PERMISSIONS
Module status information.
This is not an exact duplicate of
the module’s own display.
