Bottom strip with no function or LEDs
Functions
Blank display unit
• No LEDs for engine, generator, breaker and busbar status
• No display unit push-buttons
Control mode
• REMOTE mode only
◦ Remote commands start sequences (from Modbus, digital inputs, PICUS, CustomLogic
and/or CODESYS)
Bottom strip with application LEDs

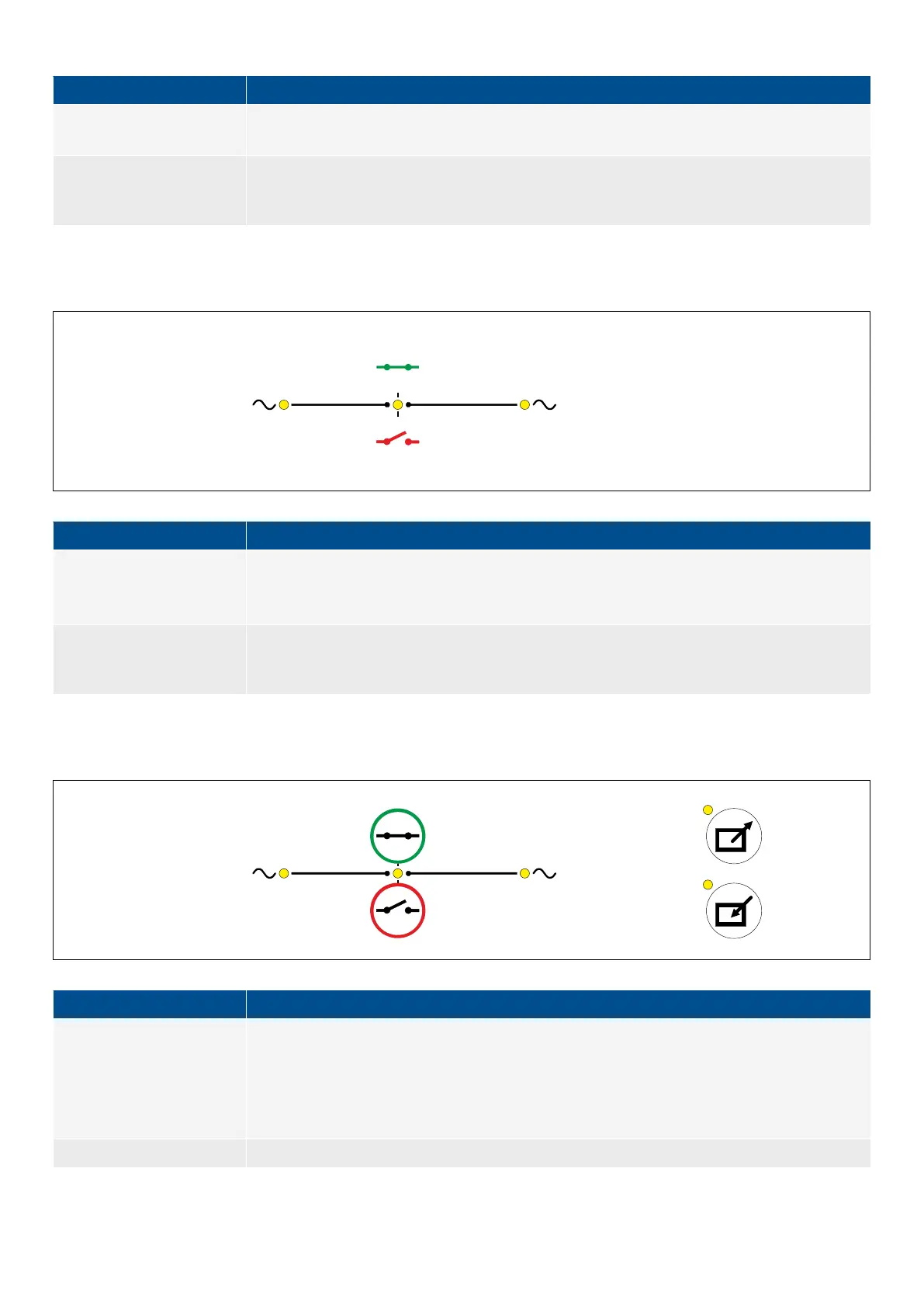

Figure 3.2
Example of display unit with application LEDs (LEDs shown in yellow)
Functions
Display unit with
application LEDs
• LEDs for generator and busbar V&Hz
• LED for breaker status
• No display unit push-buttons
Control mode
• REMOTE mode only
◦ Remote commands start sequences (from Modbus, digital inputs, PICUS, CustomLogic
and/or CODESYS)
Display unit with breaker push-buttons
Figure 3.3
Example of display unit with breaker push-buttons (LEDs shown in yellow)
Functions
Display unit with breaker
push-buttons
• LEDs for generator and busbar V&Hz
• LED for breaker status
• Display unit push-buttons
◦ Change control mode (LOCAL/REMOTE)
◦ One-touch sequences for breaker open and close
Control modes • REMOTE mode
