From this screen you can configure either a standard relay or a changeover relay, depending on the type of relay that can be
connected to the hardware module terminals.

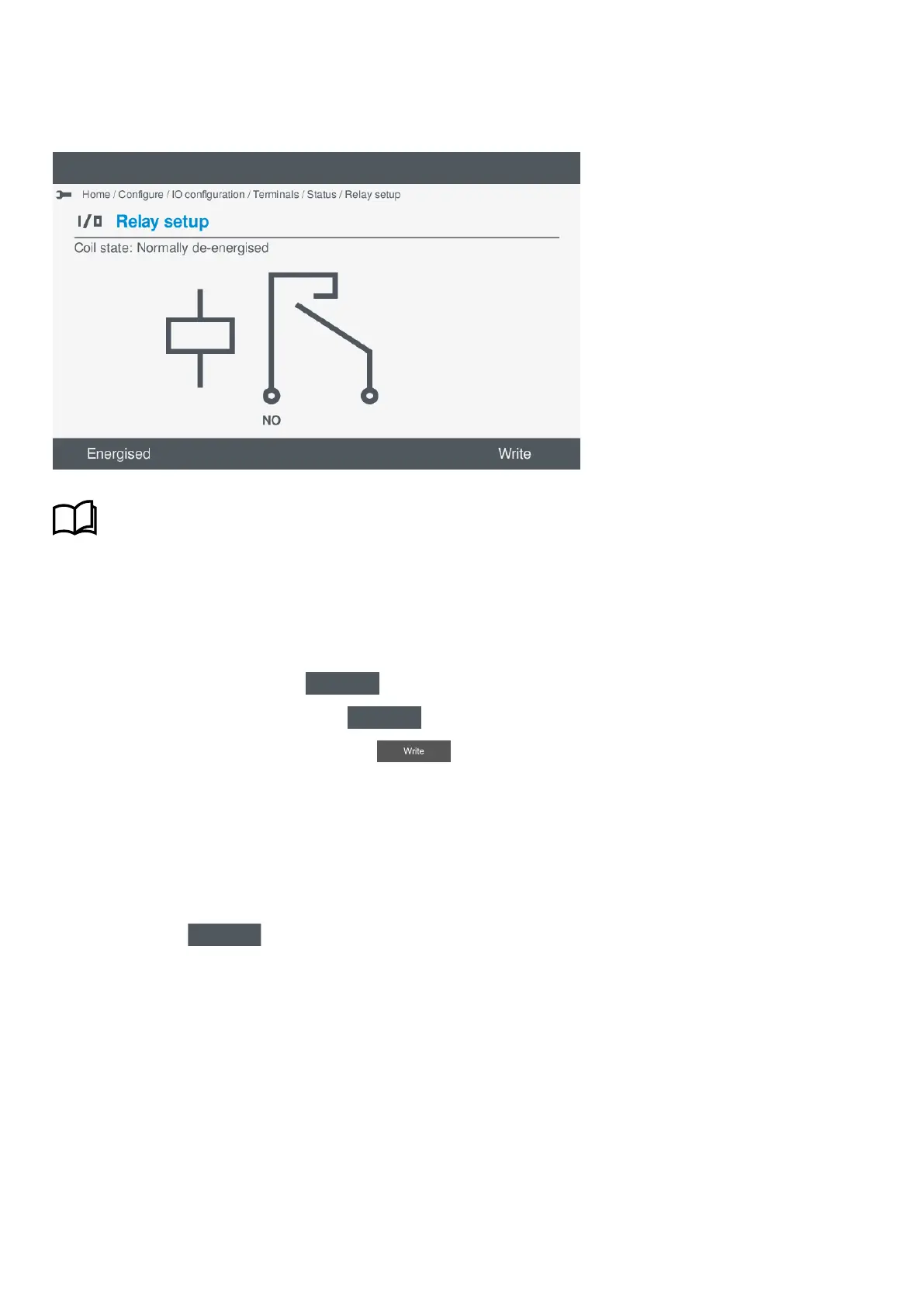

Figure 7.7 Example relay setup
More information
See Hardware characteristics and configuration in the Designer's handbook for more information about the hardware
modules that support relays.
Configure the relay
1. You can set the relay as either Energised or De-energised.
• The current setting is shown on the display.
2. You can set the relay as either Energised or De-energised.
3. To set as Energise select Energised
.
4. To set as De-energise select De-energised
.
5. To save the setting to the controller, select Write
.
• You are returned to the terminal screen.
7.8.3 Configure function(s)
The functions available are organised in categories and groups, which are similar to a tree structure view.
Selecting a function
1. Select Functions
.
• The function groups are shown on the display:
OPERATOR'S MANUAL 4189341099G UK Page 58 of 130
