9. To save the settings to the controller, select Write .
• You are returned to the terminals page.
7.10 Analogue output (AO) / Pulse width modulation (PWM)
7.10.1 Configure Analogue output (AO)
To configure the analogue output (AO):
1. Select the hardware module, terminal(s), for an Analogue output (AO) to be used.
2. If required, select the function input (x-axis).
3. Configure the Output setup settings and curve (y-axis).
4. Write the Output setup settings to the controller.

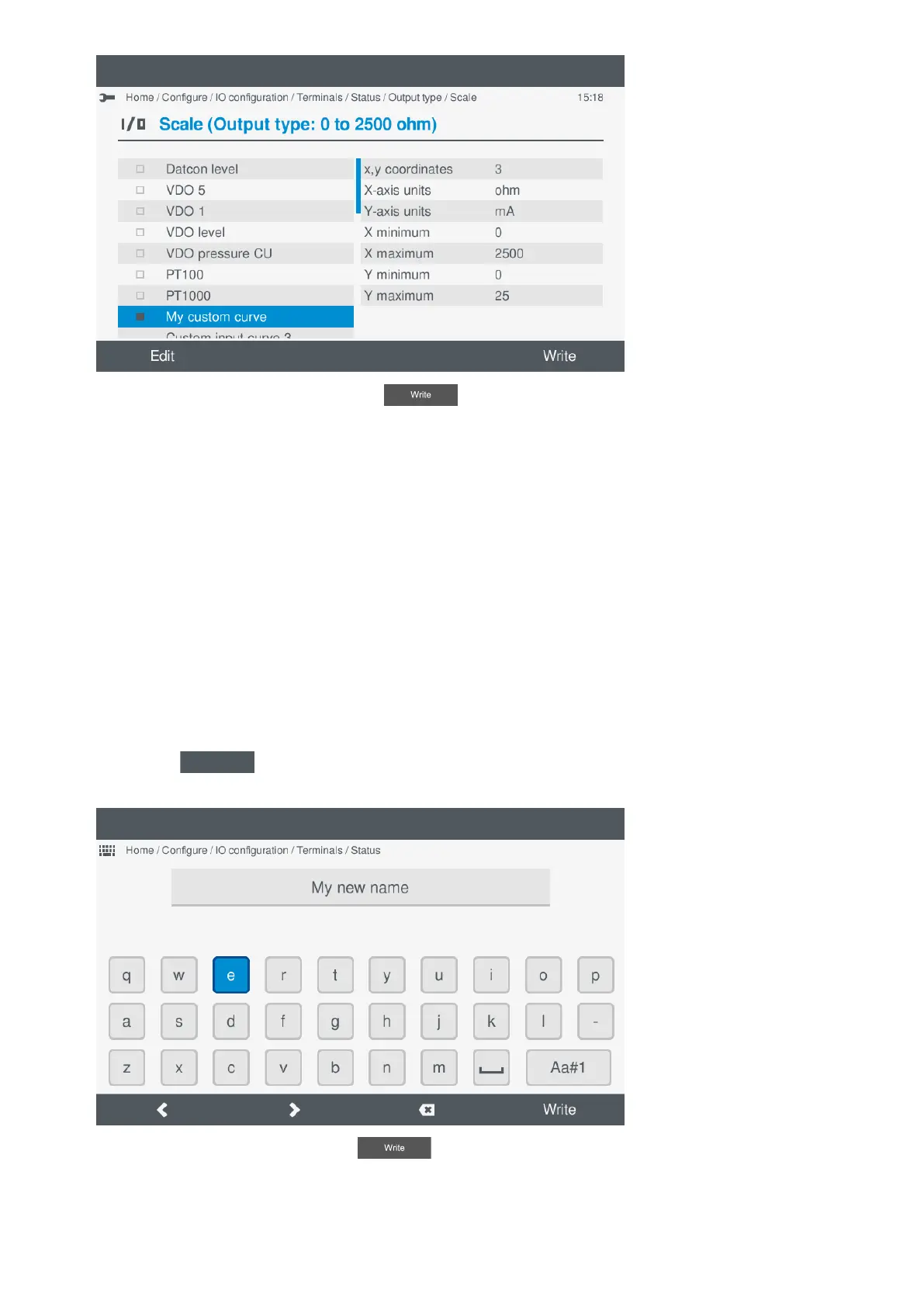

7.10.2 Configure I/O name
To rename the input or output name:
1. Select I/O name
I/O name
.
• The virtual keyboard is displayed on screen to edit the I/O name.
•
2. Enter the required I/O name and select Write .
OPERATOR'S MANUAL 4189341099G UK Page 79 of 130
