• To clear all the Enabled functions, select Clear
.
• To save the setting(s) to the controller, select Write .
◦ This only applies to the selected functions and does not apply to other I/O change(s).

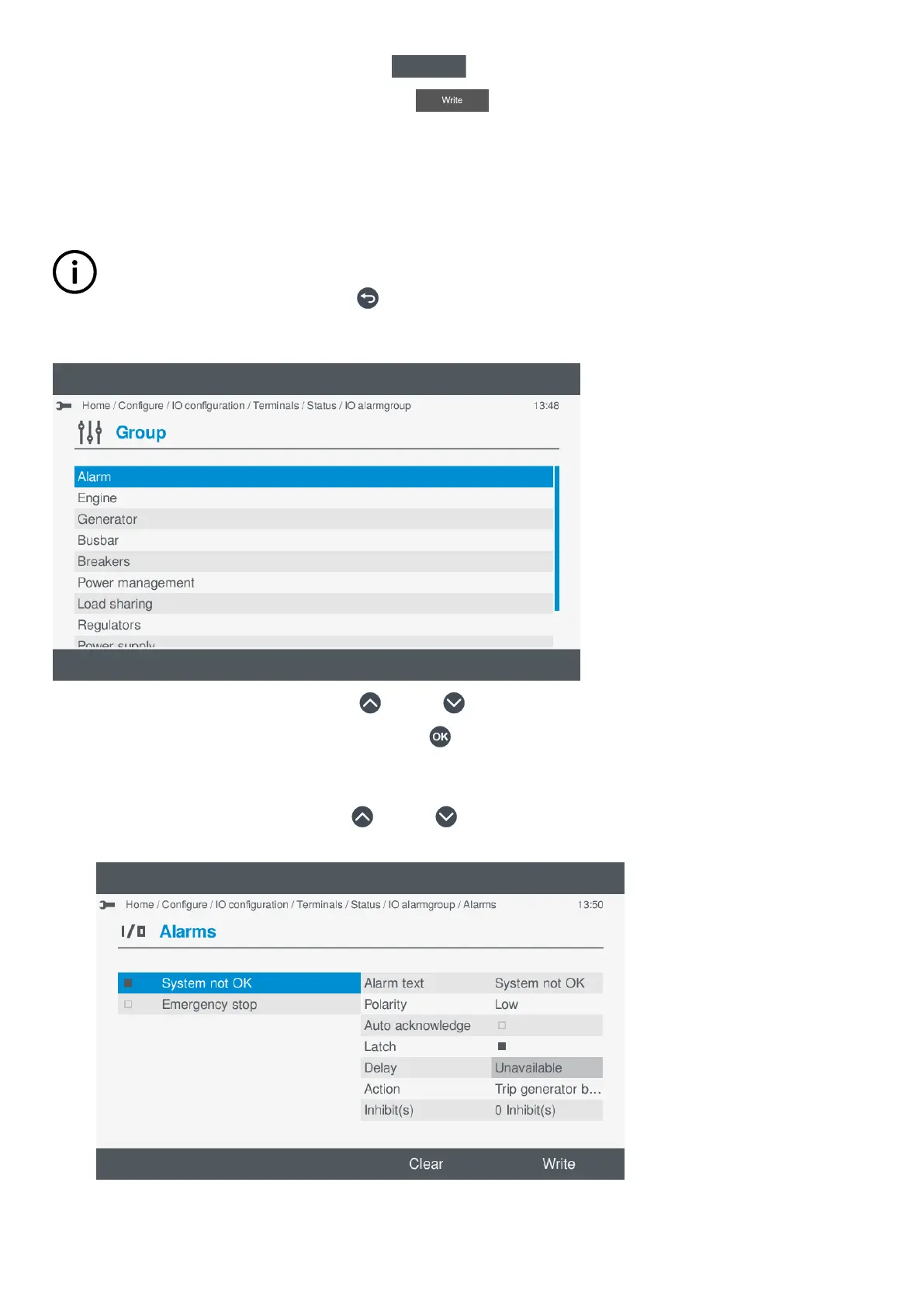

7.8.4 Configure alarm(s)
The alarms available for a digital output (DO) are organised in categories and groups, which are similar to a tree structure view.
INFO
When viewing or configuring a previously configured I/O with an alarm, the display will automatically jump to the alarm
settings. You can, if required, use Back to return to the alarm selection screen.
Selecting an alarm
1. Highlight a category or group, by pressing Up or Down .
2. Select the highlighted category or group, by pressing OK .
• A further group may be shown or the alarm list to select the actual alarm(s).
• If a further group is shown, simply repeat step 1 to locate and open the required group.
3. Highlight the required alarm, by pressing Up
or Down .
• Details of the alarm settings are shown at the right side of the display.
•
OPERATOR'S MANUAL 4189341099G UK Page 61 of 130
