LLDP-MED Capabilities TLV
The LLDP-MED capabilities TLV communicates the types of TLVs that the endpoint device and the network connectivity device support.
LLDP-MED network connectivity devices must transmit the Network Policies TLV.
• The value of the LLDP-MED capabilities eld in the TLV is a 2–octet bitmap, each bit represents an LLDP-MED capability (as shown in
the following table).
• The possible values of the LLDP-MED device type are shown in the following. The Dell Networking system is a network connectivity
device, which is Type 4.
When you enable LLDP-MED in Dell Networking OS (using the advertise med command), the system begins transmitting this TLV.

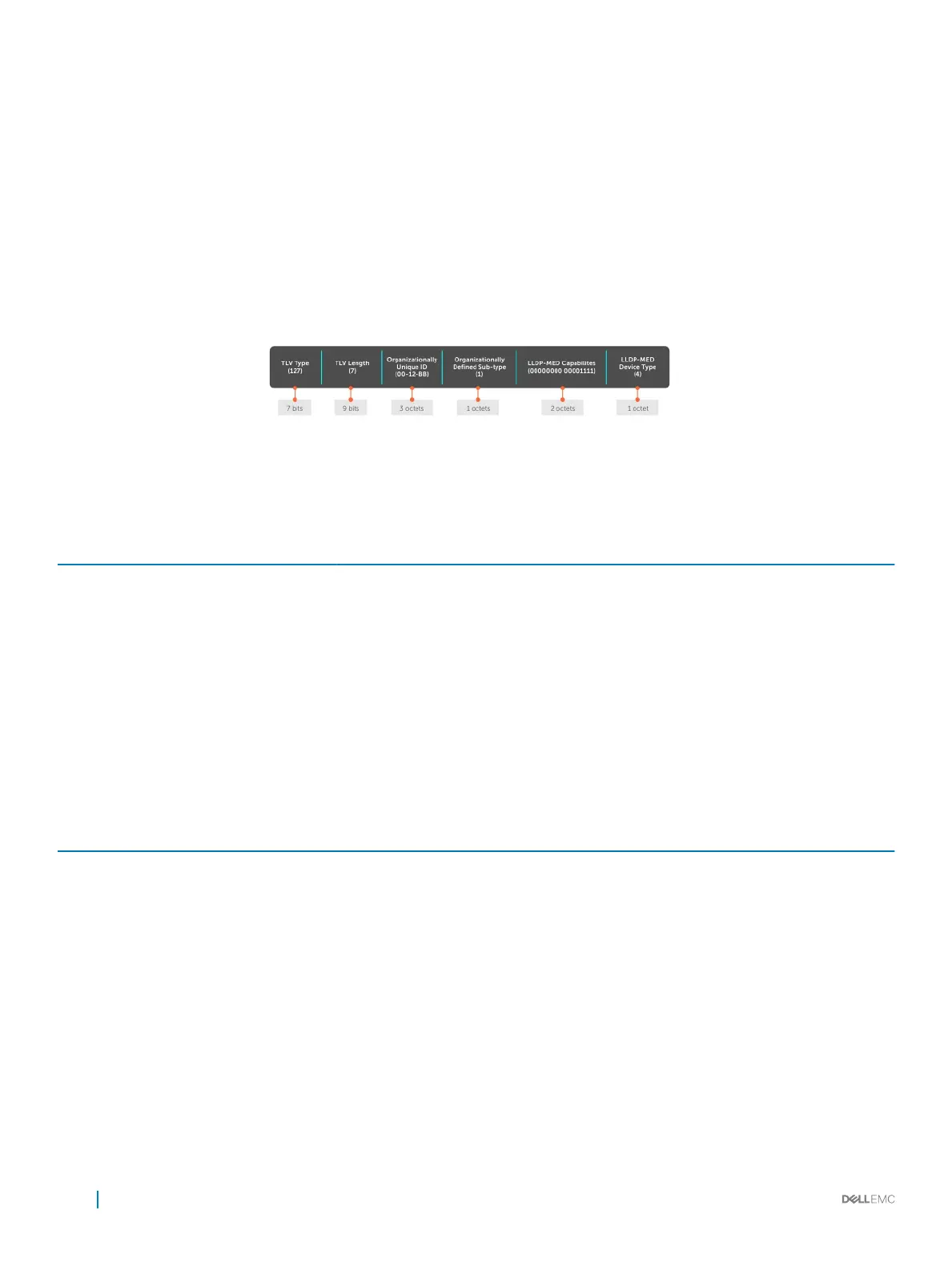

Figure 66. LLDP-MED Capabilities TLV
Table 35. Dell Networking OS LLDP-MED Capabilities
Bit Position TLV Dell Networking OS Support
0 LLDP-MED Capabilities Yes
1 Network Policy Yes
2 Location Identication Yes
3 Extended Power via MDI-PSE Yes
4 Extended Power via MDI-PD No
5 Inventory No
6–15 reserved No
Table 36. LLDP-MED Device Types
Value Device Type
0 Type Not Dened
1 Endpoint Class 1
2 Endpoint Class 2
3 Endpoint Class 3
4 Network Connectivity
5–255 Reserved
LLDP-MED Network Policies TLV
A network policy in the context of LLDP-MED is a device’s VLAN conguration and associated Layer 2 and Layer 3 congurations.
LLDP-MED network policies TLV include:
454
Link Layer Discovery Protocol (LLDP)
