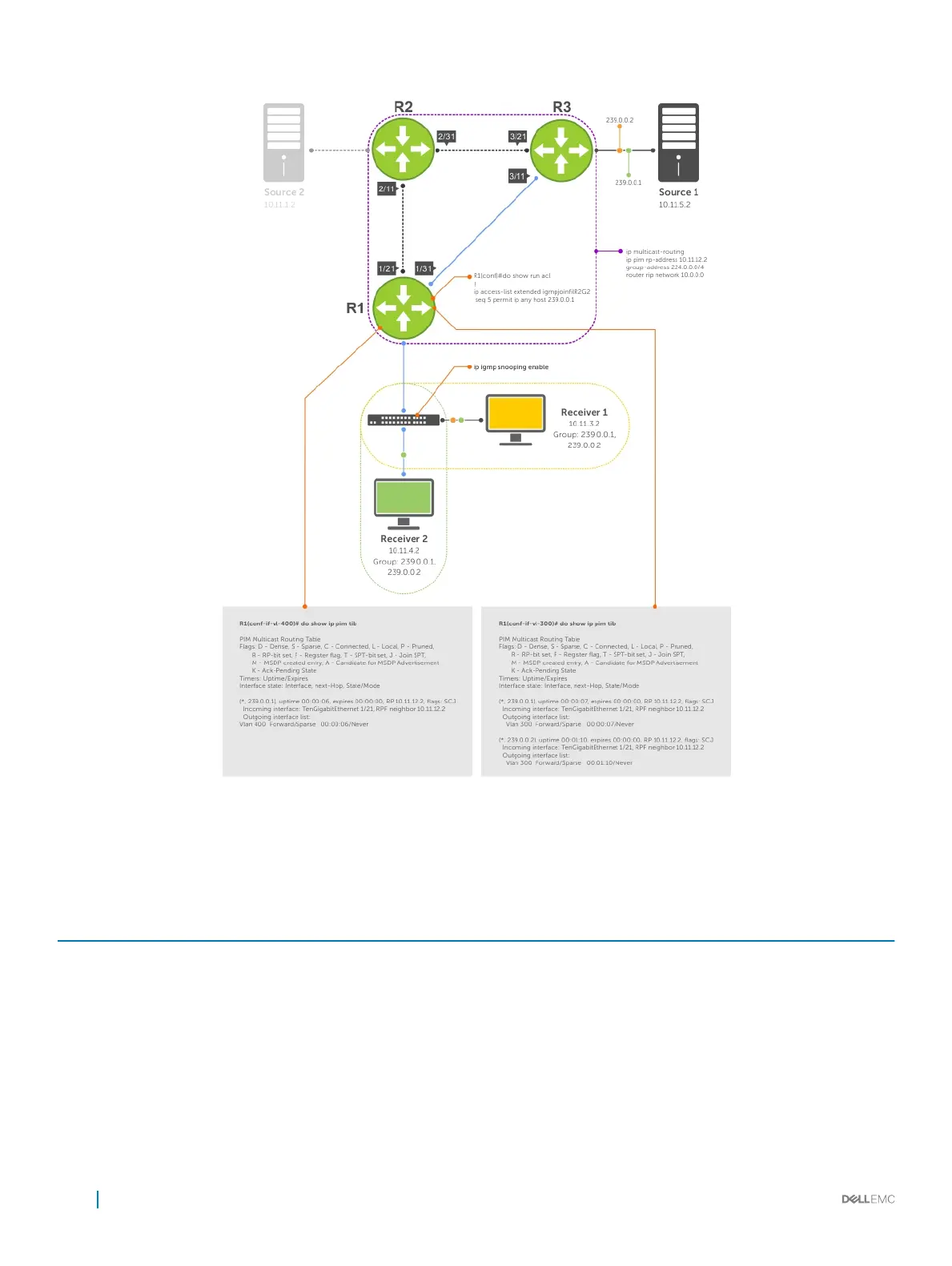

Figure 83. Preventing a Host from Joining a Group

The following table lists the location and description shown in the previous illustration.

Table 44. Preventing a Host from Joining a Group — Description

Location Description

1/21

• Interface GigabitEthernet 1/21

• ip pim sparse-mode

• ip address 10.11.12.1/24

• no shutdown

1/31

• Interface GigabitEthernet 1/31

• ip pim sparse-mode

• ip address 10.11.13.1/24

514 Multicast Features
