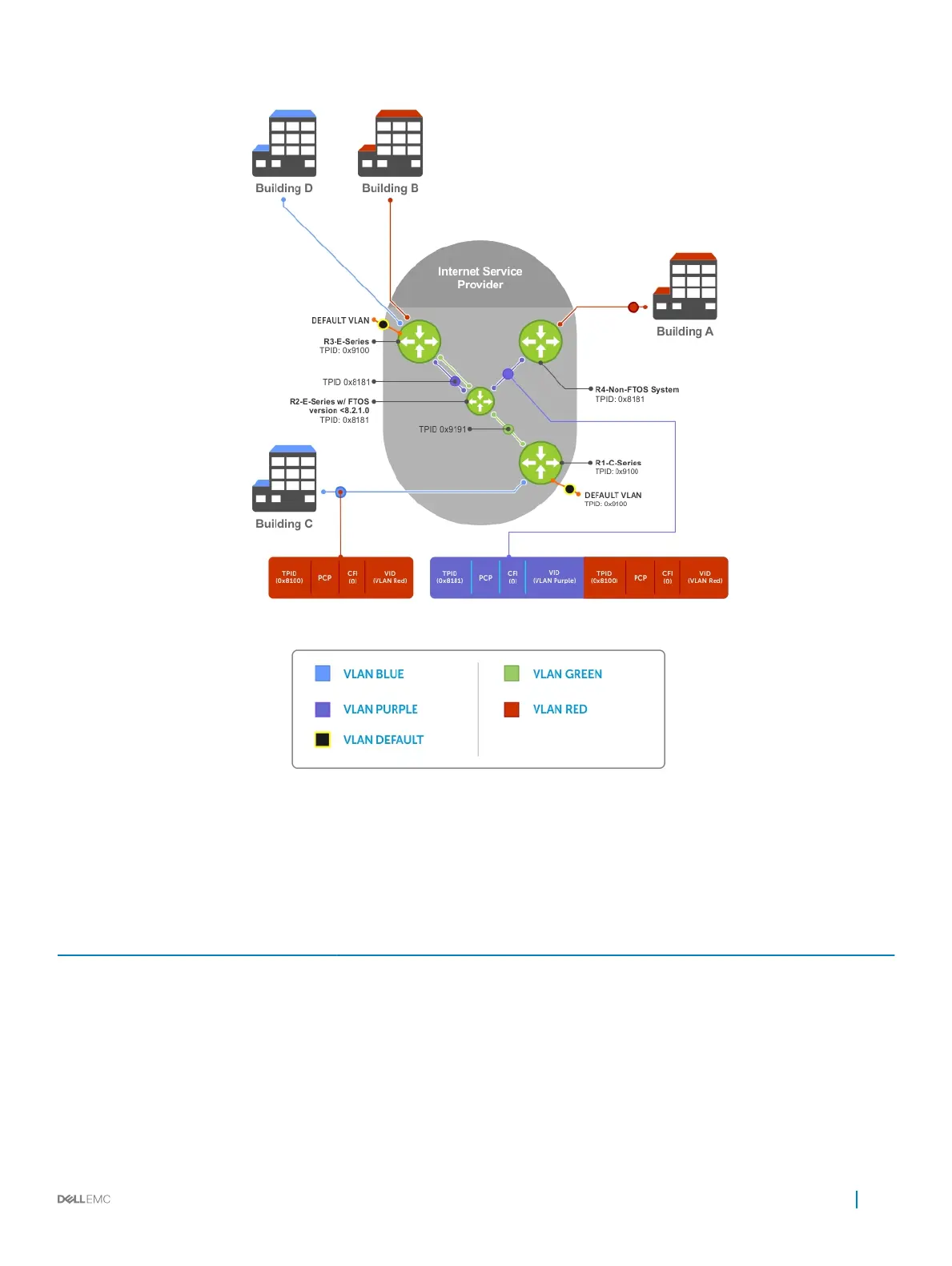

Figure 106. Single and Double-Tag TPID Mismatch

The following table details the outcome of matched and mismatched TPIDs in a VLAN-stacking network with the S-Series.

Table 68. Behaviors for Mismatched TPID

Network Position Incoming Packet

TPID

System TPID Match Type Pre-Version 8.2.1.0 Version 8.2.1.0+

Ingress Access Point untagged 0xUVWX — switch to default

VLAN

switch to default

VLAN

single-tag (0x8100) 0xUVWX single-tag mismatch switch to default

VLAN

switch to default

VLAN

0x8100 single-tag match switch to VLAN switch to VLAN

0x81XY single-tag rst-byte

match

switch to VLAN switch to default

VLAN

Service Provider Bridging 747
