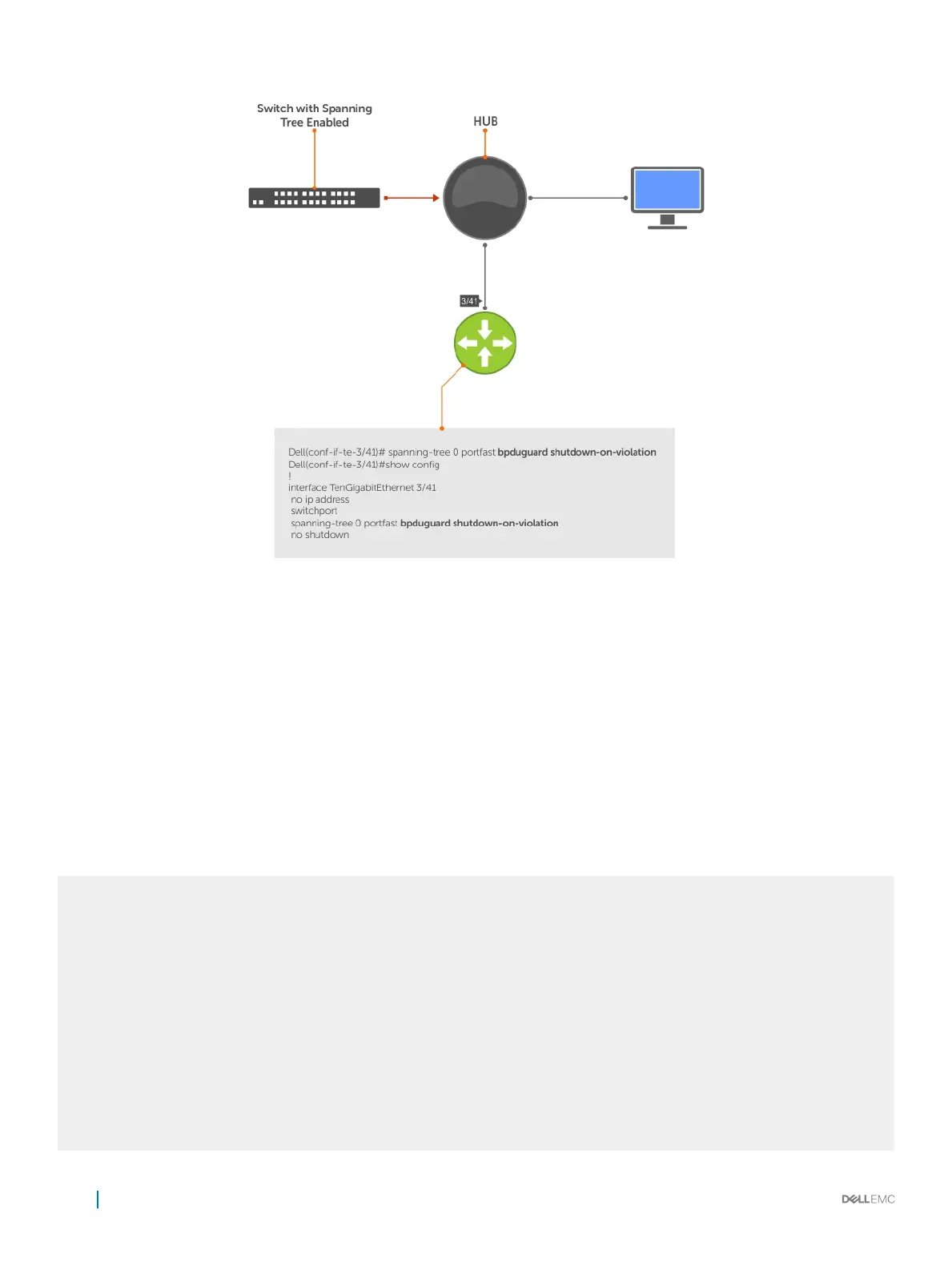

Figure 114. Enabling BPDU Guard
Dell Networking OS Behavior: BPDU guard and BPDU ltering both block BPDUs, but are two separate features.
BPDU guard:
• is used on edgeports and blocks all trac on edgeport if it receives a BPDU.
• drops the BPDU after it reaches the RP and generates a console message.
BPDU ltering:
• disables spanning tree on an interface
• drops all BPDUs at the line card without generating a console message
Example of Blocked BPDUs
Dell(conf-if-gi-1/7)#do show spanning-tree rstp brief
Executing IEEE compatible Spanning Tree Protocol
Root ID Priority 32768, Address 0001.e805.fb07
Root Bridge hello time 2, max age 20, forward delay 15
Bridge ID Priority 32768, Address 0001.e85d.0e90
Configured hello time 2, max age 20, forward delay 15
Interface Designated
Name PortID Prio Cost Sts Cost Bridge ID PortID
---------- -------- ---- ------- --- ------- --------------------
Gi 1/6 128.263 128 20000 FWD 20000 32768 0001.e805.fb07 128.653
Gi 1/7 128.264 128 20000
EDS 20000 32768 0001.e85d.0e90 128.264
Interface
Name Role PortID Prio Cost Sts Cost Link-type Edge
---------- ------ -------- ---- ------- --- ----------------
Gi 1/6 Root 128.263 128 20000 FWD 20000 P2P No
Gi 1/7
ErrDis 128.264 128 20000 EDS 20000 P2P No
832
Spanning Tree Protocol (STP)
