802.1X
802.1X is a port-based Network Access Control (PNAC) that provides an authentication mechanism to devices wishing to attach to a LAN
or WLAN. A device connected to a port that is enabled with 802.1X is disallowed from sending or receiving packets on the network until its
identity is veried (through a username and password, for example).
802.1X employs Extensible Authentication Protocol (EAP) to transfer a device’s credentials to an authentication server (typically RADIUS)
using a mandatory intermediary network access device, in this case, a Dell Networking switch. The network access device mediates all
communication between the end-user device and the authentication server so that the network remains secure. The network access
device uses EAP-over-Ethernet (EAPOL) to communicate with the end-user device and EAP-over-RADIUS to communicate with the
server.
NOTE: The Dell Networking Operating System (OS) supports 802.1X with EAP-MD5, EAP-OTP, EAP-TLS, EAP-TTLS, PEAPv0,
PEAPv1, and MS-CHAPv2 with PEAP.

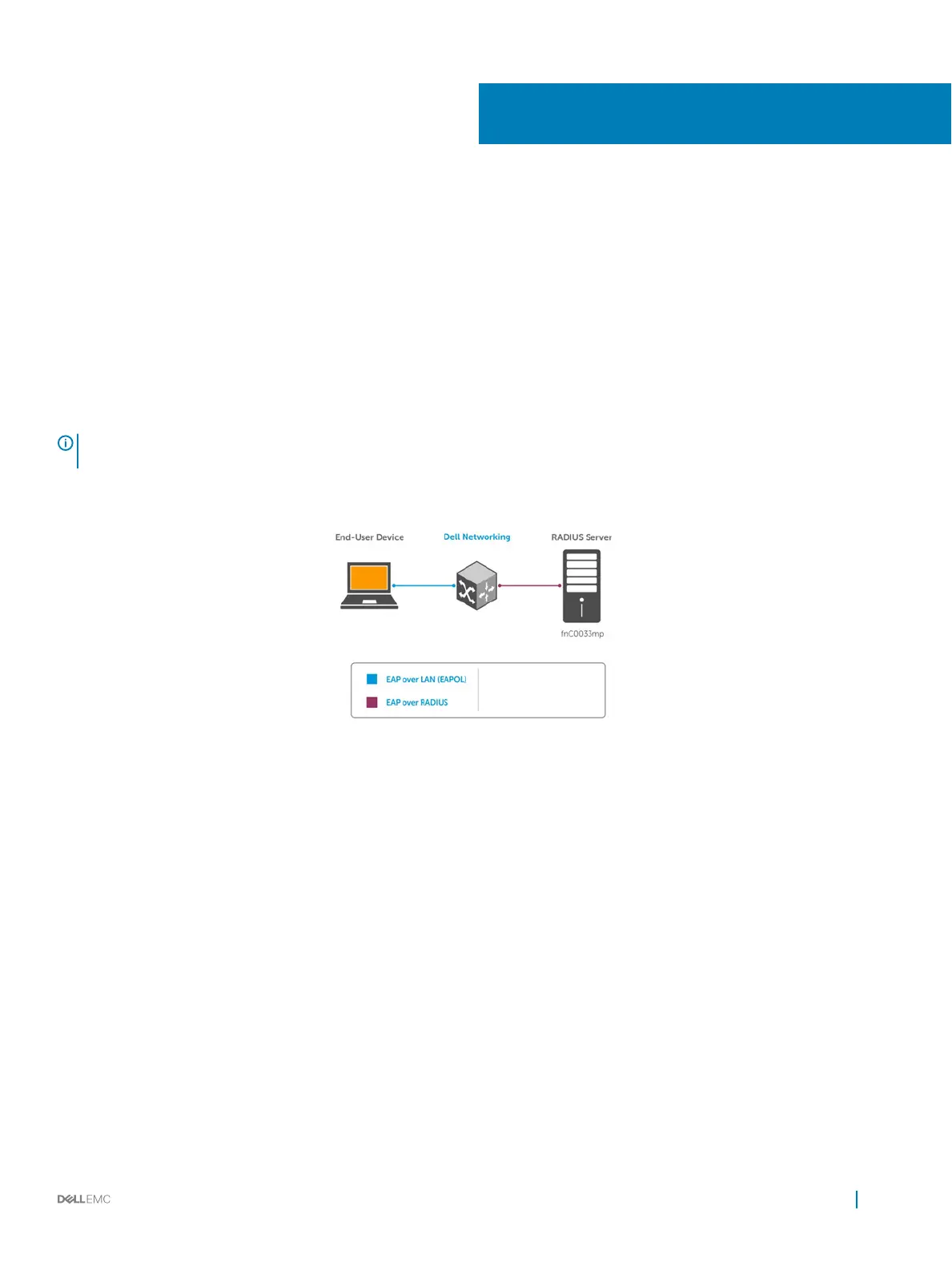

The following gures show how the EAP frames are encapsulated in Ethernet and RADIUS frames.
Figure 3. EAP Frames Encapsulated in Ethernet and RADUIS
