User Manual for DEVO-12 Page 20 of 238
Touch
to save and exit after the selection is finished.
The switch from right-hand throttle to left-hand throttle is finished after both the
MECHANICAL and ELECTRONIC switches changed, respectively. And the
transmitter is ready to normally work now.
8.2 Left-hand throttle switched to right-hand throttle
1) MECHANICAL switch
Refer to the above “MECHANICAL switch” to open the transmitter cover.

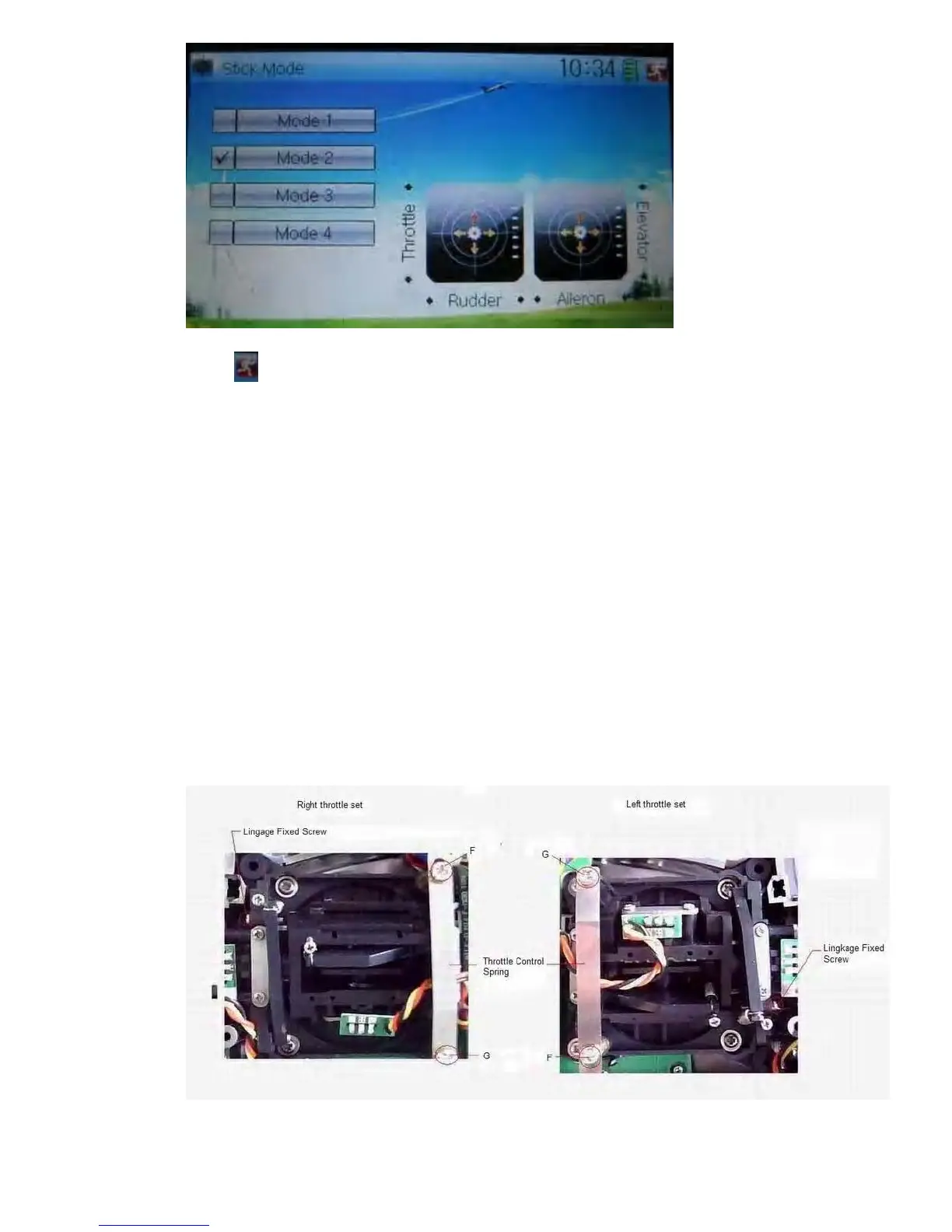

Below are shown the inside views of left and right throttle sets, respectively. Use cross
screwdriver to loosen and remove Linkage Fixed Screw, Screw F, Screw G, and
Throttle Control Spring in left throttle set, respectively, and then mount them in the
corresponding positions in right throttle set. And then adjust the stick tension
according to your habit.
2) ELECTRONIC switch
