User Manual for DEVO-12 Page 162 of 238
3.18 Program mix
There are total eight sets of Program Mix. It is possible to freely set the channels and
amounts which you want to select and amend, respectively.
Setting method:

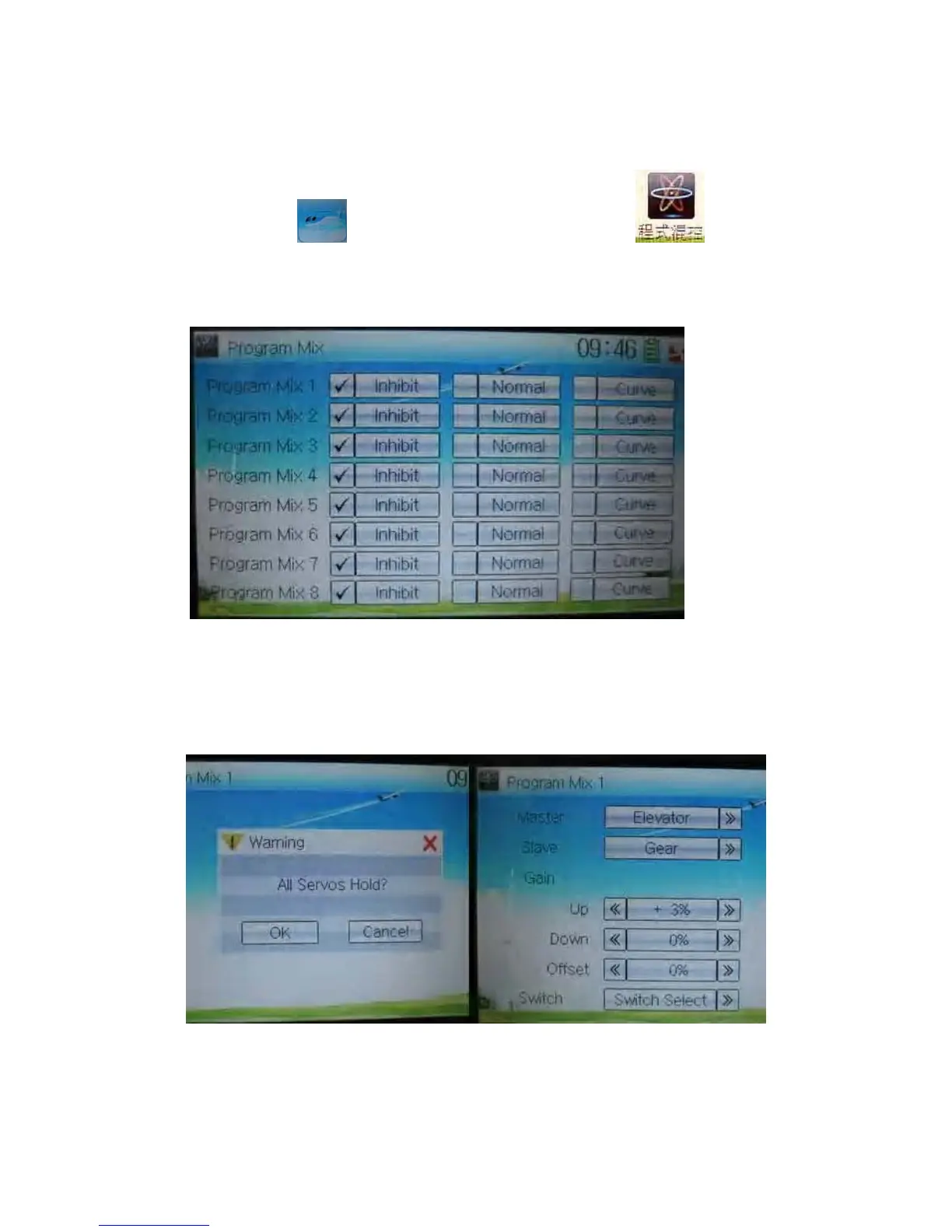

Touch the icon
to enter Function Menu, and then click to enter
the interface of Program Mix. Eight Program Mix names and their current statuses are
shown (the factory default setting is Inhibit). Take Program Mix 1 as an example to
show how to use.
.
A) Setting method for Normal in Program Mix 1
Touch the item Normal in Program Mix 1 and expands an enquiry “All Servos Hold?”
Click OK for all the servos will be locked at the current statuses; click Cancel for
unlocked. Enter the next interface after clicking.
4) Mater channel setting
Touch the navigation mark of Master and expands a selectable dropdown menu. After
clicking the desired channel the channel name will be shown in Master.
