devention DEVO-12 - Page 84

User Manual for DEVO-12 Page 84 of 238
Switch in Device Select. Refer to “2.10 Device Select”). Their pitch curves can be
separately set in their own flight modes. The setting method is same as above.
Click the icon
to exit after finished.

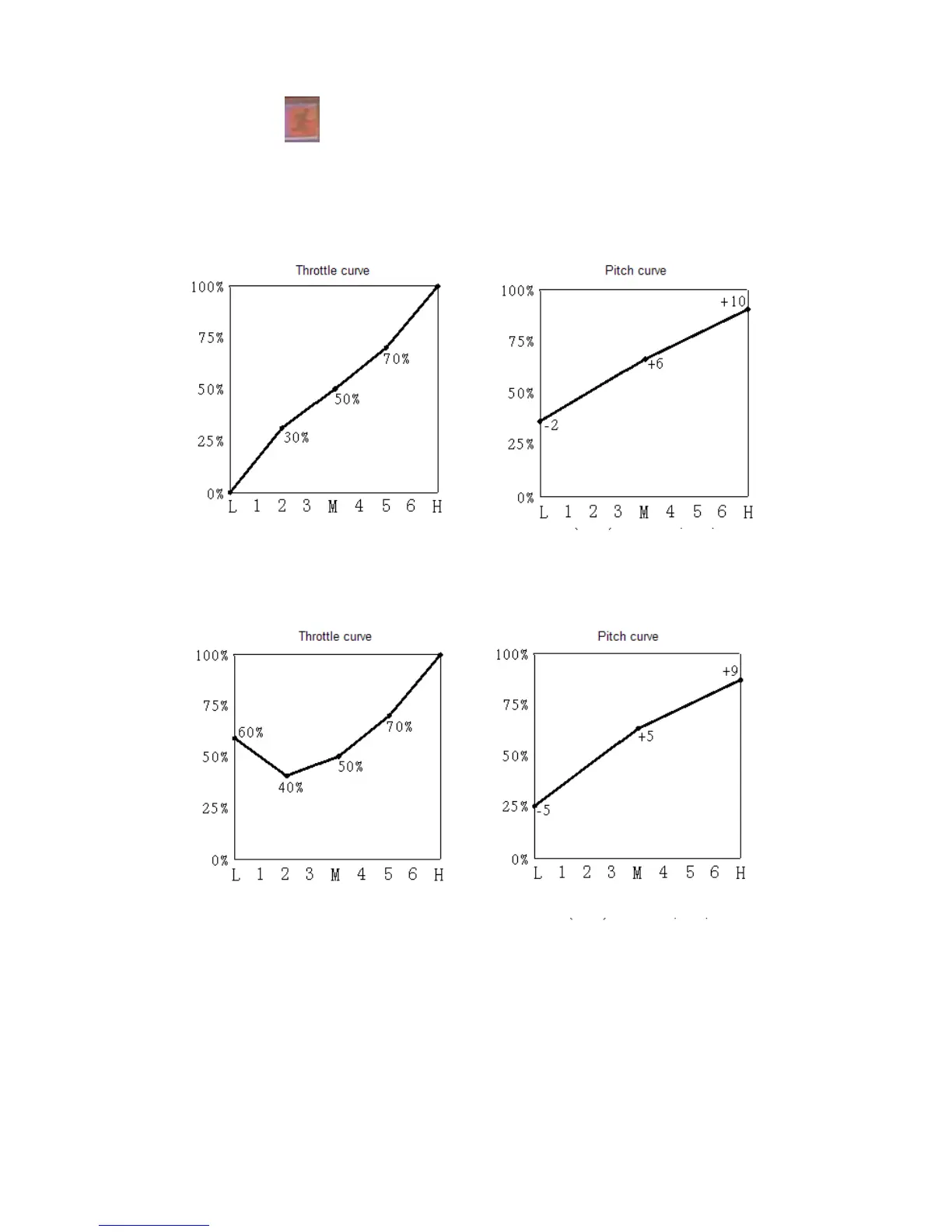

Below are shown several basic examples of Throttle curves and Pitch Curves for
reference.
1) Normal flight
2) Flight mode 1
3) Flight mode 2
