System administration Disable device encryption

AnywhereUSB® Plus User Guide

436

b. Click the Internet Protocol Version 4 (TCP/IPv4) parameter.

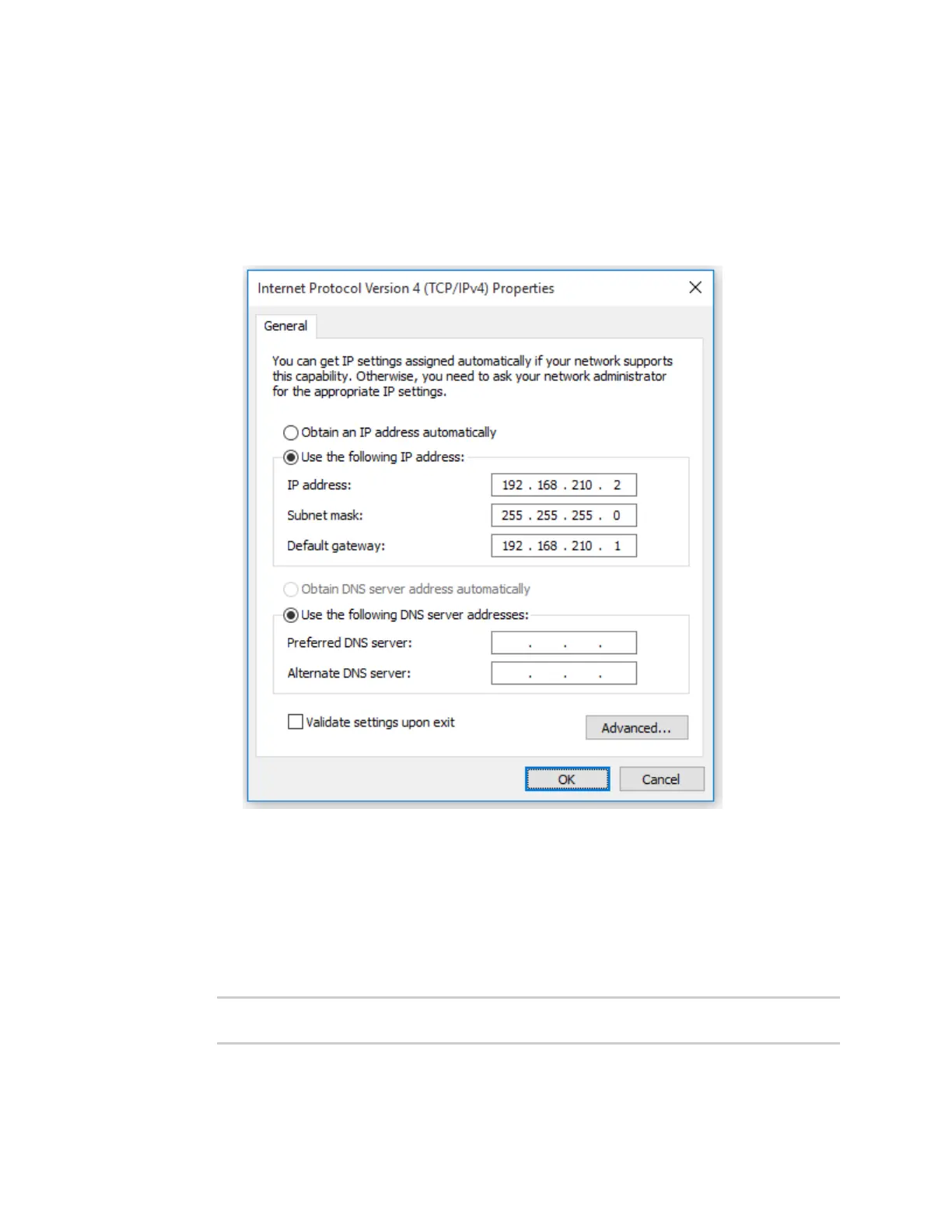

c. Click Properties. The Internet Protocol Version 4 (TCP/IPv4) Properties dialog appears.

d. Configure with the following details:

IPaddress for PC: 192.168.210.2

Subnet: 255.255.255.0

Gateway: 192.168.210.1

2. Connect the PC's Ethernet port to the ETH1 Ethernet port on your AnywhereUSB Plus device.

3. Open a telnet session and connect to the AnywhereUSB Plus device at the IP address of

192.168.210.1.

4. Log into the device:

Username: admin

Password: The default unique password for your device is printed on the device label.

5. At the shell prompt, type:

# rm /etc/config/.nocrypt

# flatfsd -i

This will re-enable encryption and leave the device at its factory default setting.
