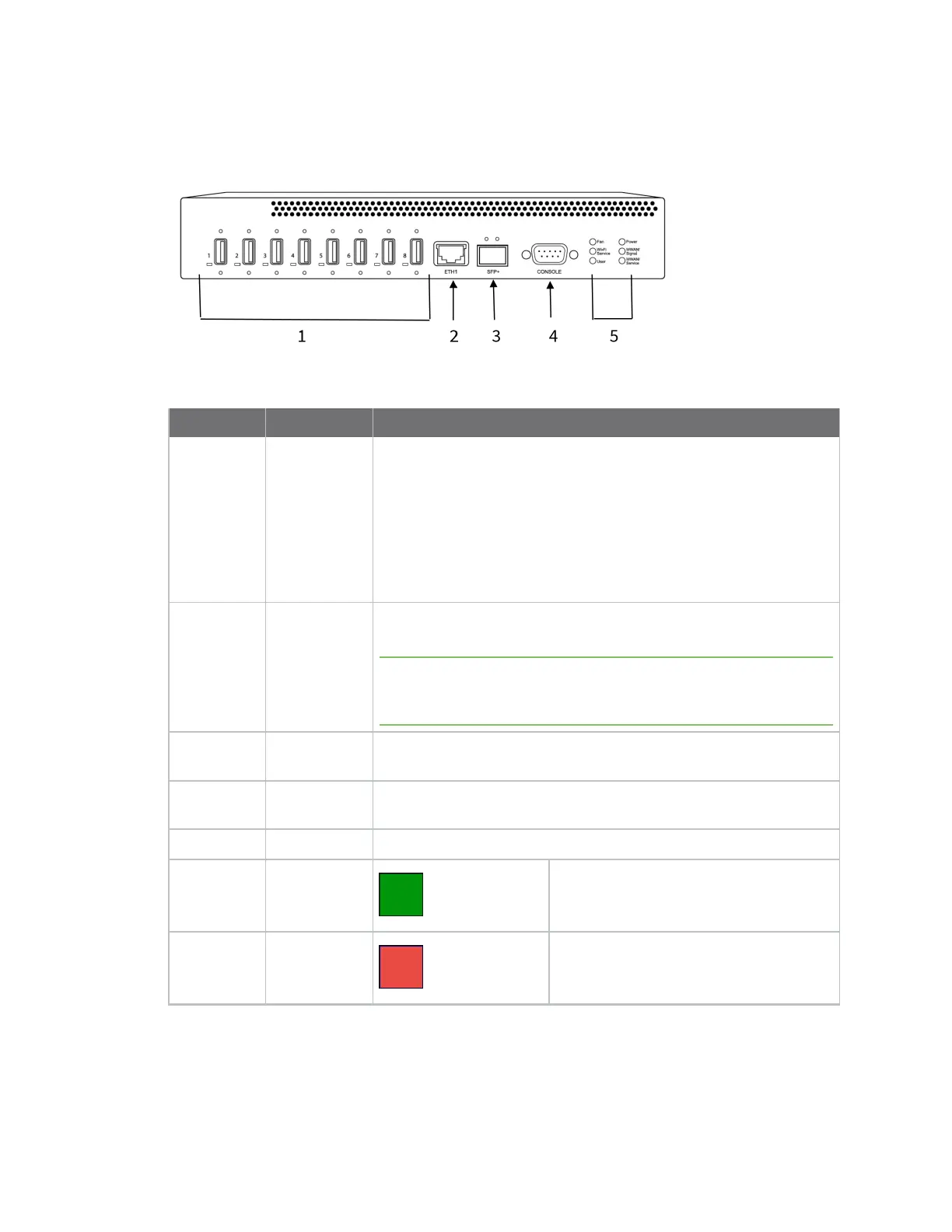

AnywhereUSB 8 Plus: Front panel
Item Name Description
1
USB ports
and
LEDs
Group of 8 USB ports and LEDS. The USB port supports 1.1, 2.0, and
3.1 USB devices.
The LED illuminates as follows, based on the speed of the USB
device:
n
Yellow: 1.1 (Full speed)
n
Green: 2.0 (High speed)
n
Blue: 3.1 (Super speed)
2
ETH1 Connect a Cat 7 STP Ethernet cable. See Step 5: Connect to the
device using an Ethernet LAN connection.
Note Digi recommends that you use either the Ethernet cable or the
SFP+ module. If both the Ethernet cable and the SFP+ module are
connected, the SFP+ module will have priority.
3
SFP+ Connect an SFP transceiver module for fiber connection, such as
Finisar Network FTLX8574D3BCL SFP+.
4
DB9 console Used to access a console using the RS232 DTEinterface.
See
5
Fan LED The LED shows the status of the fan:
Solid green
Fan is running within normal range of use
Solid red
Fan slows down or the Hub is overheating
To Next Page
