Monitoring intelliFlow

AnywhereUSB® Plus User Guide

443

Use intelliFlow to display average CPU and RAMusage

This procedure is only available from the WebUI.

To display display average CPU and RAMusage:

ÉWebUI

1. Log into the AnywhereUSB Plus WebUI as a user with Admin access.

2. If you have not already done so, enable intelliFlow. See Enable intelliFlow.

3. From the menu, click Status > intelliFlow.

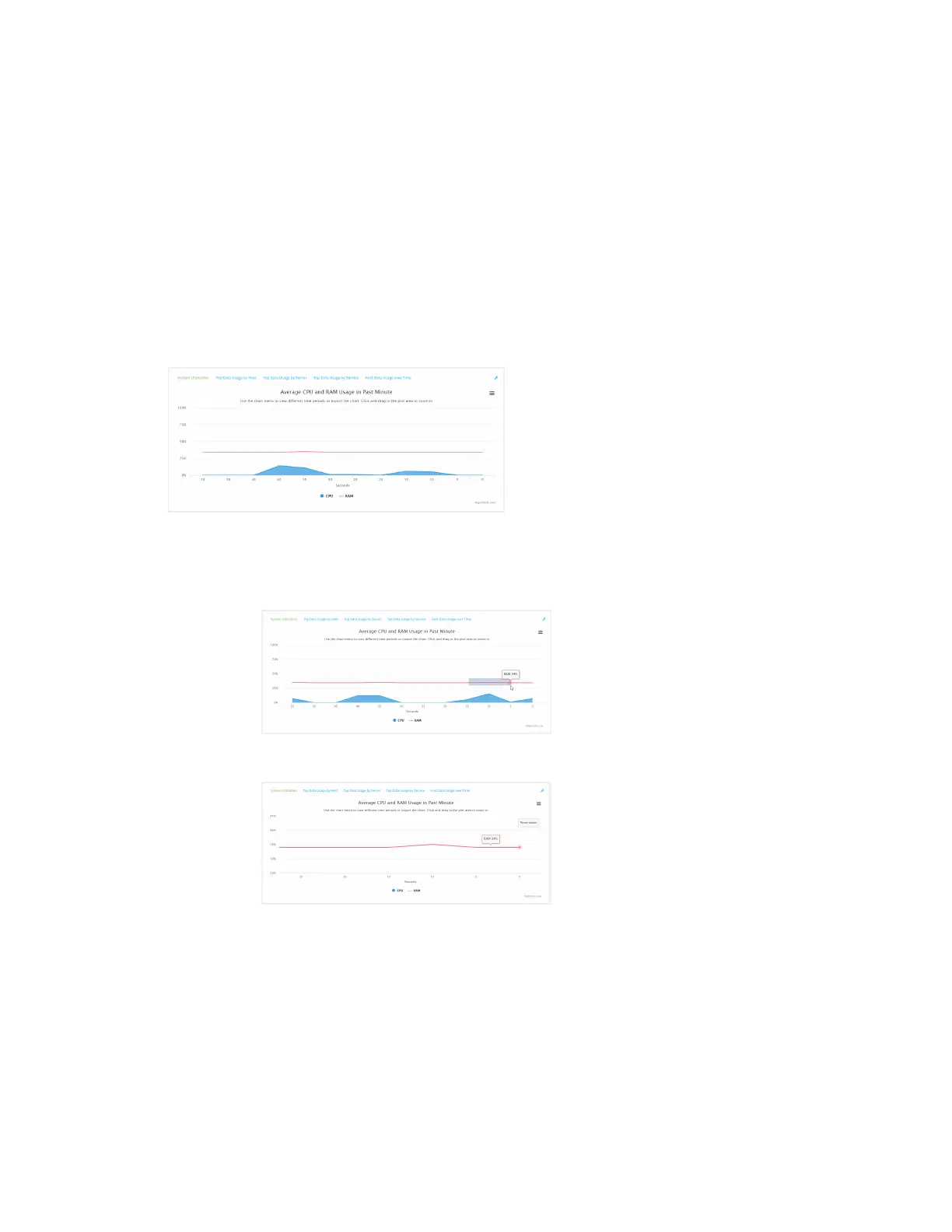

The System Utilisation chart is displayed:

Display more granular information:

1. Click and drag over an area in the chart to zoom into that area and provide more

granular information.

2. Release to display the selected portion of the chart:
