Hardware Specifications
80 Chapter 13

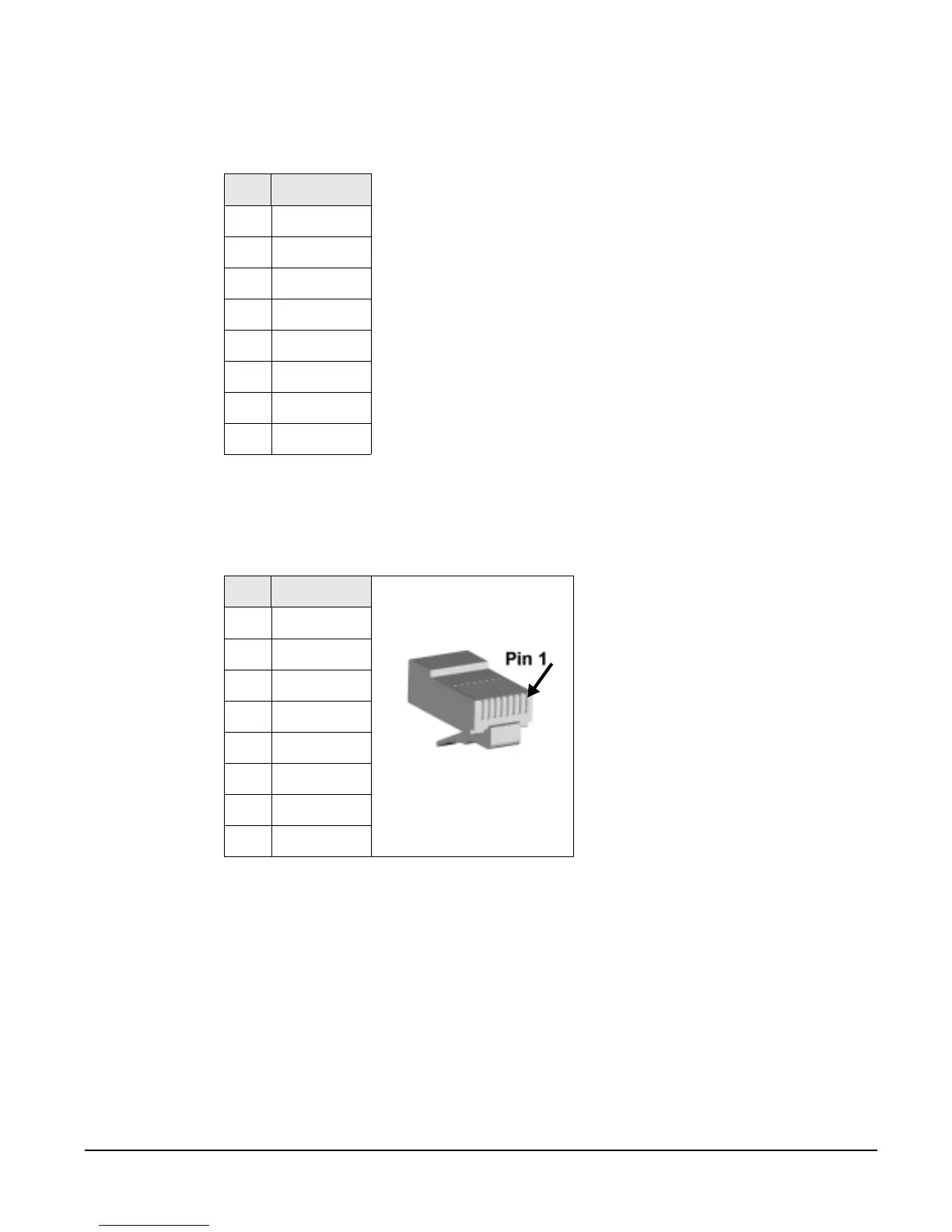

Serial Port Pinouts
The Digi CM uses an RJ45 connector for serial ports. The pin assignment of
the RJ45 connector for serial ports is summarized below. Each pin has a
function according to the serial communication type configuration.
*inbound signal can also be used as a second ground
Ethernet Pinouts
The Digi CM uses a standard Ethernet connector which is a shielded
connector compliant with AT&T 258 specifications.
Pin Description
1CTS
2DSR
3RxD
4GND
5 DCD*
6TxD
7DTR
8RTS
Pin Description
1Tx+
2Tx-
3Rx+
4NC
5NC
6Rx-
7NC
8NC
