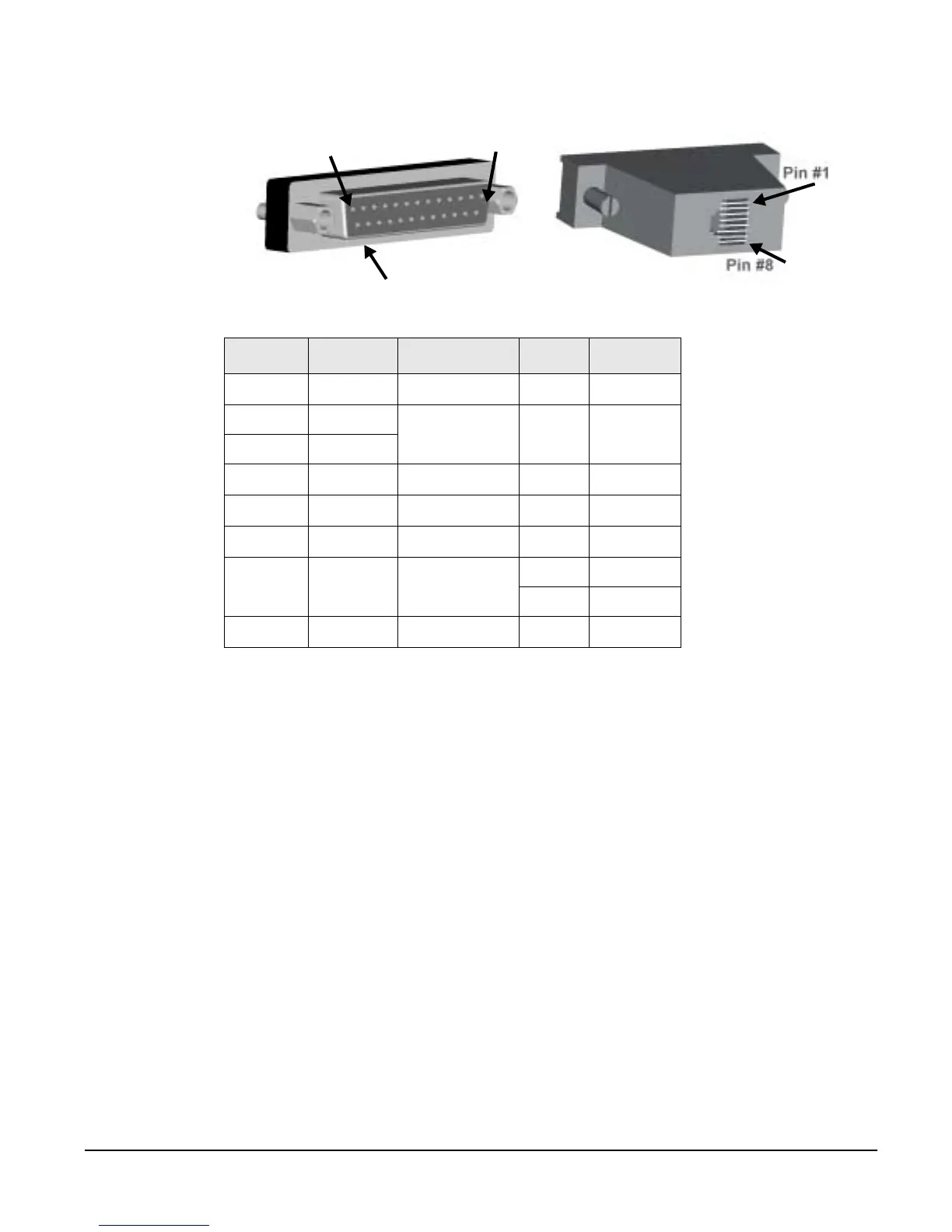

DB-25 Female Console Adapter
(Digi P/N 76000673)
DB-25 Female to RJ-45 Pin Assignments
RJ-45 Signal DB-25M Signal
1CTS
connected to
4RTS
2DSR
connected to
20 DTR
5DCD
3RxD
connected to
2TxD
4 GND
connected to
7 GND
6TxD
connected to
3RxD
7DTR
connected to
6DCD
8DSR
8RTS
connected to
5CTS
Pin#13
Pin #1
Pin#25
