Digi CM 32 - DB-9 Female Console Adapter

Hardware Information
Chapter 13 83

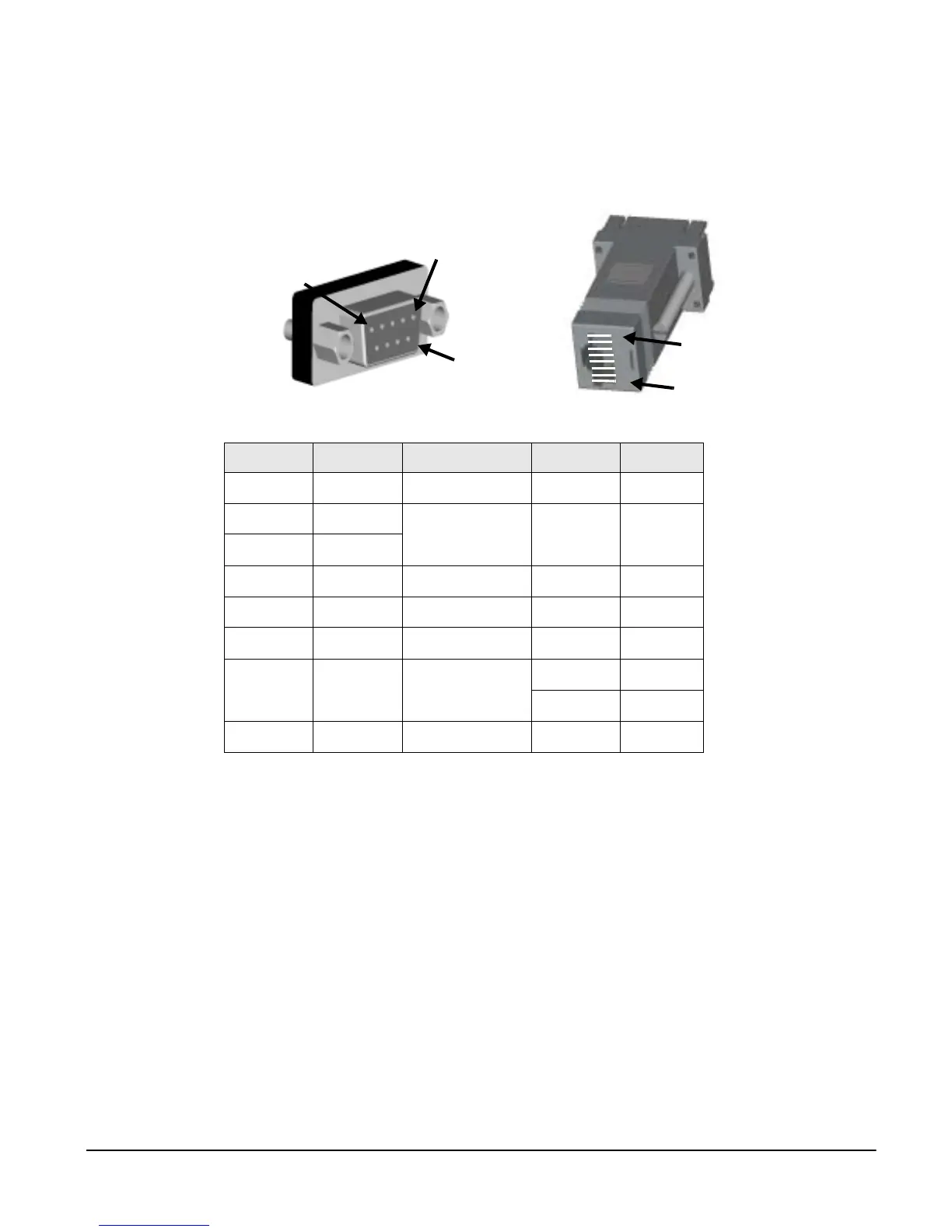

DB-9 Female Console Adapter
(Digi P/N 76000671)
DB-9 Female to RJ-45 Pin Assignments
RJ-45 Signal DB-9F Signal
1 CTS connected to 7 RTS
2DSR
connected to 4 DTR
5DCD
3 RxD connected to 3 TxD
4 GND connected to 5 GND
6 TxD connected tot 2 RxD
7 DTR connected to
1 DCD
6DSR
8 RTS connected to 8 CTS
Pin #5
Pin #1
Pin #6
Pin #1
Pin #8
