Cable Adapters
The Digi CM unit is packaged with four cable adapters. The following
illustrations depict the pinouts for the cable adapters. Additional adapters can
be purchased from Digi in quantities of 8.

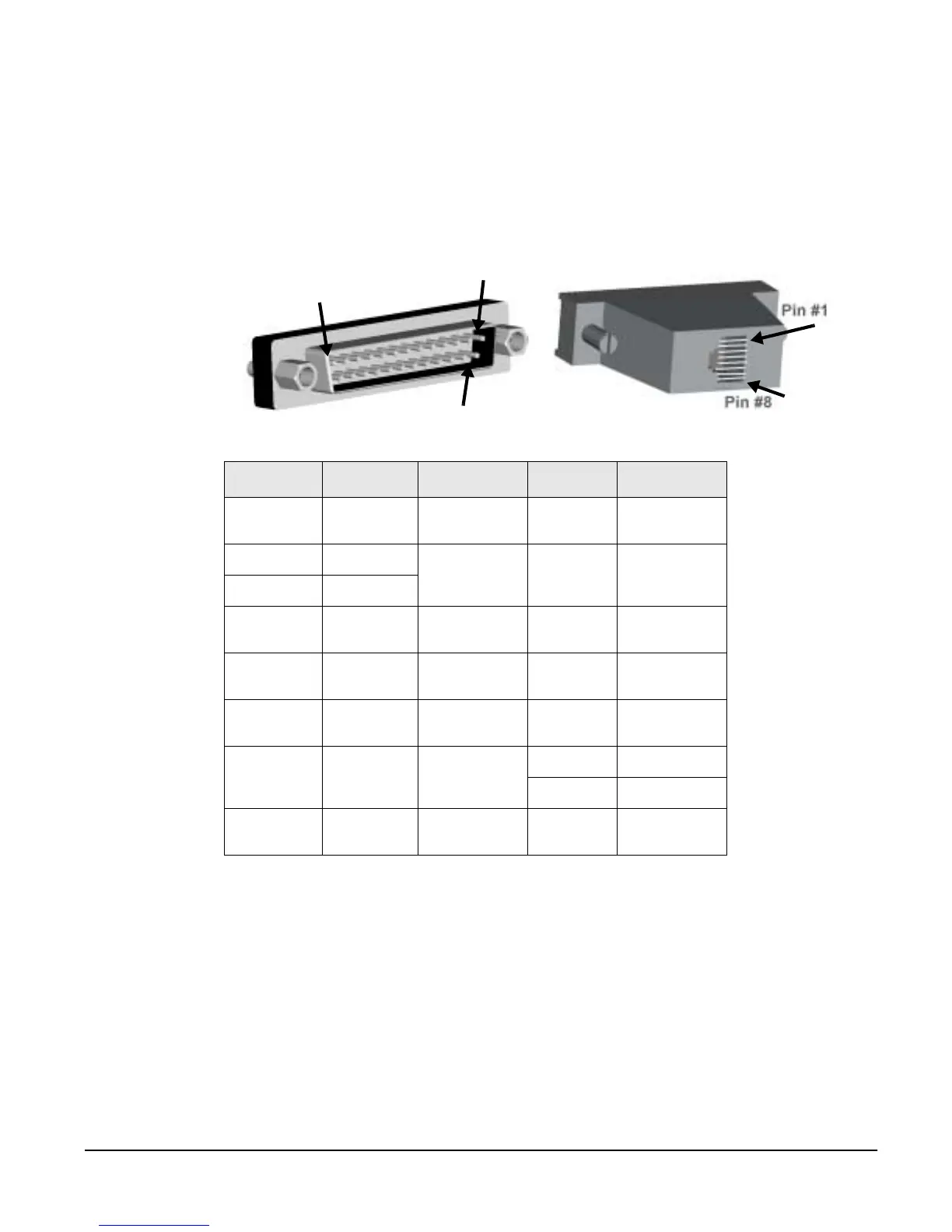

DB-25 Male Console Adapter
(Digi P/N 76000672)
DB-25 Male to RJ-45 Connector Pin Assignments
RJ-45 Signal DB-25M Signal
1CTS
connected
to
4RTS
2DSR
connected
to
20 DTR
5 DCD
3RxD
connected
to
2TxD
4GND
connected
to
7GND
6TxD
connected
to
3RxD
7DTR
connected
to
6 DCD
8DSR
8RTS
connected
to
5CTS
Pin #1
Pin #13
Pin #25
