Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
Ensure that there is at least 70
cm (28 in) of space between the
ventilation outlets and any wall,
and 50 cm (20 in) on all other
sides.
If ceiling mounting, ensure there
is 30 cm (12 in) of space between
the projector and ceiling.
Backup safety chains or wires
should always be used with
ceiling mount installations.
Do not stack the projectors.
Do not tilt the projector more than
±10° from side to side when in
use, as this may cause serious
lamp failure, damage the lamp
module and cause extra cost on
replacement.
±10°
±360°
±10°
Desktop
Ceiling

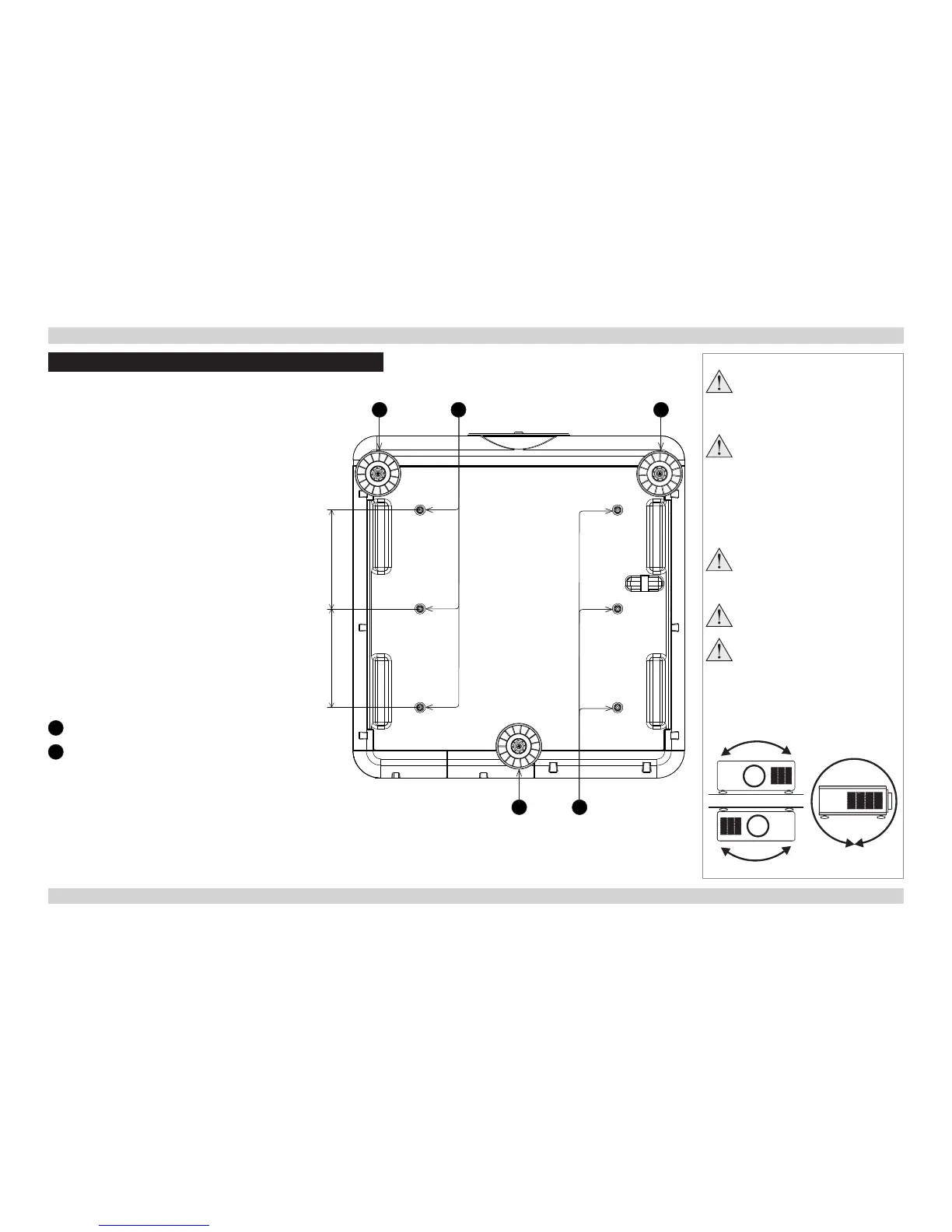

Positioning The Screen And Projector
1. Install the screen, ensuring that it is in the best
position for viewing by your audience.
2. Mount the projector, ensuring that it is at a suitable
distance from the screen for the image to ll the
screen. Set the adjustable feet so that the projector
is level, and perpendicular to the screen.
The drawing shows the positions of the feet for table
mounting, and the xing holes for ceiling mounting.
1
Three adjustable feet
2
Six M4 holes for ceiling mount
The screws should not penetrate more than 15
mm into the body of the projector.
150 mm150 mm
1 2 1
1 2
