Digital Projection E-Vision 7500 Series WIRING DETAILS Connection Guide
28
Rev D July 2014

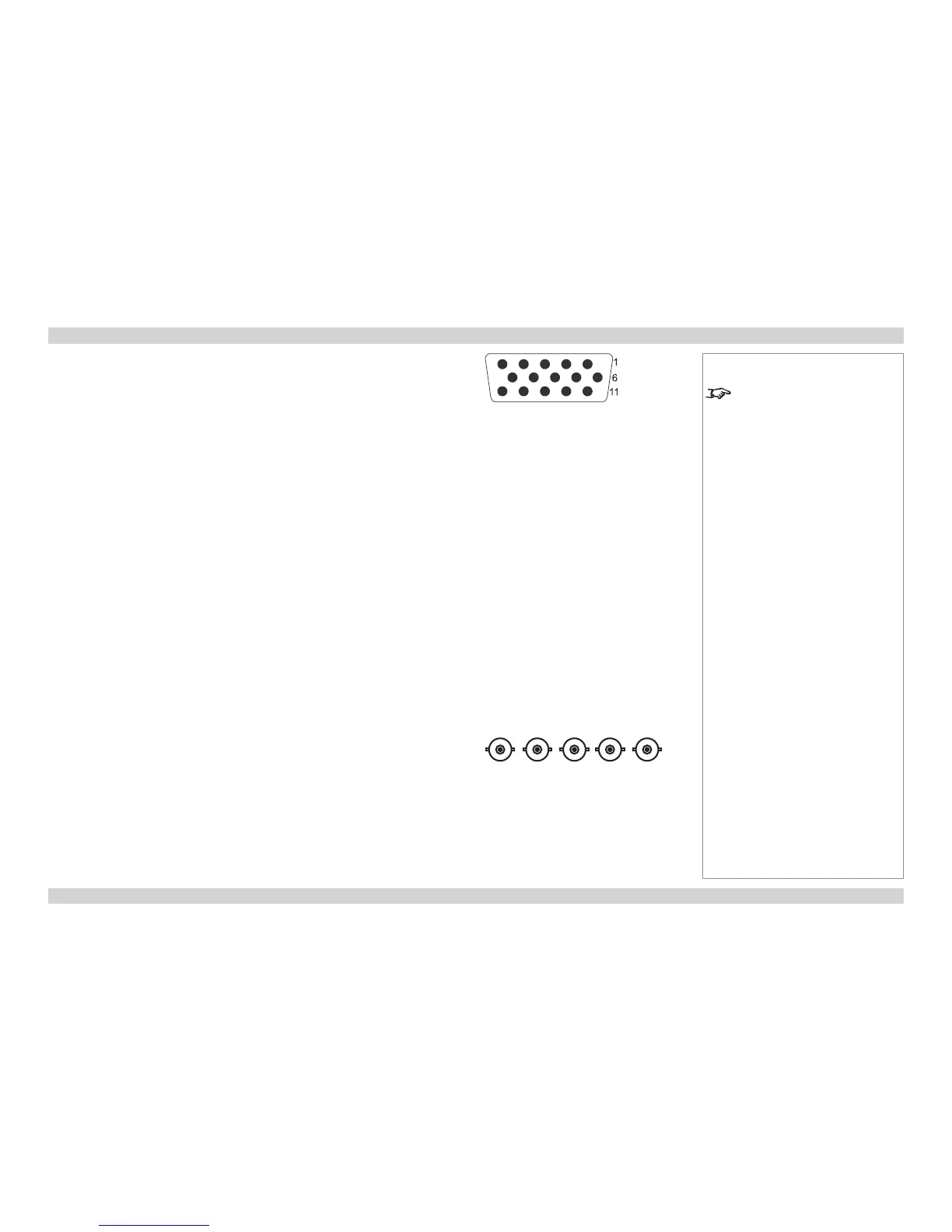

VGA
15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5v
10 Digital Ground (V Sync/DDC)
11 unused
12 SDA
13 H Sync
14 V Sync
15 SCL
COMPONENT
5 x 75 ohm BNC
RGBHV RGsB YPbPr YCbCr
Green Green + Sync Y Y
Blue Blue Pb Cb
Red Red Pr Cr
Hsync
Vsync
pin view of female connector
Notes
For full details of all input settings,
see the INPUT menu in the
Operating Guide.
Pb/Cb Y Pr/Cr
Blue Green Red
H V
