Digital Projection E-Vision 7500 Series User Manual

Digital Projection E-Vision 7500 Series WIRING DETAILS Connection Guide
29
Rev D July 2014

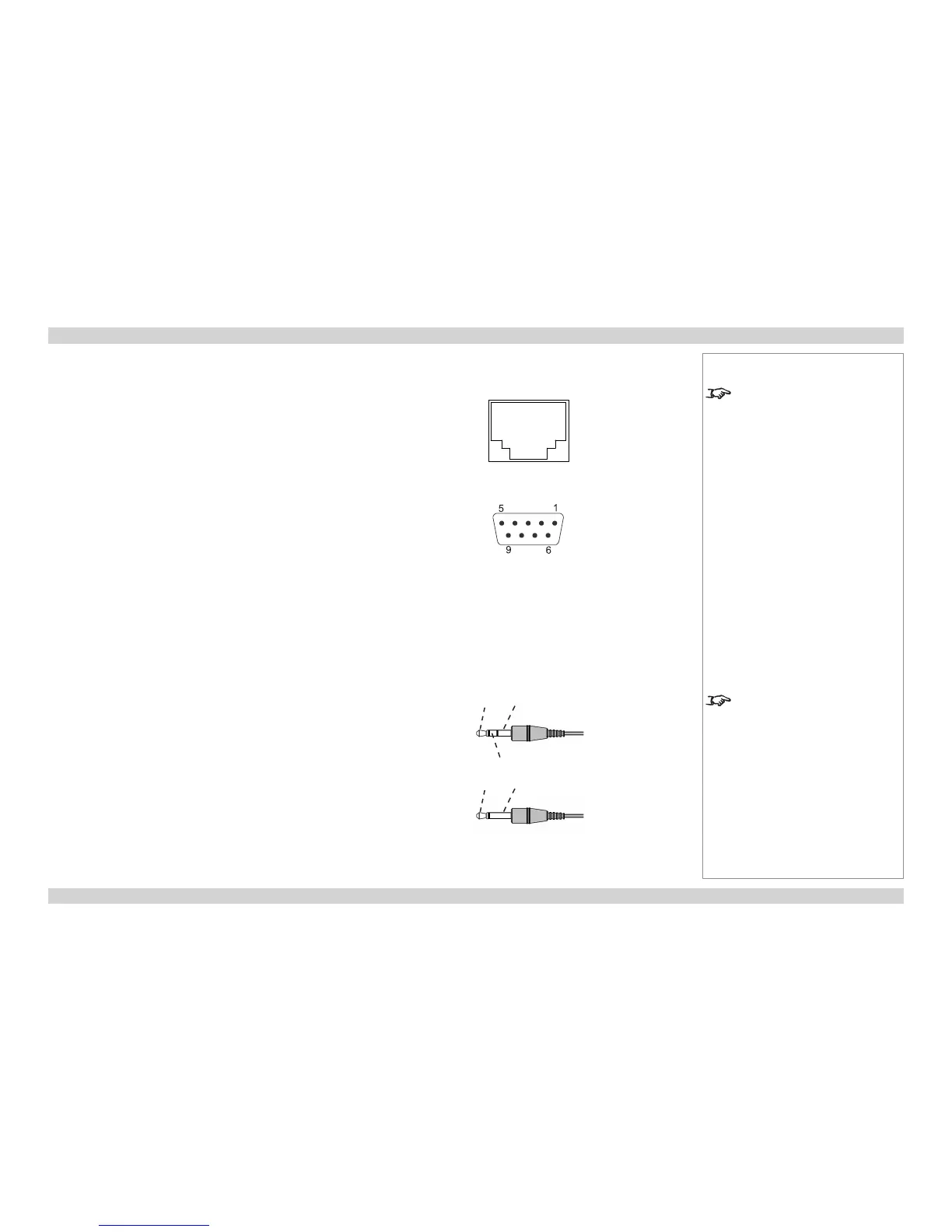

Control connections
LAN connection
RJ45 socket
RS232 Serial control input
1 unused
2 Received Data (RX)
3 Transmitted Data (TX)
4 unused
5 Signal Ground
6 unused
7 unused
8 unused
9 unused
Wired Remote control connection
3.5mm mini jack
Tip Not connected
Ring Signal
Sleeve Ground
Screen Trigger output
3.5mm mini jack
Tip Signal
Sleeve Ground
Notes
For full details of all control settings,
see the CONTROL menu in the
Operating Guide.
Note that plugging in the remote
control cable will disable the infra-
red.
LAN connection
pin view of female connector
Sleeve
Tip
Sleeve
Ring
Tip
