HYBRID Coater Service Manual ver1.1 Appendix E
149
See wiring diagram MHC-0200-0315, MHC-0200-0011, MHC-0200-0018 and MHC-0200-
0028 for more information.

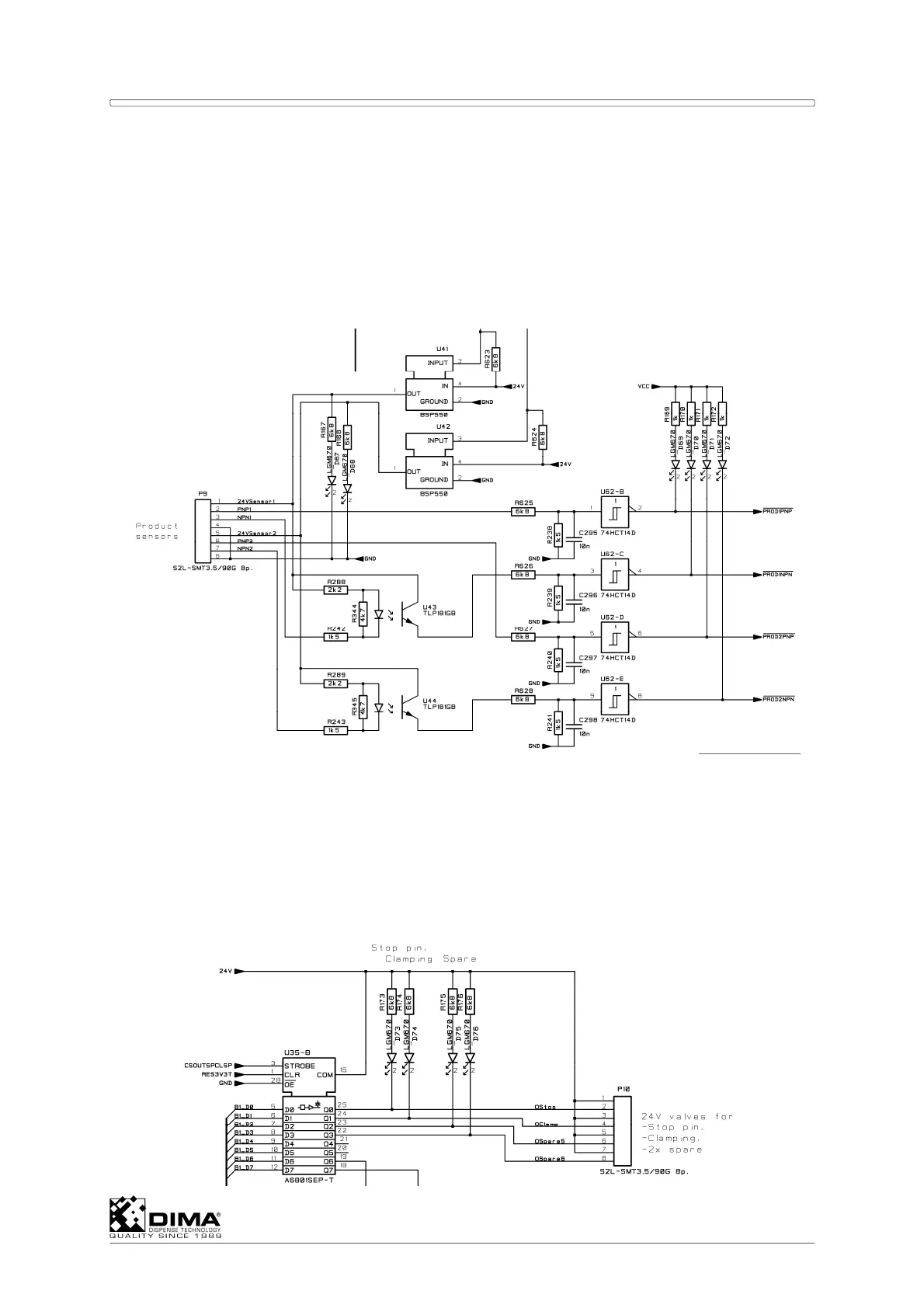

CONNECTOR P9 FOR PRODUCT SENSORS
These inputs are special because the 24Volt can be switched on-off by software. Also
sensors may be used which have a change over contact (PNP and NPN output). On this
connector 2 of such sensors can be used. When a conveyor is present inside the machine
input 1 is used for the product sensor.
See wiring diagram MHC-0200-0315 and drawings of the conveyor option for more
information.
CONNECTOR P10 FOR CONVEYOR OPTIONS AND SPARE
When a conveyor is present the 1
st
output is used to control the valve for the stopping. The
2
nd
one is used to control the valve for product clamping (if present at the conveyor). The last
2 outputs are not used at this moment. Each output exists of an so called open collector
output cable of switching up to 500mA.
