Appendix E HYBRID Coater Service Manual ver1.1
150
See wiring diagram MHC-0200-0315 and drawings of the conveyor option for more
information.

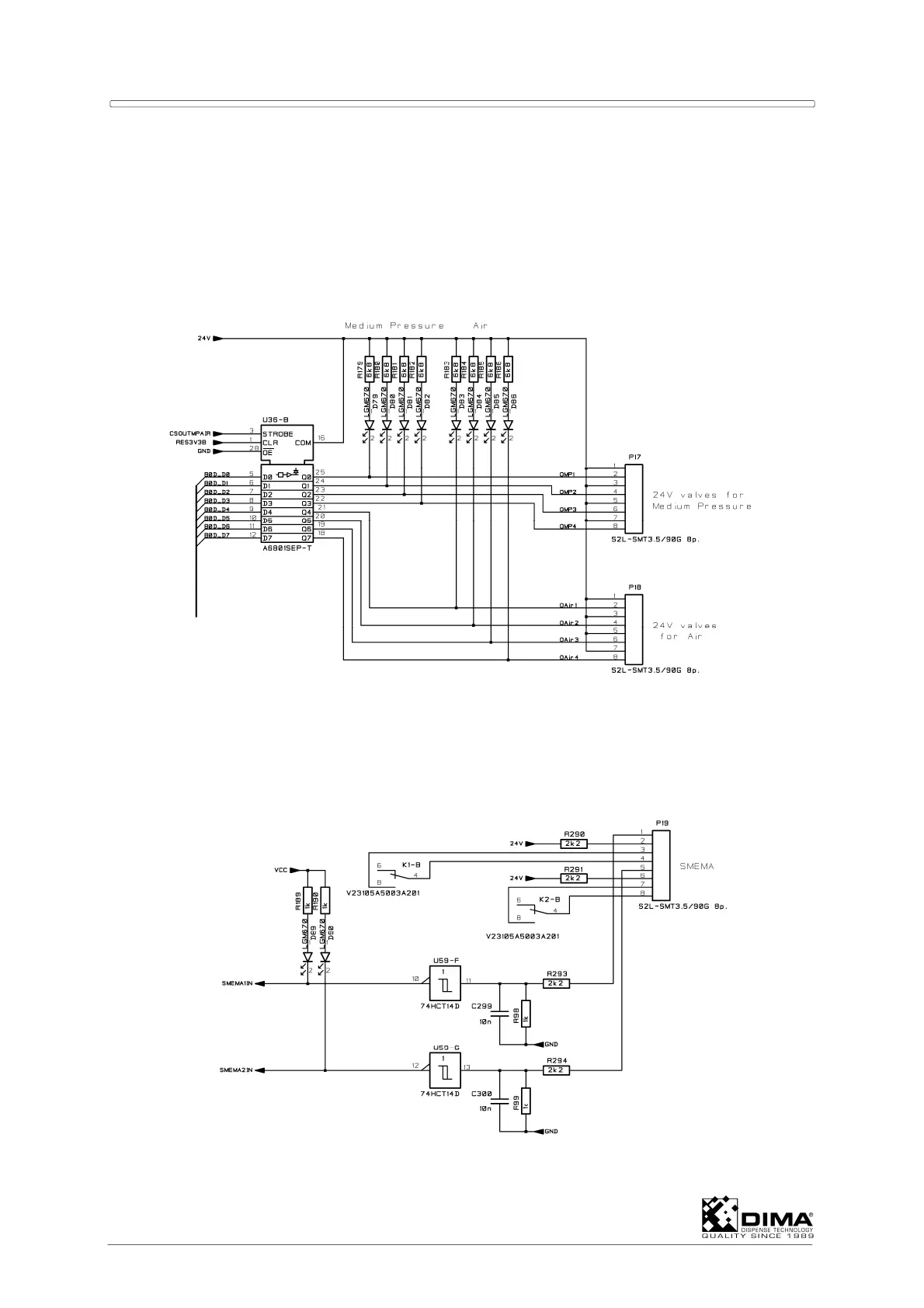

CONNECTORS P17 AND P18 FOR MEDIUM PRESSURE AND AIR
Connector P17 and P18 are used to controlling the valves which enable the pressure on the
medium or for the atomizing air. Both connector P17 and P18 can be used for both functions.
Each output exists of an so called open collector output cable of switching up to 500mA.
See wiring diagram MHC-0200-0315 for more information.
CONNECTOR P19 FOR SMEMA
Below figure shows the circuit used for the SMEMA.
