HYBRID Coater Service Manual ver1.1 Appendix E
151
Cables KHC-0100-0111 and KHC-0100-0211 are connected to above connector. The
SMEMA connectors on the other side are mounted to the mounting bracket on the backside
of the Electrical Compartment. See Appendix C of the machine reference manual for more
information.
See wiring diagram MHC-0200-0315 and drawings of the conveyor option for more
information.

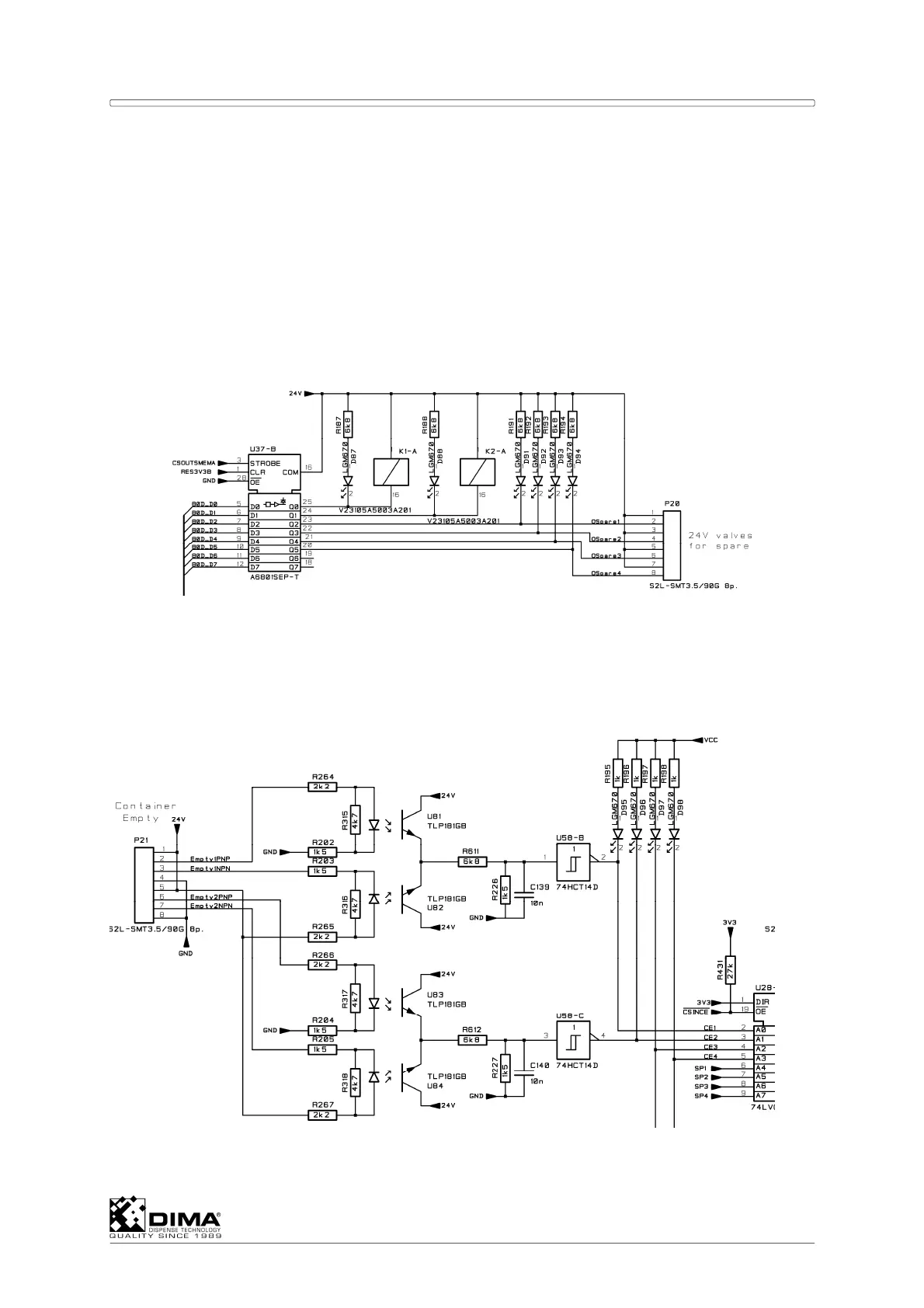

CONNECTOR P20 FOR SPARE OUTPUTS
This connector is not used at this moment. Each output exists of an so called open collector
output cable of switching up to 500mA.
CONNECTORS P21-P26 FOR CONTAINER EMPTY, SPARE AND FLOW
These inputs are present to connect 24Volt sensors with PNP or NPN outputs. Connector
P23 is used for the connection of the flow detection switch. Because connectors P21 till P26
have the same input circuit only the circuit of connector P21 is shown.
See wiring diagram MHC-0200-0315 and MHC-0200-0002 for more information.
