INSTALLATION

25257 Issue 3 November 2013 6-5

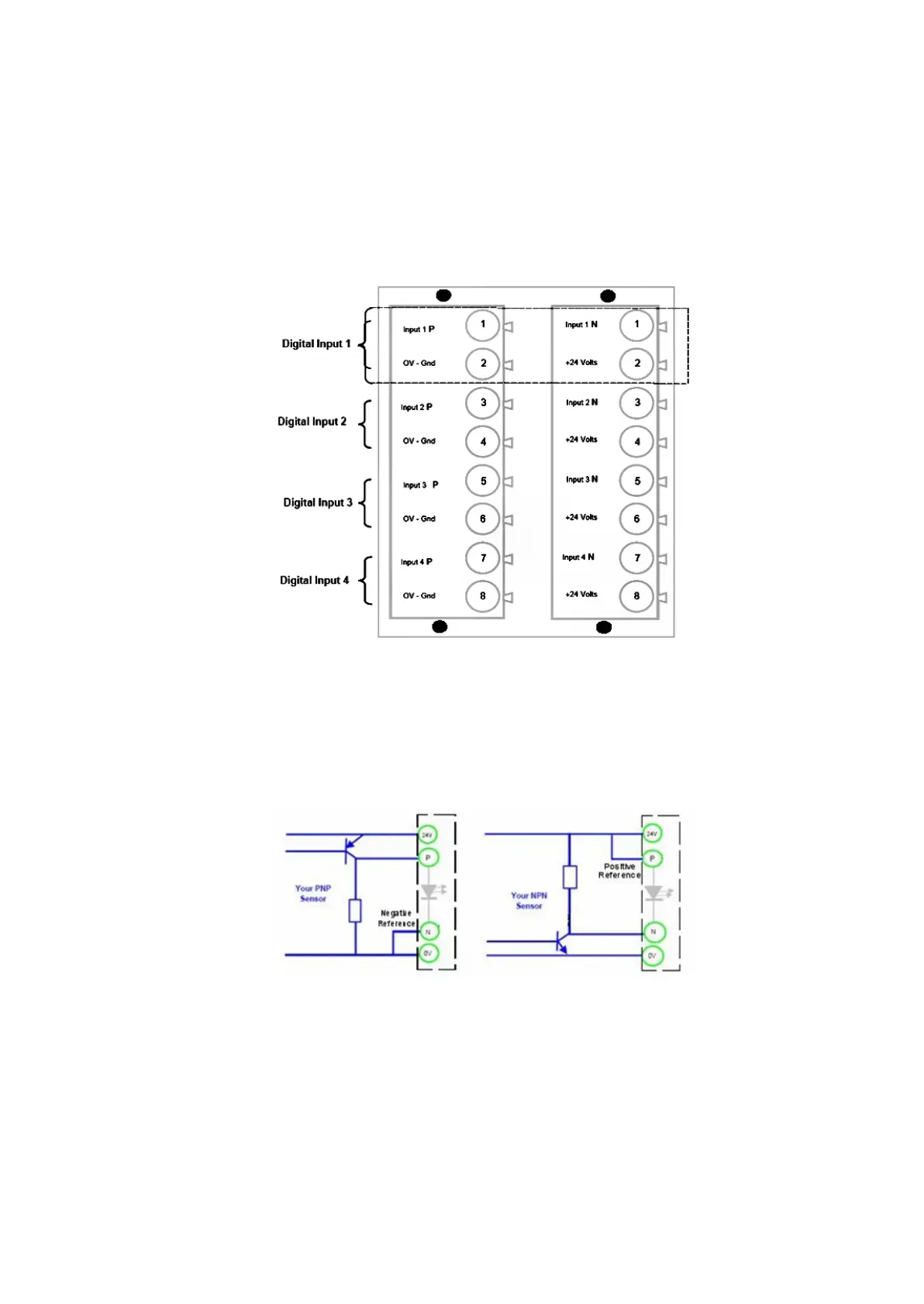

Sensor Connections

Sensor wired to Input Block 1.

Note: Connections depend on PNP or NPN type of sensor.

Input Block 1

PNP NPN
