OPERATION
3-6 25257 Issue 3 November 2013
GROUP DEFINITIONS
Service>Config>Groups
The printing parameters are associated with print groups and not each print
head. If more than one print head is in a group it must use the same encoder
and print go signals. It is therefore important to define the group set-up prior
to installation.

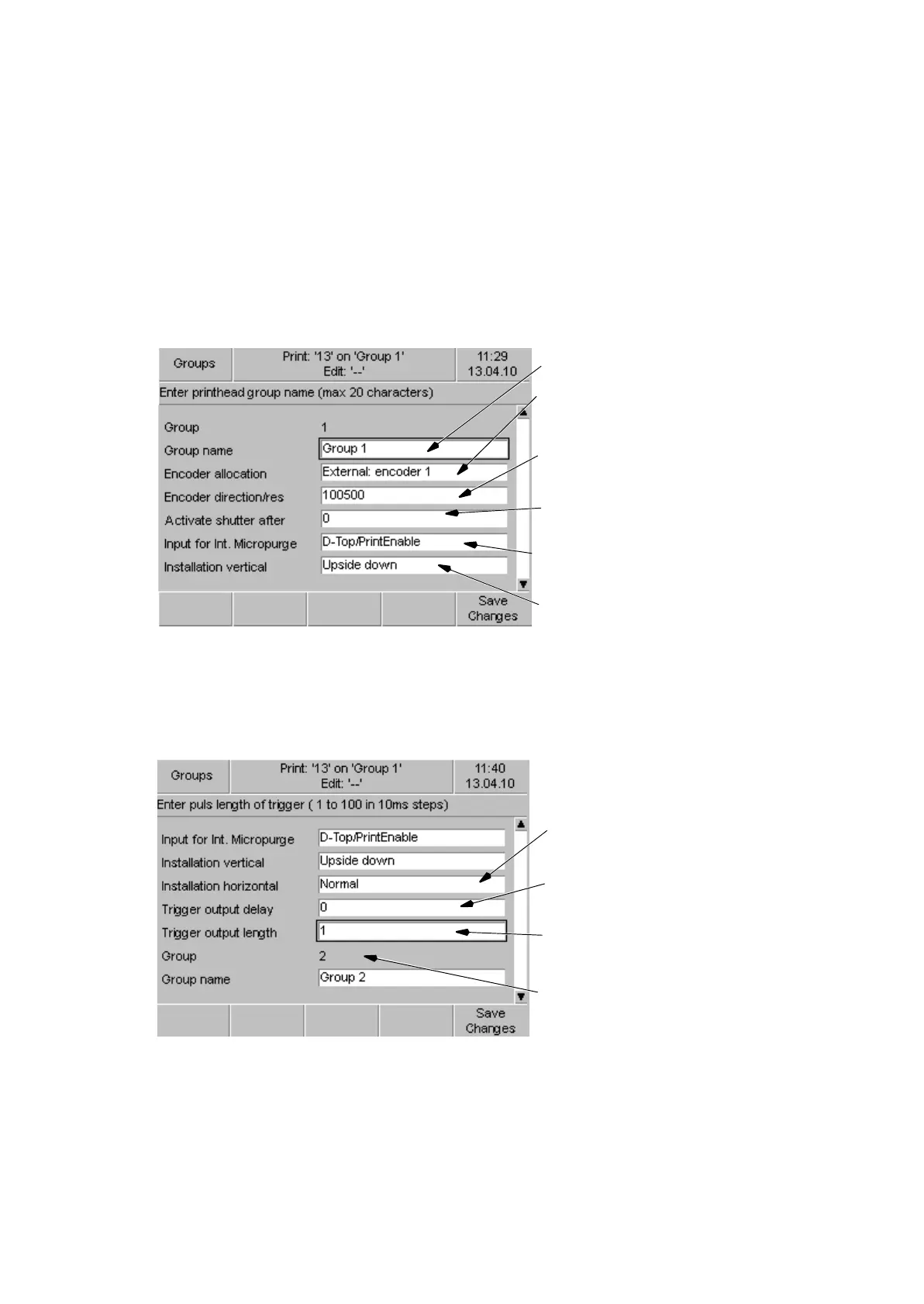

Go to Service>Config>Groups:
Note: The print direction can be changed by changing the encoder direction/
resolution to a positive or negative value. This value can be changed to the
encoder set-up using the onboard test message: z_encoder_ad.
Name of group
External encoder 1, 2 or
Internal
Encoder resolution and
direction. See note
below.
Shutter control time to
activate shutter
Input for purge function
if setup
Install settings. Refer to
“Group Print Head Setup”
on page 3-10
Trigger
delay
Continue configuring
other groups if required
Trigger length in
milliseconds
Install settings (Refer
to Group Print Head
set-up)
To Next Page
