INSTALLATION
25257 Issue 3 November 2013 6-15
Cartridge Installation in the Print Head
Take care when inserting the ink cartridge; ensure the movement when
positioning the cartridge down into the print head is in a controlled manner.
Forcibly pushing the cartridge against the electrical contact pins may break
them from their position on the circuit board and render them inoperable.

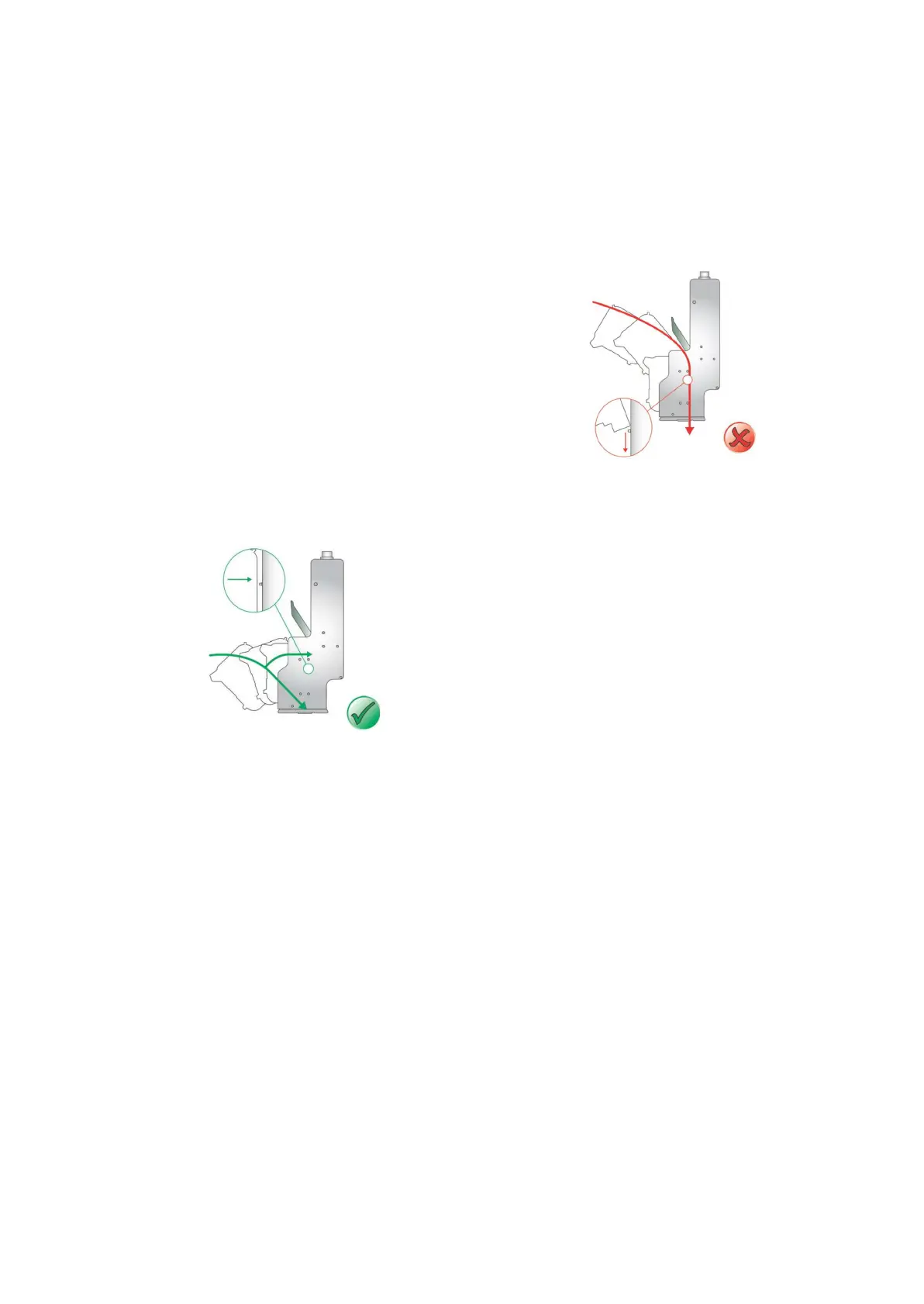

Cartridges should not be inserted, as shown to
the right, with the nozzle face high into the
print head and running down the back of the
print head.
Excessive downward force applied to the
cartridge when it is applied to the cartridge
when it hits the contact pins may cause damage.
Note: The greater the height at which the
cartridges are inserted, the greater the risk
the cartridge will catch the contact pins.
Cartridges inserted correctly, as shown to the left,
are not at risk of catching the print head contact
pins.
The nozzle face is inserted low down into the
Print Head in one movement and then positioned
against the back face of the print head in a second
movement.
Once in position the cartridge latch will draw the
cartridge against the electrical contact pins.
