OPERATION
3-50 25257 Issue 3 November 2013

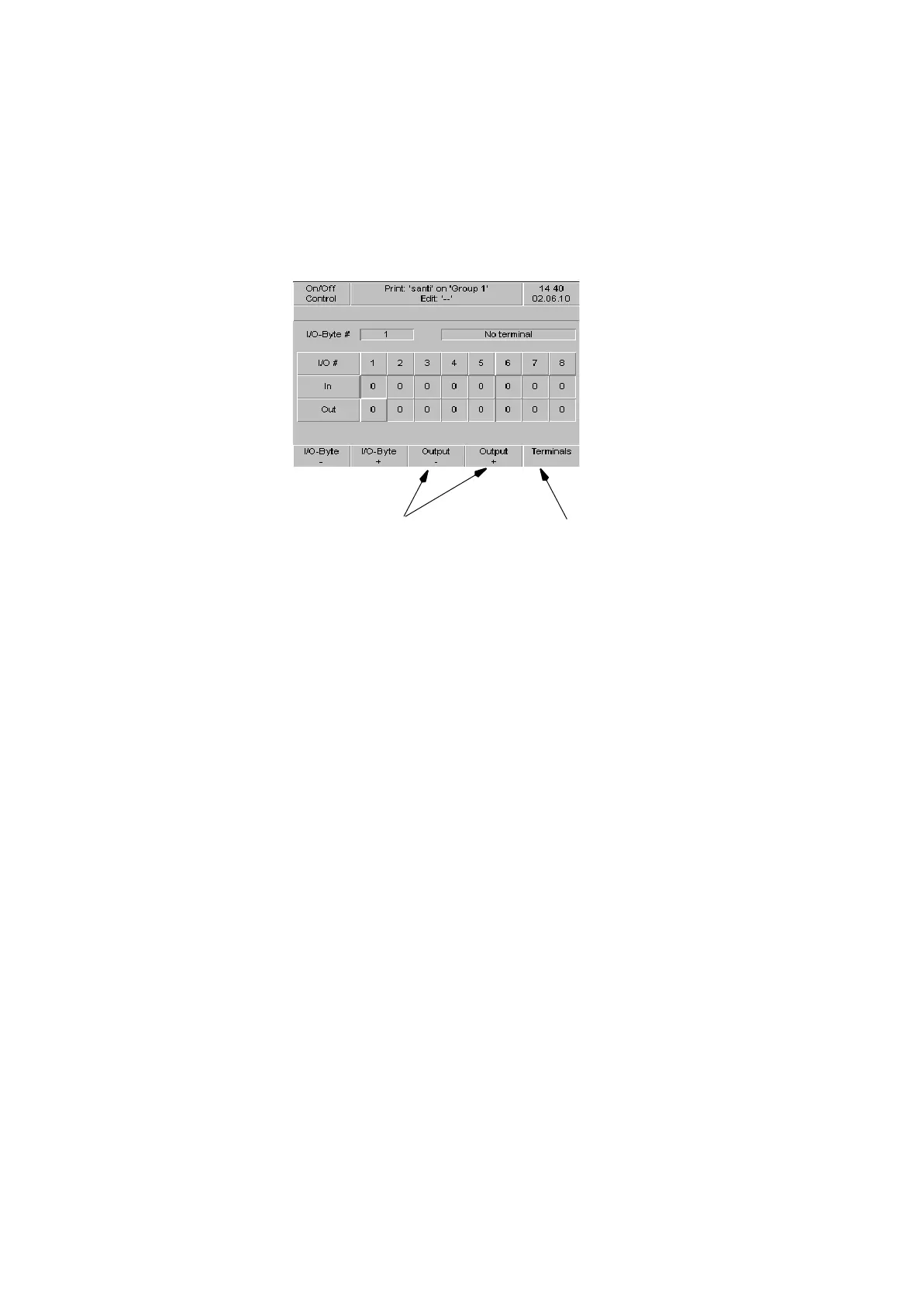

OBSERVING INPUT/OUTPUT OPERATION
The G-Series allows the user to observe the state of the inputs and outputs, by
showing their logic level.
Using the Output “-” or Output “+” buttons a particular output can be
selected and then driven high or low by pressing the terminals button.
Note: Very rapid Input/Output triggering may not be seen on this screen. In
this instance the LED’s next to the terminal blocks can be observed to
assess if an Input/Output is operational.
Move the output
selection up or down
Drives the output high
(1) or low (0)
To Next Page
