INST
ALLA
TION
6-16
25257 Issue 3 November 2013
ENCODER
Encoder Input
s
There ar
e 2 encoder input connecti
ons, ENC1 and ENC2 (RS422 standar
d).
Both connections ha
v
e the same
pin assignments as sho
wn belo
w
.
5
1
6
11
15
10

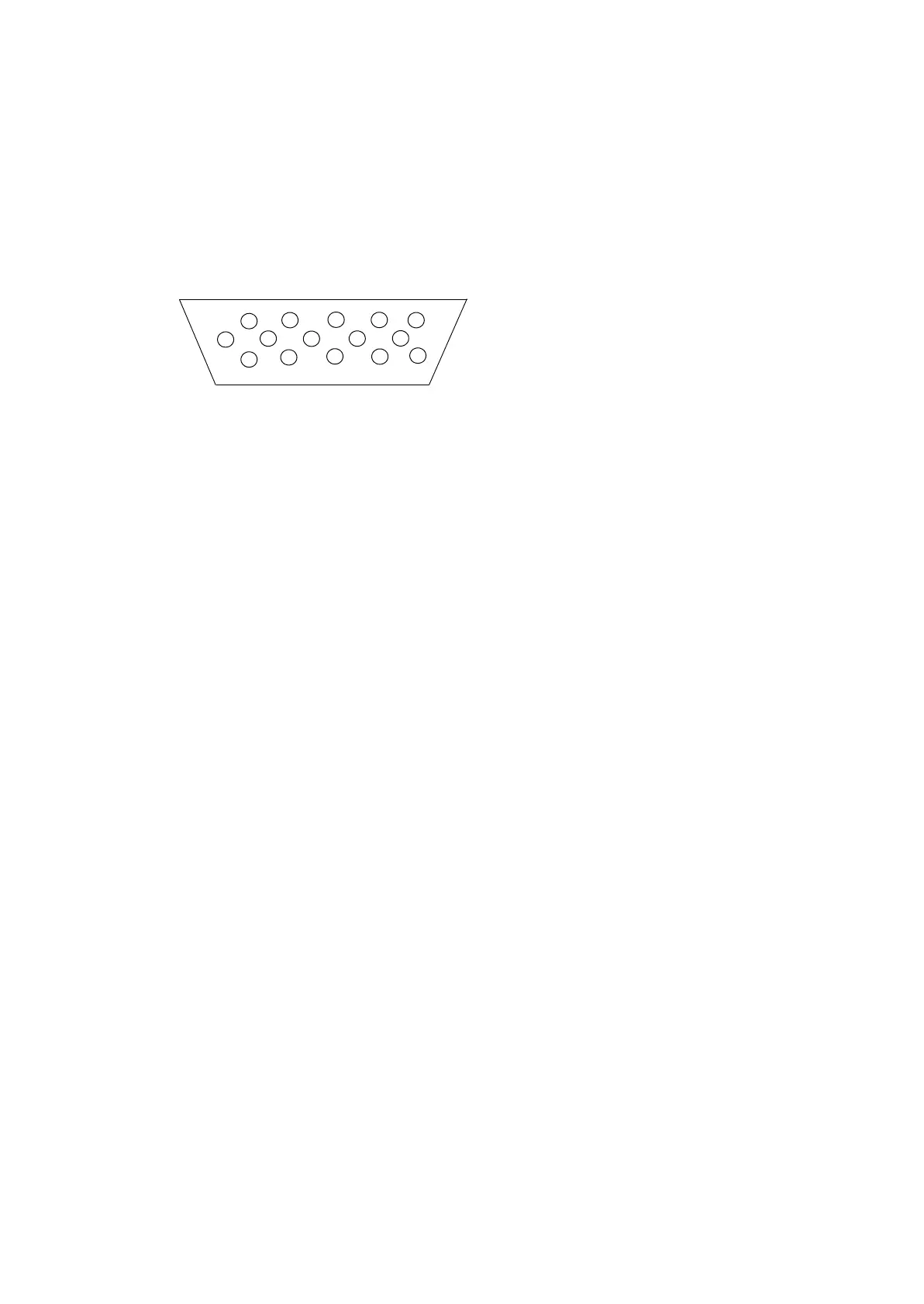

HD15 Female Connector
Pin No: Signal
1 -2 Not Used
3 Ground
4-5 Not Used
6 A
7 A-
8 B
9 B-
10 GND
11 +24V
12 +24V
13 GND
14-15 Not Used
139
141
Table of Contents
Part 1 : Health and Safety
9
Table of Contents
9
Introduction
11
Basic Requirements
11
Fire Risk
13
Spillages and Disposal
13
G-Series Symbols
14
Part 2 : Description
15
Introduction
17
General
17
G220I / G320I - Inside Rear Panel
20
Print Head
21
Configuration
22
Printer Specification
24
Print Resolution and Speed
25
External Connections
25
Environment
25
Controller
26
Screen Description
28
Keyboard, Option and Function Buttons
30
Navigation and Data Entry
30
G130I / G230I Buttons
30
Start/Stop Button
30
Cursor and Edit Buttons
30
Function Button
31
Home
31
User Level
31
Alarms
31
Service
31
Ink Type
31
Message
32
Back Space
32
Escape (Esc)
32
Enter
32
Currency
32
Cap Shift
32
G220I / G320I Buttons
33
Start/Stop Button
33
Cursor and Edit Buttons
33
Function Button
33
View
33
User Level
33
Alarms
33
Service
34
Part 3 : Operation
35
Start-Up
37
Changing User Level
38
Passwords
38
Shut down
39
Group Definitions
40
Service>Config>Groups
40
Assign Groups
41
Automatic Cartridge Swap and Parallel Print
42
Group Print Head Setup
44
Printing Messages
48
Loading and Printing a Message from the Library
48
Printing a Message Loaded in a Group
49
Message Management
50
Global (Default) Message Print Definition
50
Local Message Print Definition
54
Creating a Message
55
Creating a New Field
55
1D Barcode Field Specific Parameters
62
Properties to Set for Linked Fields
65
Variable Text
66
Editing a Field
68
Deleting a Field
68
Copying a Field
68
Arranging Fields in Print Layout
68
Saving a Message
69
Opening and Editing a Message
69
Updating Firmware
70
Memory Card Directory Structure
71
Importing and Exporting
72
G130I / G230I
72
Messages
72
Logos
73
Fonts
74
System Files
74
G220I / G320I
75
Messages
75
Logos
76
Fonts
77
System Files
77
Counter Configuration
79
Entering Special Characters
81
Configuring Inputs
82
Configuring Outputs
83
Observing Input/Output Operation
84
Ink Details and Print Quality Optimisation
85
Cartridge Cleaning
85
Purging Options
89
Part 4 : Display Messages and Fault Finding
97
Printer Faults
99
Printing Process Messages
99
Control Process Messages
102
Cyclic Operation Messages
113
CAN-Bus Management Messages
114
General System Messages
116
Process Monitoring Messages
116
Error Signals During the Run-Up-Phase
117
Print Quality Faults
118
Part 6 : Installation
125
Installation
127
Unpacking
127
Typical Pack Contents - 2 Print Head System
127
Wiring the G220I / G320I Controller
128
Sensor Connections
129
Connecting External Dry Contact
130
Start Print from PLC
130
Printer Outputs
131
Wiring the G130I / G230I Controller
132
Inputs
132
Outputs
132
Grounding the Print Head Plate
133
Mounting the Printer
134
G130I / G230I Bracket Dimensions
135
External Cable Entry - G220I / G320I
136
Print Head Mount for 2-Axis Bracket
137
Low Profile Print Head
138
Cartridge Installation in the Print Head
139
Encoder
140
Encoder Inputs
140
Encoder Set-Up
141
G-View Browser
142
File Transfer
143
FTP for Standard Controller
143
Optional Alarm Beacon
144
Spares and Accessories
145
Introduction
149
OEM Board Description
149
Installation Dimensions
150
Board Specification
151
