DESCRIPTION
25257 Issue 3 November 2013 2-7
Print Head
The print head is connected to the controller unit via an electrical cable.
There are three cable lengths available: 5, 10 and 25 metres.
Depending on the controller unit a number of print head configurations are
possible:
• G130i can have up to 2 print heads in 2 print groups.
(two counters, no bitmaps or barcodes, limited to arial & courier fonts,
no external communications).
• G230i can have up to 2 print heads in 2 print groups
(no limitations on barcodes, fonts, counters, external communications).
• G220i and G320i can have up to 4 print heads
It is possible to stitch multiple print heads together to give a larger printed
message.
Both low profile and standard size print heads are available
Note: Consult Domino if stitched barcodes are required.

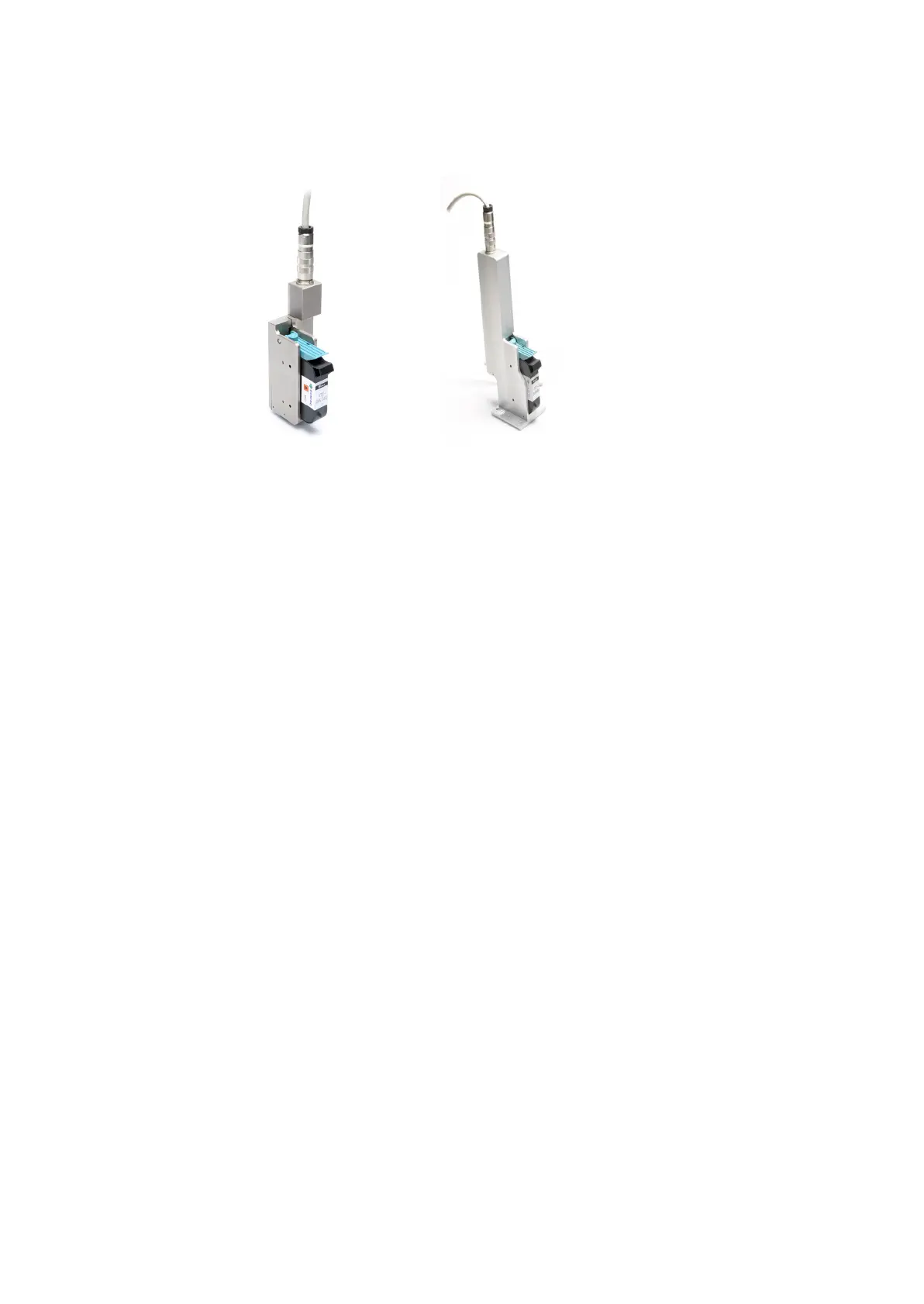

Low Profile
Single Print Head
Standard
Single Print Head
