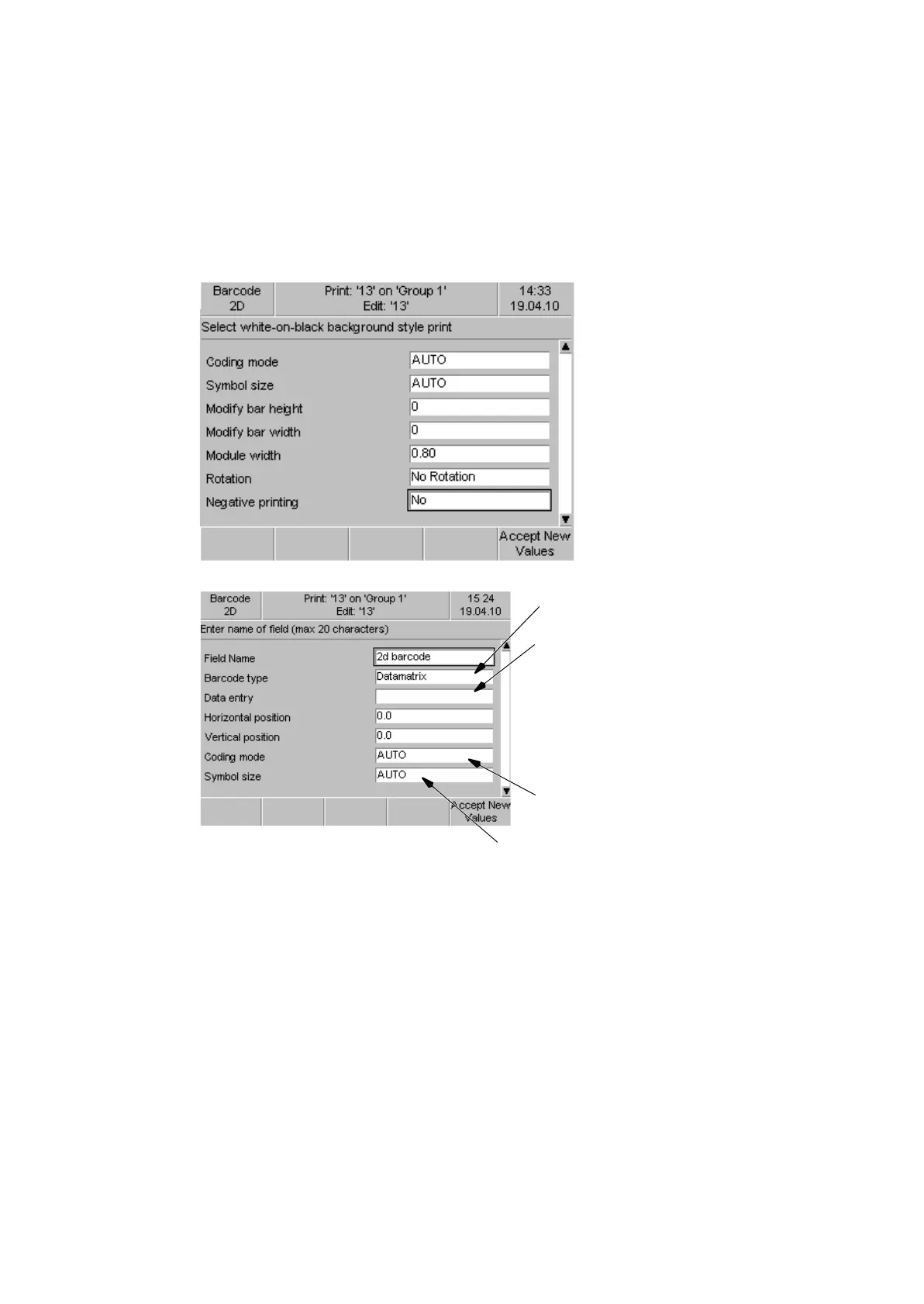

2D Barcode Field Specific Parameters
The available 2D barcode is DataMatrix (to EEC200 standard).
The G-Series also provides GS1-128 standard format that allows use of FNC1
group separators and application identifiers. Refer to “GS1-128 Barcodes” on
page 3-30 for a full description.
Barcode type
Depends on matrix size:
10x10: 6 digit/3 chars 1 bit
12x12:10 digits/6 chars/3 bits
14x14:16 digits/10 chars/6 bits
16x16: 24 digits/16 chars/10 bits
18x18: 36 digits/25 chars/16 bits
20x20: 44 digits/31 chars/20 bits
22x22: 60 digits/43 chars/28 bits
24x24: 72 digits/52 chars/34 bits
26x26: 88 digits/64 chars/42 bits
Coding mode:
Auto=optimised
Symbol size:
Auto=optimised
