Draytek Vigor2925 Series User Manual

Vigor2925 Series User’s Guide
159

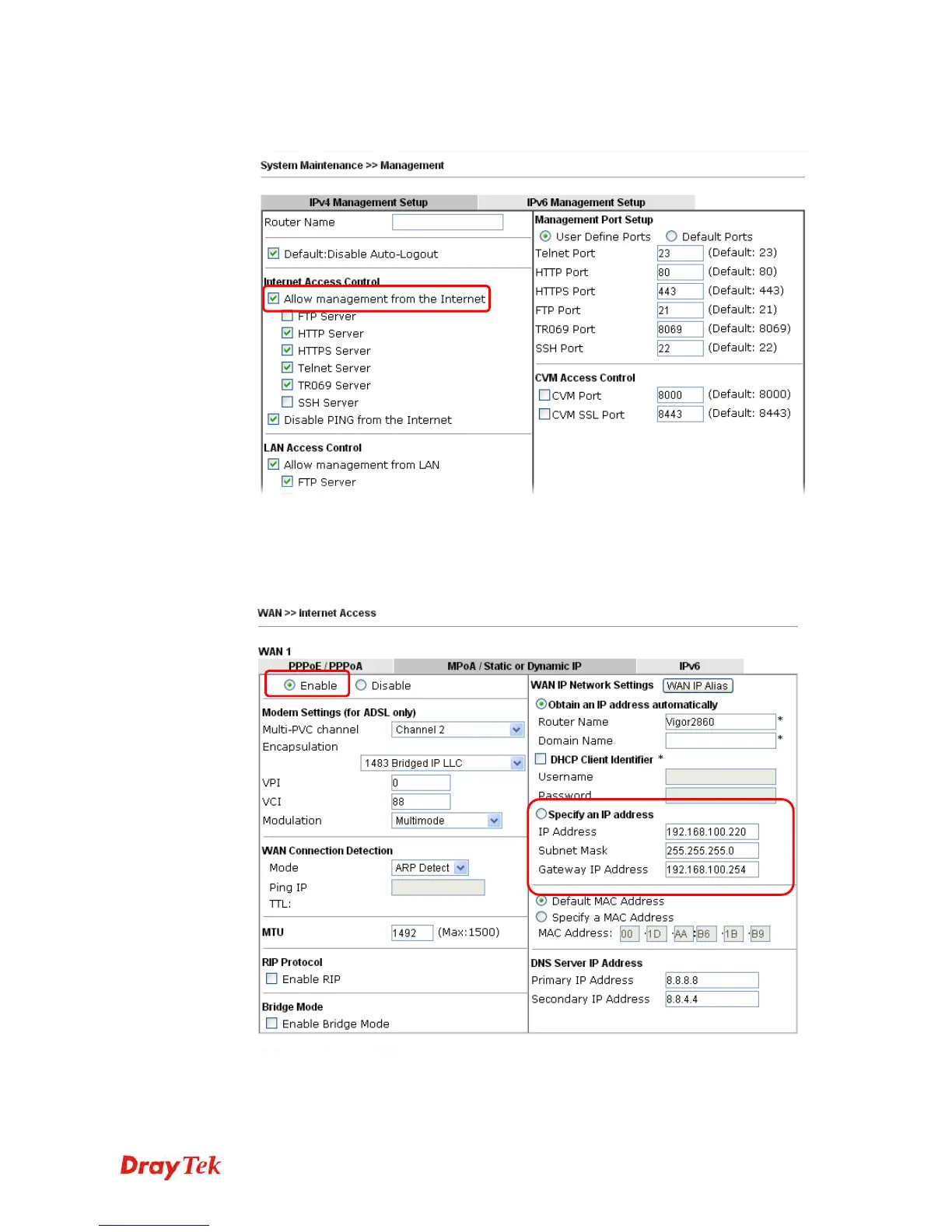

5. Check Allow management from the Internet to set management access control and
click OK.
6. Open WAN>>Internet Access. Use the drop down list of Access Mode on WAN1 to
select MPoA (RFC1483/2684). Then, click Details Page.
7. Click Specify an IP address. Type correct WAN IP address, subnet mask and gateway
IP address for your CPE. Then click OK.

Draytek Vigor2925 Series Specifications

General

WAN Ports	2 x Gigabit Ethernet
LAN Ports	4 x Gigabit Ethernet
USB Ports	2 x USB 2.0
VPN Tunnels	50
Humidity	10% to 90% non-condensing
VPN Throughput	200 Mbps
Load Balancing	Yes
QoS	Yes
VPN Protocols	IPSec, PPTP, L2TP, SSL
Firewall	SPI
Power Supply	12V DC
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C
Wireless	Optional (with Vigor2925ac)
