DS1103 Hardware Installation and Configuration March 2004
189
▲ ■■■■■■■■■■I
▲■■■■■■■■■■■■■■■
Master PPC UART RS422 Connector
(CP42)
The master PPC UART RS422 connector (CP42) is a 9-pin male Sub-D
connector located on the front of the connector panel.
N
The master PPC of the DS1103 supports one serial interface. In
RS232 mode the signals are available from the master PPC UART
RS232 connector (CP40). In RS422 mode the signals are available from
the master PPC UART RS422 connector (CP42). CP40 and CP42 are
mutually exclusive and cannot be used at the same time.

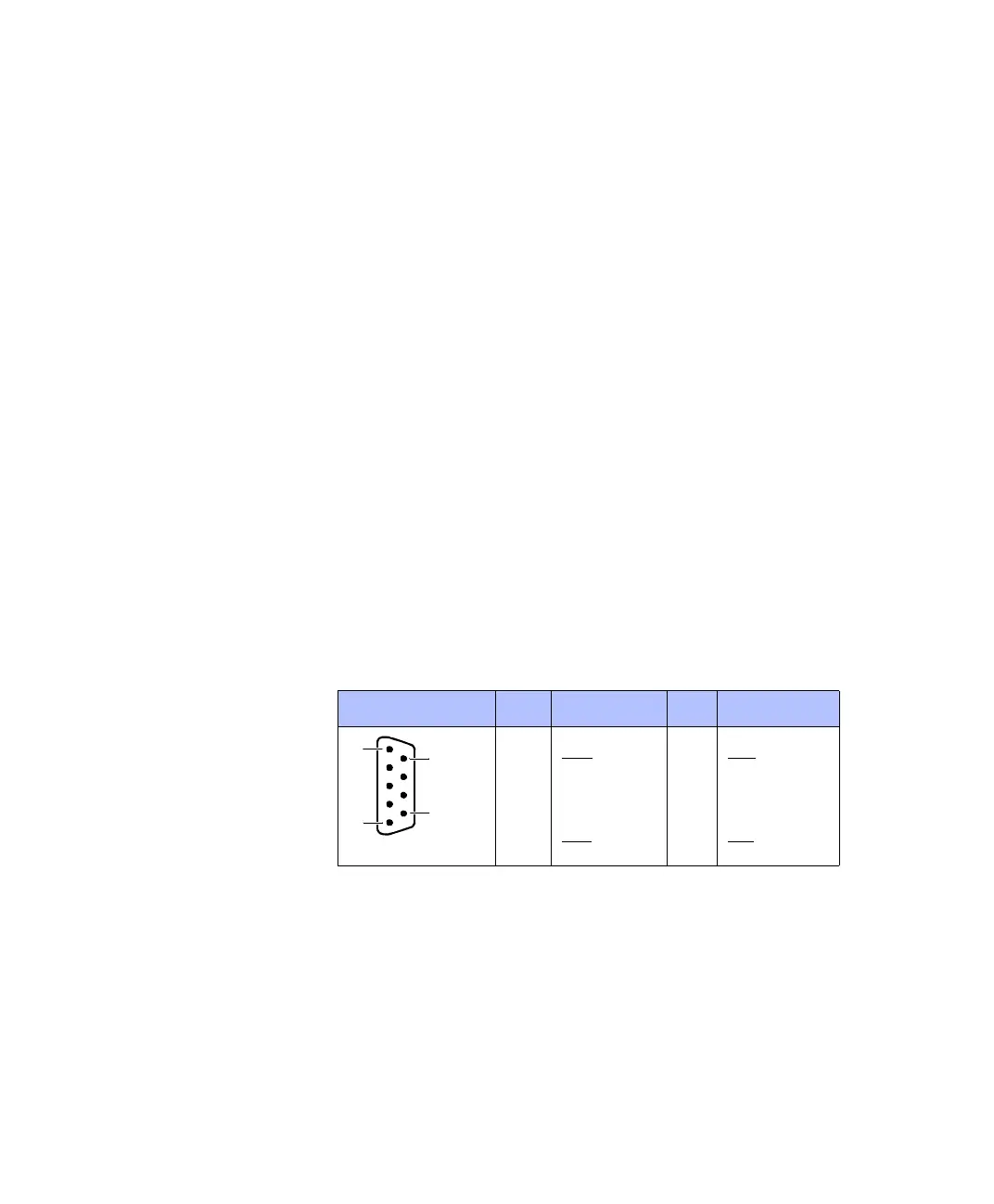

Pinout Because the pin numbering used for Sub-D connectors is not
standardized, the following figure shows the numbering scheme used
(front view).
C
Do not rely on the numbers written on Sub-D connectors.
Connector (CP42) Pin Signal Pin Signal
5GND
4RXD
9CTS
3RXD 8CTS
2TXD 7RTS
1TXD
6RTS
5
1
6
9
